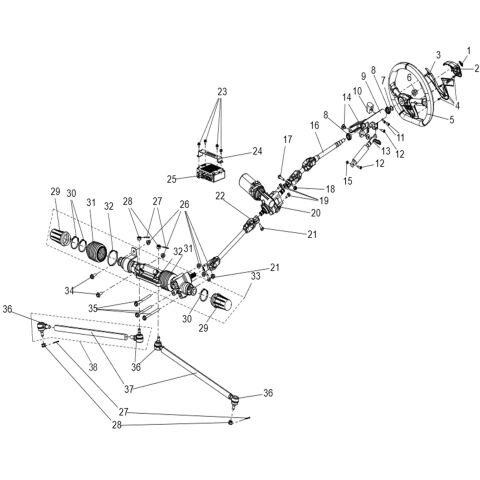

STEERING SYSTEM (NARROW VEHICLE VERSION)

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_239_UTV1000F-S3-23
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
3 S01F10701003 STEERING WHEEL DECORATIVE COVER（DARK SILVER GRAY）  1 € 23,22 € 28
ON REQUEST
23 Bolt M6×12 (Item nr. 23) GBT005789006 Bolt M6×12  4 € 2,18 € 3
IN STOCK
24 S01C00806002 STEERING CONTROLLER BRACKET  1 € 11,57 € 14
ON REQUEST
25 S05M06100002 EPS CONTROLLER  1 € 358,60 € 434
ON REQUEST
26 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 26) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  5 € 2,18 € 3
IN STOCK
27 GBT000091008 COTTER 3.2×25  4 € 2,48 € 3
ON REQUEST
28 GBT009459002 HEXAGON SLOTTED THIN NUT M12  4 € 2,48 € 3
ON REQUEST
29 S01F10110001 DUST COVER  2 € 13,97 € 17
ON REQUEST
30 S01F10140001 EARLESS SLAMP 0.6×7-40~63  3 € 7,02 € 8
ON REQUEST
31 S01F10170001 CORRUGATED SLEEVE  2 € 16,20 € 20
ON REQUEST
32 S01F10180001 EARLESS SLAMP 0.6×7-52~76  2 € 10,50 € 13
ON REQUEST
33 S01F10100001 STEERING MACHINE ASSEMBLY  1 € 315,87 € 382
ON REQUEST
34 Hexagon flange bolt M10×1.25×25 (Item nr. 34) GBT005789026 Hexagon flange bolt M10×1.25×25  2 € 2,48 € 3
IN STOCK
35 HEX FLANGE BOLT M10×1.25×105 (Item nr. 35) GBT005789092 HEX FLANGE BOLT M10×1.25×105  3 € 2,48 € 3
IN STOCK
38 STEERING TRACK ROD (Item nr. 38) S01F10200001 STEERING TRACK ROD  2 € 53,55 € 65
IN STOCK
1 LOGO OF STEERING WHEEL SMALL (AL) (Item nr. 1) A01L10025001 LOGO OF STEERING WHEEL SMALL (AL)  1 € 4,55 € 5
IN STOCK
2 STEERING WHEEL LOGO COVER (Item nr. 2) S01F10702002 STEERING WHEEL LOGO COVER  1 € 20,67 € 25
IN STOCK
22 S01F10500001 STEERING LOWER SHAFT ASSEMBLY  1 € 71,57 € 87
ON REQUEST
21 Hexagon flange bolt M8×25 (Item nr. 21) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
IN STOCK
4 SCREW ST4.2×13 (Item nr. 4) GBT000845009 SCREW ST4.2×13  4 € 2,48 € 3
IN STOCK
5 STEERING WHEEL (Item nr. 5) S01-F107031-000-00 STEERING WHEEL  1 € 61,16 € 74
IN STOCK
6 GBT061832006 2-NON-METALLIC HF NUT M14×1.5  1 € 2,18 € 3
ON REQUEST
7 Ring,Snap 20 (Item nr. 7) GBT000894008 Ring,Snap 20  1 € 2,48 € 3
IN STOCK
8 BEARING 61804-2RS (Item nr. 8) GBT000276001 BEARING 61804-2RS  2 € 6,12 € 7
IN STOCK
9 S01F15001001 DIRECTION STRING  1 € 31,07 € 38
ON REQUEST
11 GBT008191004 SCREW M6×14  2 € 2,48 € 3
ON REQUEST
12 STEP BOLT M6×24 (Item nr. 12) T03000005004 STEP BOLT M6×24  2 € 2,48 € 3
IN STOCK
13 U01 AIR SPRING ASSSY (Item nr. 13) U01F17100001 U01 AIR SPRING ASSSY  1 € 28,26 € 34
IN STOCK IN 29 days
14 BOLT M8 (Item nr. 14) S01F10002001 BOLT M8  2 € 2,48 € 3
IN STOCK
15 All metal hexagonal flange lock nut M6 (Item nr. 15) GBT061871002 All metal hexagonal flange lock nut M6  1 € 2,07 € 3
IN STOCK
16 S01F10400001 STEERING UPPER SHAFT ASSEMBLY  1 € 79,17 € 96
ON REQUEST
17 HEXAGON FLANGE BOLT M8×35 (Item nr. 17) GBT005789018 HEXAGON FLANGE BOLT M8×35  1 € 2,48 € 3
IN STOCK
18 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 18) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  1 € 2,18 € 3
IN STOCK
19 Bolt M8×16 (Item nr. 19) GBT005789014 Bolt M8×16  3 € 2,18 € 3
IN STOCK
20 U01_EPS MOTOR (Item nr. 20) U01F13100001 U01_EPS MOTOR  1 € 604,21 € 731
ON REQUEST
3 S01F10701002 STEERING WHEEL DECORATIVE COVER（SHINY SILVER GRAY）  1 € 5,81 € 7
ON REQUEST
Product Code SEGWAY_2_239_UTV1000F-S3-23
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 (2023-xxxx)
