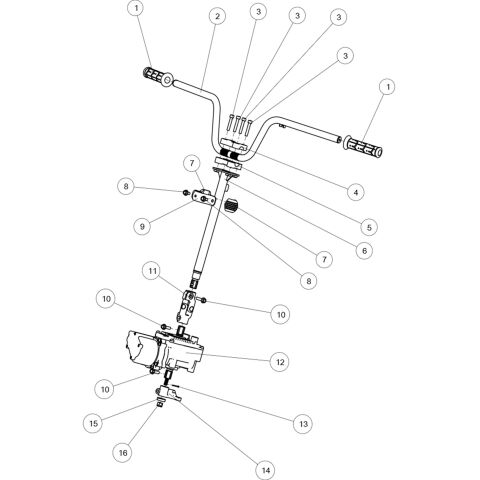

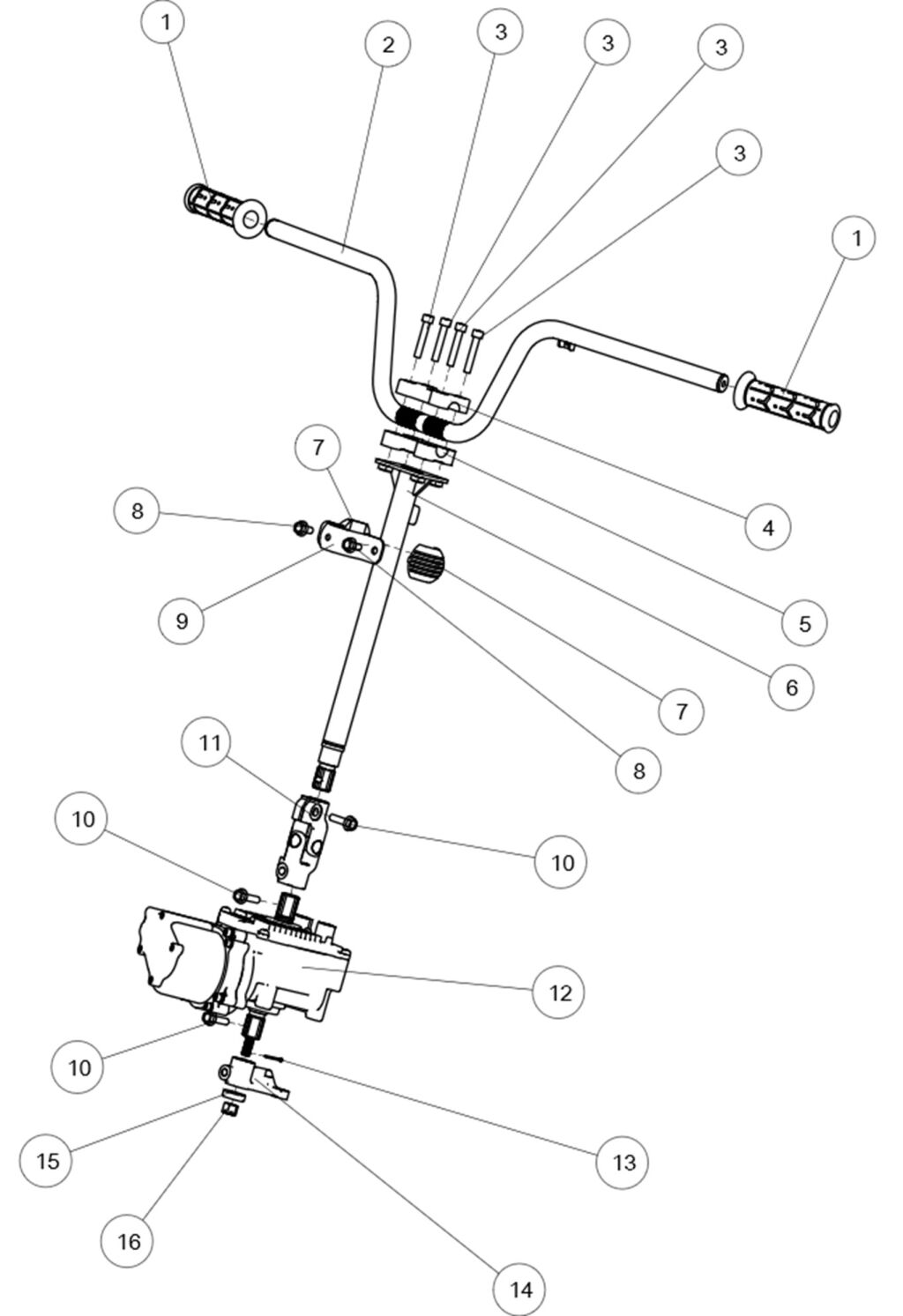

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 HANDLEBAR (Item nr. 01) A03F16600001 HANDLEBAR  2 € 31,40 € 38
IN STOCK
_15 STEERING ARM GASKET (Item nr. _15) T02000004001 STEERING ARM GASKET  1 € 2,64 € 3
IN STOCK
_14 STEERING ARM (Item nr. _14) A03F11001001 STEERING ARM  1 € 32,07 € 39
ON THE WAY
_13 Cotter pin 2.5 x 25 (Item nr. _13) GBT000091006 Cotter pin 2.5 x 25  1 € 2,48 € 3
IN STOCK
_12 R/B A02F13100004 EPS (BRUSHLESS) (Item nr. _12) A02F13100002 R/B A02F13100004 EPS (BRUSHLESS)  1 € 956,61 € 1 157
ON REQUEST
_11 R/B A03-F140001-000-00, STEERING KNUCKLE COMPONENT (Item nr. _11) A03F14100001 R/B A03-F140001-000-00, STEERING KNUCKLE COMPONENT  1 € 101,65 € 123
ON REQUEST
_10 HEXAGON FLANGE BOLT M8×30 (Item nr. _10) GBT005789017 HEXAGON FLANGE BOLT M8×30  3 € 2,15 € 3
IN STOCK
09 LOCKING PLATE SPHERE (Item nr. 09) A03F16100001 LOCKING PLATE SPHERE  1 € 3,39 € 4
IN STOCK
08 Bolt M8×16 (Item nr. 08) GBT005789014 Bolt M8×16  2 € 2,18 € 3
IN STOCK
07 R/B A01-F162001-000-00 STEERING SPHERE (Item nr. 07) A03F16200001 R/B A01-F162001-000-00 STEERING SPHERE  2 € 12,40 € 15
ON REQUEST
06 R/B A03-F140001-000-00 EPS STEERING SHAFT (Item nr. 06) A03F14000001 R/B A03-F140001-000-00 EPS STEERING SHAFT  1 € 83,14 € 101
ON THE WAY
05 COVER HANDLEBAR LOWER (Item nr. 05) A03F16400001 COVER HANDLEBAR LOWER  1 € 22,31 € 27
IN STOCK
04 COVER HANDLEBAR UPPER (Item nr. 04) A03F16300001 COVER HANDLEBAR UPPER  1 € 22,31 € 27
IN STOCK
03 HEXAGON SOCKET HEAD CAP SCREW M8×45 (Item nr. 03) GBT000701024 HEXAGON SOCKET HEAD CAP SCREW M8×45  4 € 2,48 € 3
IN STOCK
02 R/B A03F16500003 TUBE-HANDLEBAR (Item nr. 02) A03F16500001 R/B A03F16500003 TUBE-HANDLEBAR  1 € 58,10 € 70
IN STOCK
_16 1-Hexagon slotted nut M10 (Item nr. _16) GBT009457001 1-Hexagon slotted nut M10  1 € 2,48 € 3
IN STOCK
Product Code SGW_2_238_ATV570F-A2
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT6
Select MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
