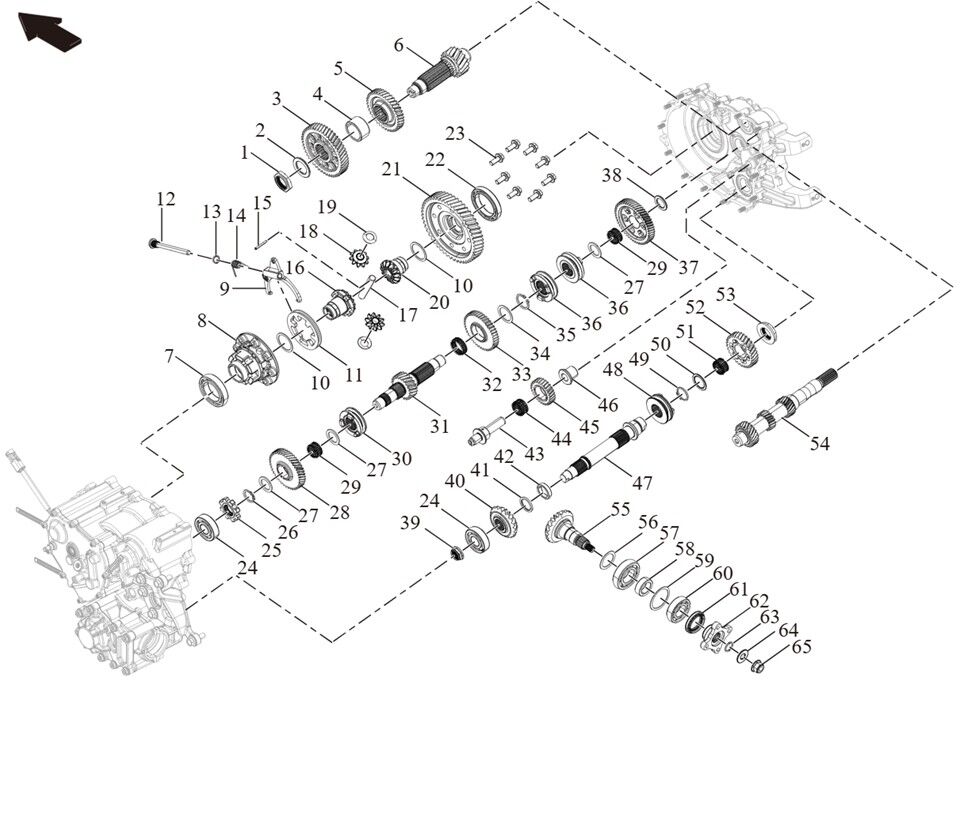

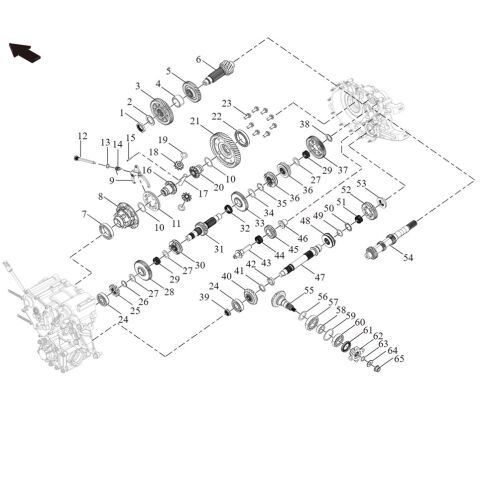

REAR GEARBOX (sect. B)

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SGW_1_138_AT10-A11_MUD
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
65 BG061872-14150-0A1 LOCKING NUT M14X1.5  1 € 1,74 € 2
ON REQUEST
48 E03-F204003-000-00 2 4WD COMBINING SLEEVE  1 € 9,75 € 12
ON REQUEST
47 E03-F204001-000-00 GEAR SHAFT  1 € 55,04 € 67
ON THE WAY
46 E03-F207004-000-00 REVERSE SHAFT BUSHING  1 € 5,37 € 6
ON THE WAY
45 E03-F207002-000-00 REVERSE GEAR IDLER GEAR  1 € 14,55 € 18
ON REQUEST
44 NEEDLE BEARING K30×35×17 (Item nr. 44) E02F22010001 NEEDLE BEARING K30×35×17  1 € 2,89 € 3
IN STOCK
43 E03-F207001-000-00 REVERSE GEAR SHAFT  1 € 12,98 € 16
ON THE WAY
42 E03-F240002-000-00 FRONT OUTPUT DRIVING GEAR BUSHING  1 € 1,98 € 2
ON THE WAY
41 E03-F240003-000-00 DRIVE GEAR SHIM  1 € 1,74 € 2
ON REQUEST
40 E03-F240001-000-00 FRONT OUTPUT DRIVE BEVEL GEAR  1 € 33,14 € 40
ON THE WAY
39 NUT M22×1 (Item nr. 39) F01F20403001 NUT M22×1  1 € 4,05 € 5
ON THE WAY
38 E03-F202007-000-00 WASHERS 25 × 38 × 2.5  1 € 1,74 € 2
ON REQUEST
37 E03-F202002-000-00 L GEAR DRIVEN GEAR  1 € 16,61 € 20
ON REQUEST
36 R/L GEAR COUPLING SLEEVE (Item nr. 36) E02F22006001 R/L GEAR COUPLING SLEEVE  2 € 11,82 € 14
IN STOCK IN 3 days
35 CIRCLIP 35×2.5 (Item nr. 35) D01P21207001 CIRCLIP 35×2.5  1 € 2,48 € 3
IN STOCK
49 BG008940-03202-F01 CLIP 32×2  1 € 1,74 € 2
ON REQUEST
50 E03-F204005-000-00 SPLINE WASHER OD43 × 1.5  1 € 1,74 € 2
ON REQUEST
64 E03-F260003-000-00 WASHER 15x34x2  1 € 1,74 € 2
ON REQUEST
63 O-Ring 20×2.65 (Item nr. 63) F01F20508001 O-Ring 20×2.65  1 € 2,48 € 3
IN STOCK
62 E03-F260002-000-00 FRONT OUTPUT FLANGE  1 € 16,94 € 21
ON REQUEST
61 OIL SEAL 38×55×7 (Item nr. 61) D02P22202001 OIL SEAL 38×55×7  1 € 6,28 € 8
ON THE WAY
60 BEARING 7206 (Item nr. 60) BG002920-72062-001 BEARING 7206  1 € 18,68 € 23
IN STOCK
59 E03-F260005-000-00 SHIM 62×51×0.4  1 € 1,74 € 2
ON REQUEST
58 E03-F260000-000-00 BEARING SPACER  1 € 3,31 € 4
ON REQUEST
57 BEARING 7207 (Item nr. 57) BG002920-72072-001 BEARING 7207  1 € 20,08 € 24
IN STOCK
56 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5 (Item nr. 56) E02F26002003 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5  1 € 2,48 € 3
IN STOCK
55 E03-F260001-000-00 FRONT OUTPUT DRIVEN BEVEL GEAR SHAFT  1 € 50,17 € 61
ON REQUEST
54 E03-F201001-000-00 MAIN SHAFT  1 € 55,04 € 67
ON THE WAY
53 E03-F204006-000-00 HEXAGONAL FLANGE NUT M33 × 1.5  1 € 2,15 € 3
ON REQUEST
52 E03-F204002-000-00 DRIVEN GEAR  1 € 17,77 € 22
ON THE WAY
51 NEEDLE ROLLER BEARING 30 × 34 × 17LE ROL (Item nr. 51) E03-F204004-000-00 NEEDLE ROLLER BEARING 30 × 34 × 17LE ROL  1 € 11,32 € 14
IN STOCK
34 SPACER 35×46×1.5 (Item nr. 34) E02F22009001 SPACER 35×46×1.5  1 € 2,48 € 3
IN STOCK
33 E03-F202003-000-00 R GEAR DRIVEN GEAR  1 € 17,36 € 21
ON REQUEST
32 NEEDLE ROLLER BEARING K35×40×13 (Item nr. 32) E02F22011001 NEEDLE ROLLER BEARING K35×40×13  1 € 3,22 € 4
IN STOCK
15 PIN 4 × 35 (Item nr. 15) BG008791-40035-001 PIN 4 × 35  1 € 2,40 € 3
IN STOCK
14 RETURN SPRING (Item nr. 14) E03-F250001-000-00 RETURN SPRING  1 € 1,74 € 2
IN STOCK
13 O-Ring 13.8×2.5 (Item nr. 13) F01G00005001 O-Ring 13.8×2.5  1 € 2,48 € 3
IN STOCK
12 DIFFERENTIAL SHIFT FORK SHAFT (Item nr. 12) E03-F250000-000-00 DIFFERENTIAL SHIFT FORK SHAFT  1 € 13,64 € 16
IN STOCK
11 REAR DIFFERENTIAL OUTPUT SHIFT SLEEVE (Item nr. 11) E03-F205003-000-00 REAR DIFFERENTIAL OUTPUT SHIFT SLEEVE  1 € 19,42 € 24
IN STOCK
10 SHIM Φ 40.2 ×Φ 50 (Item nr. 10) Q02-R301007-000-00 SHIM Φ 40.2 ×Φ 50  2 € 1,74 € 2
IN STOCK
9 DIFFERENTIAL SHIFT FORK (Item nr. 9) E03-F250060-000-00 DIFFERENTIAL SHIFT FORK  1 € 12,15 € 15
IN STOCK
8 DIFFERENTIAL HOUSING (Item nr. 8) E03-F205002-000-00 DIFFERENTIAL HOUSING  1 € 55,87 € 68
IN STOCK
7 BEARING 6010 (Item nr. 7) BG002760-06010-001 BEARING 6010  1 € 18,68 € 23
IN STOCK
6 TRIAXIAL (Item nr. 6) E03-F203001-000-00 TRIAXIAL  1 € 42,07 € 51
ON THE WAY
5 E03-F203003-000-00 DRIVE GEAR  1 € 16,94 € 21
ON THE WAY
3 SECONDARY DRIVEN GEAR (Item nr. 3) E03-F203002-000-00 SECONDARY DRIVEN GEAR  1 € 17,77 € 22
ON THE WAY
2 GASKET 34×52×3 (Item nr. 2) E03-F203005-000-00 GASKET 34×52×3  1 € 1,74 € 2
IN STOCK
16 RIGHT REAR HALF SHAFT BEVEL GEAR (Item nr. 16) E03-F205004-000-00 RIGHT REAR HALF SHAFT BEVEL GEAR  1 € 45,29 € 55
IN STOCK
17 REAR OUTPUT PLANETARY GEAR SHAFT (Item nr. 17) E03-F205006-000-00 REAR OUTPUT PLANETARY GEAR SHAFT  1 € 5,12 € 6
IN STOCK
31 COUNTERSHAFT (Item nr. 31) E03-F202001-000-00 COUNTERSHAFT  1 € 46,45 € 56
ON THE WAY
30 H GEAR ENGAGEMENT SLEEVE (Item nr. 30) E02F22007001 H GEAR ENGAGEMENT SLEEVE  1 € 11,40 € 14
IN STOCK
29 NEEDLE ROLLER BEARING K28×33×17 (Item nr. 29) E02F22013002 NEEDLE ROLLER BEARING K28×33×17  1 € 2,73 € 3
IN STOCK
28 E03-F202004-000-00 H-GEAR DRIVEN GEAR  1 € 19,42 € 24
ON THE WAY
27 WASHER 28×40×2.5 (Item nr. 27) E02F22008002 WASHER 28×40×2.5  3 € 2,48 € 3
IN STOCK
26 CIRCLIP 28×2.5 (Item nr. 26) E02F22012002 CIRCLIP 28×2.5  1 € 2,48 € 3
IN STOCK
25 E03-F202005-000-00 PARKING RATCHET  1 € 10,50 € 13
ON THE WAY
24 BG002760-06305-001 BEARING 6305  2 € 12,81 € 16
ON REQUEST
23 BOLT M10×1.25×25 (Item nr. 23) GBT005789053 BOLT M10×1.25×25  8 € 2,48 € 3
ON REQUEST
22 BEARING 61912 (Item nr. 22) GBT000276035 BEARING 61912  1 € 46,45 € 56
ON THE WAY
21 REAR OUTPUT GEAR (Item nr. 21) E03-F205001-000-00 REAR OUTPUT GEAR  1 € 109,26 € 132
IN STOCK
20 LEFT REAR HALF SHAFT BEVEL GEAR (Item nr. 20) E03-F205010-000-00 LEFT REAR HALF SHAFT BEVEL GEAR  1 € 31,57 € 38
IN STOCK
19 BOWL SHAPED GASKET (Item nr. 19) Q02-R301014-000-00 BOWL SHAPED GASKET  2 € 2,40 € 3
IN STOCK
18 TRANSMISSION PLANETARY GEAR (Item nr. 18) E03-F205007-000-00 TRANSMISSION PLANETARY GEAR  2 € 8,93 € 11
IN STOCK
1 NUT M33×1.5 (Item nr. 1) E02F23003001 NUT M33×1.5  1 € 2,89 € 3
IN STOCK
Product Code SGW_1_138_AT10-A11_MUD
PARTS CATEGORY: ENGINE PARTS
Select BRAND: SEGWAY
Select TYPE: AT10
Select MODEL: AT10WL MUD
