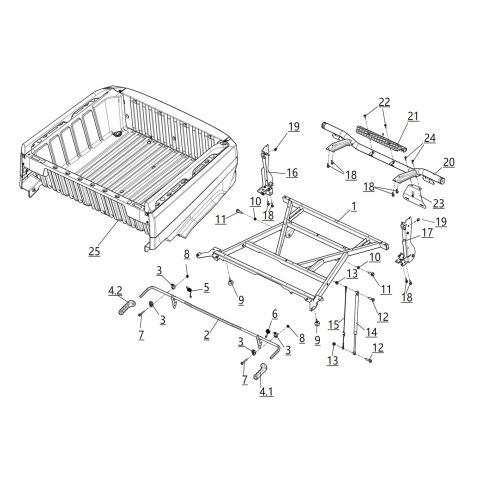

Rear cargo box assembly-EU standard

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_4_436_UT10_CREW_U5
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 U01C30100002 U09 CARGO BRACKET-BLACK  1 € 169,01 € 204
ON REQUEST
17 U01C30300002 U01 LEFT SIDE PLATE ASSEMBLY OF CONTAINER-BLACK  1 € 28,84 € 35
IN STOCK
18 BOLT M8×20 (Item nr. 18) GBT005789015 BOLT M8×20  8 € 2,18 € 3
IN STOCK
19 U01H14120001 U01 CARGO DOOR RUBBER  2 € 2,48 € 3
ON REQUEST

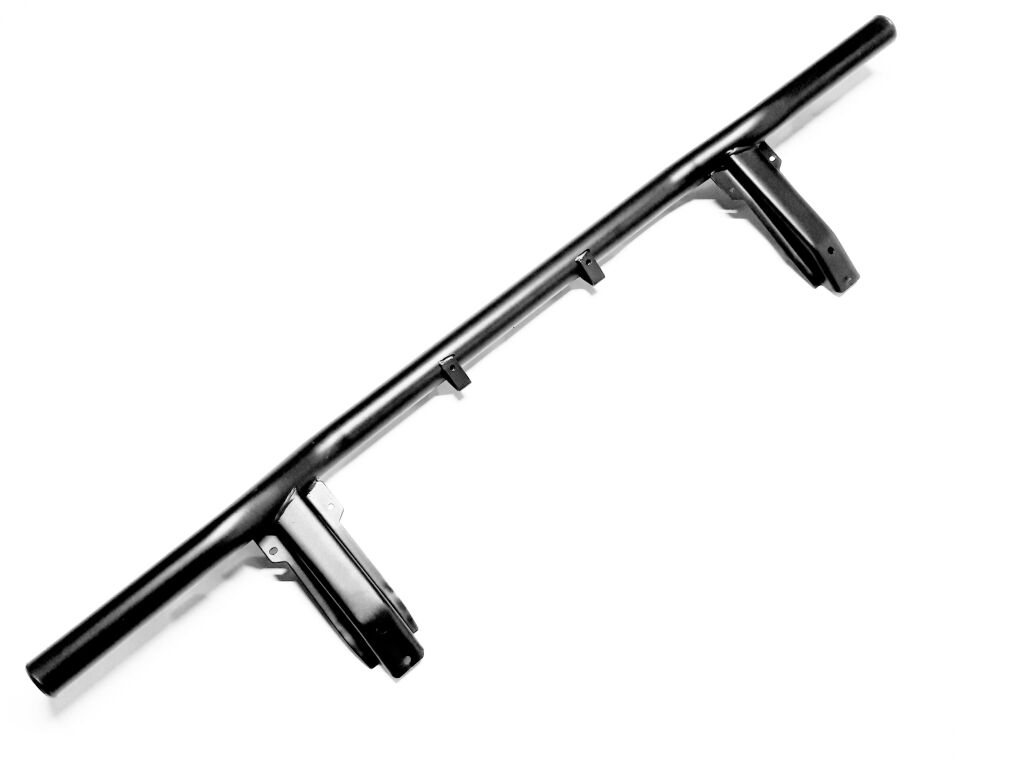

20 U03-C090000-FR0-00 REAR BUMPER_EU(RED)  1 € 58,60 € 71
IN STOCK
20 U03-C090000-FG0-00 REAR BUMPER_EU(GREEN)  1 € 58,60 € 71
IN STOCK
20 REAR BUMPER_EU(BLACK) (Item nr. 20) U03-C090000-FB0-00 REAR BUMPER_EU(BLACK)  1 € 58,60 € 71
IN STOCK
21 U01H14121001 U01 REAR BUMPER PEDAL  1 € 8,76 € 11
ON REQUEST
22 Inner hexagon screws M6×1.6 (Item nr. 22) T03000007002 Inner hexagon screws M6×1.6  2 € 2,18 € 3
IN STOCK
23 U01C00080002 U01 REAR LICENSE PLATE BRACKET-BLACK-EU  1 € 17,60 € 21
ON REQUEST
24 Bolt M6×16 (Item nr. 24) GBT005789007 Bolt M6×16  2 € 2,18 € 3
IN STOCK
25 U01H14100002 U01 CARGO BOX ASSY WHITE  1 € 980 € 1 186
ON REQUEST
25 U01H14100003 U01 CARGO BOX ASSY BLACK  1 € 980 € 1 186
ON REQUEST
25 U01H14100004 U01 CARGO BOX ASSY GRAY  1 € 980 € 1 186
ON REQUEST
16 U01C30400002 U01 RIGHT SIDE PLATE ASSEMBLY OF CONTAINER-BLACK  1 € 28,84 € 35
ON REQUEST
15 U01C30600001 U01 AIR SUPPORT CABLE L=652mm  1 € 3,72 € 5
ON REQUEST
14 U01 AIR SUPPORT L=652mm (Item nr. 14) U01C31000001 U01 AIR SUPPORT L=652mm  1 € 19,09 € 23
IN STOCK
2 U01-C302000-DB0-00 CARGO BOX LOCK HOOK-BLACK  1 € 26,86 € 32
ON REQUEST
3 U01C30206001 U01 CONTAINER LOCK HOOK FIKING BLOCK-PA66-BLACK  4 € 2,48 € 3
ON REQUEST
4,1 U01-C302021-0B0-00 LEFT CAR BED RELEASE HANDLE  1 € 3,72 € 5
ON REQUEST
4,2 U01-C302022-0B0-00 RIGHT CAR BED RELEASE HANDLE  1 € 3,72 € 5
ON REQUEST
5 U01C30205001 U01 TORSION SPRING OF CONTAINER LOCK HOOK-RIGHT  1 € 2,48 € 3
ON REQUEST
6 U01C30204001 U01 TORSION SPRING OF CONTAINER LOCK HOOK-LEFT  1 € 2,48 € 3
ON REQUEST
7 HEXAGON FLANGE BOLT M8×50 (Item nr. 7) GBT005789021 HEXAGON FLANGE BOLT M8×50  2 € 2,18 € 3
IN STOCK
8 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 8) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  2 € 2,18 € 3
IN STOCK
9 U01C30800001 U01 CARGO CUSHION BLOCK(WITH NUT M8)  2 € 2,48 € 3
ON REQUEST
10 U01 TRUNK SHAFT BUSHING-BLACK (Item nr. 10) U01C30001001 U01 TRUNK SHAFT BUSHING-BLACK  2 € 2,48 € 3
IN STOCK
11 BOLT M12×1.25×50 (Item nr. 11) GBT005789142 BOLT M12×1.25×50  2 € 2,73 € 3
IN STOCK
12 BG008820-10040-F01 PIN 10×40  2 € 2,40 € 3
ON REQUEST
13 QCT000623001 PIN 8  2 € 2,40 € 3
ON REQUEST
25 U01H14100005 U01 CARGO BOX ASSY GRASSLAND CAMOUFLAGE  1 € 980 € 1 186
ON REQUEST
Product Code SEGWAY_4_436_UT10_CREW_U5
PARTS CATEGORY: BODY PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT10 Crew U5
