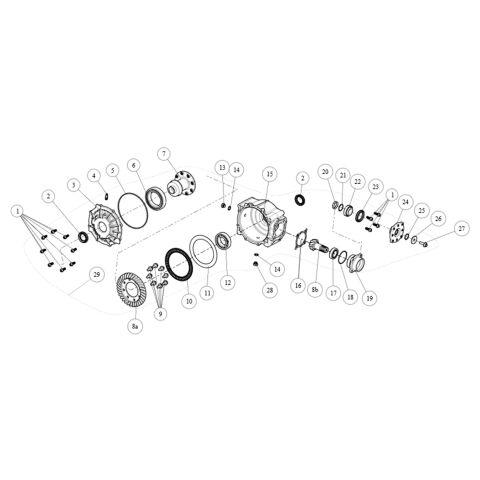

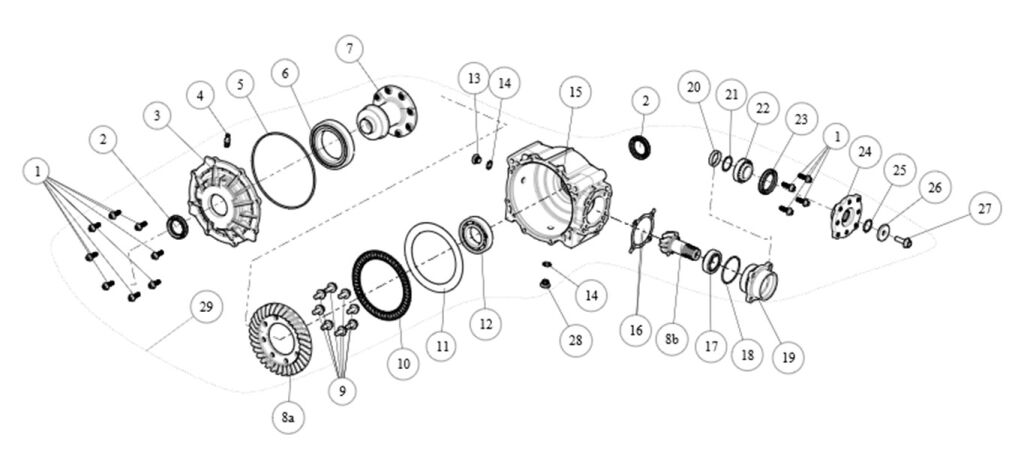

REAR AXLE ASSEMBLY(NO DIFFERENTIAL,NO ABS,FOUR BRAKE)

SEGWAY
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 HEXAGON FLANGE BOLT M8×25 (Item nr. 1) Q01F40201001 HEXAGON FLANGE BOLT M8×25  12 € 2,48 € 3
IN STOCK
17 TAPERED ROLLER BEARING 32006 (Item nr. 17) GBT000297001 TAPERED ROLLER BEARING 32006  1 € 28,68 € 35
ON THE WAY
18 O-RING SEAL 61.5*2.65 (Item nr. 18) Q01R41200001 O-RING SEAL 61.5*2.65  1 € 2,48 € 3
ON THE WAY
19 DRIVE GEAR SHAFT SEAT (Item nr. 19) Q01R40400001 DRIVE GEAR SHAFT SEAT  1 € 21,74 € 26
IN STOCK
20 SPACER,SECTOR GEAR (Item nr. 20) Q01R10400001 SPACER,SECTOR GEAR  1 € 3,47 € 4
IN STOCK
21 Q01R10300000 CLEARANCE ADJUSTING PAD (unavailable)  1 € 2,48 € 3
ON REQUEST
22 TAPERED ROLLER BEARING 33006 (Item nr. 22) GBT000297002 TAPERED ROLLER BEARING 33006  1 € 50 € 61
IN STOCK
23 Oil seal 44×60×7 (Item nr. 23) F01F20503001 Oil seal 44×60×7  1 € 10,91 € 13
IN STOCK
24 FLANGE,TRANSMISSION SHAFT (Item nr. 24) Q01R40300001 FLANGE,TRANSMISSION SHAFT  1 € 76,28 € 92
IN STOCK
25 O-RING SEAL 25×2.65 (Item nr. 25) Q01R41100001 O-RING SEAL 25×2.65  1 € 4,13 € 5
IN STOCK
26 FLAT WASHER10.5×39×6 (Item nr. 26) Q01R40900001 FLAT WASHER10.5×39×6  1 € 3,47 € 4
IN STOCK
27 HEXAGON FLANGE BOLT M10×1.25×30 (Item nr. 27) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,48 € 3
IN STOCK
28 ENGINE DRAIN PLUG M14 (Item nr. 28) F01G00200001 ENGINE DRAIN PLUG M14  1 € 5,70 € 7
ON REQUEST
16 DRIVE GEAR ADJUSTING PAD (unavailable) (Item nr. 16) Q01R10200000 DRIVE GEAR ADJUSTING PAD (unavailable)  2 € 2,48 € 3
ON REQUEST

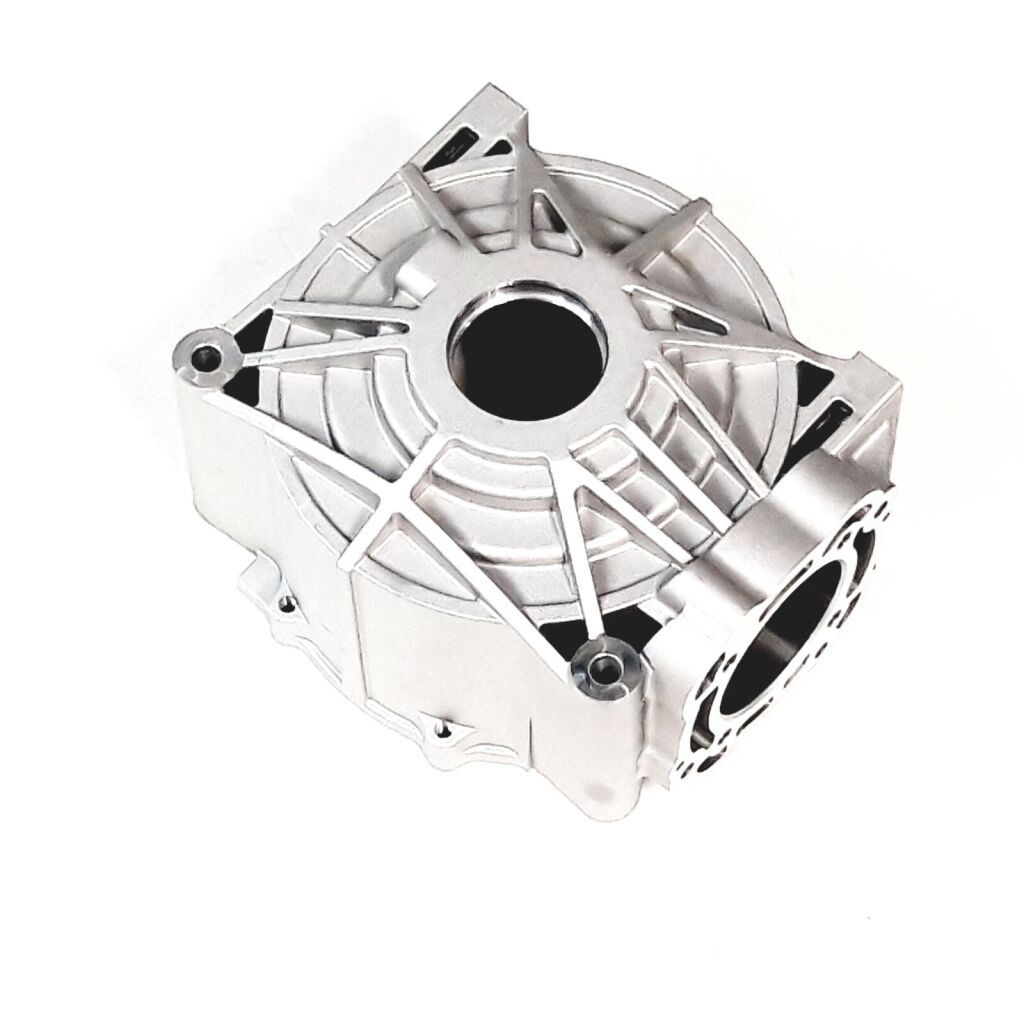

15 REAR AXLE SHELL (Item nr. 15) Q02R40100001 REAR AXLE SHELL  1 € 205,95 € 249
IN STOCK
14 O-Ring 13.8×2.5 (Item nr. 14) F01G00005001 O-Ring 13.8×2.5  2 € 2,48 € 3
IN STOCK
2 OIL SEAL 37×55×7 (Item nr. 2) Q01F40600001 OIL SEAL 37×55×7  2 € 14,88 € 18
IN STOCK

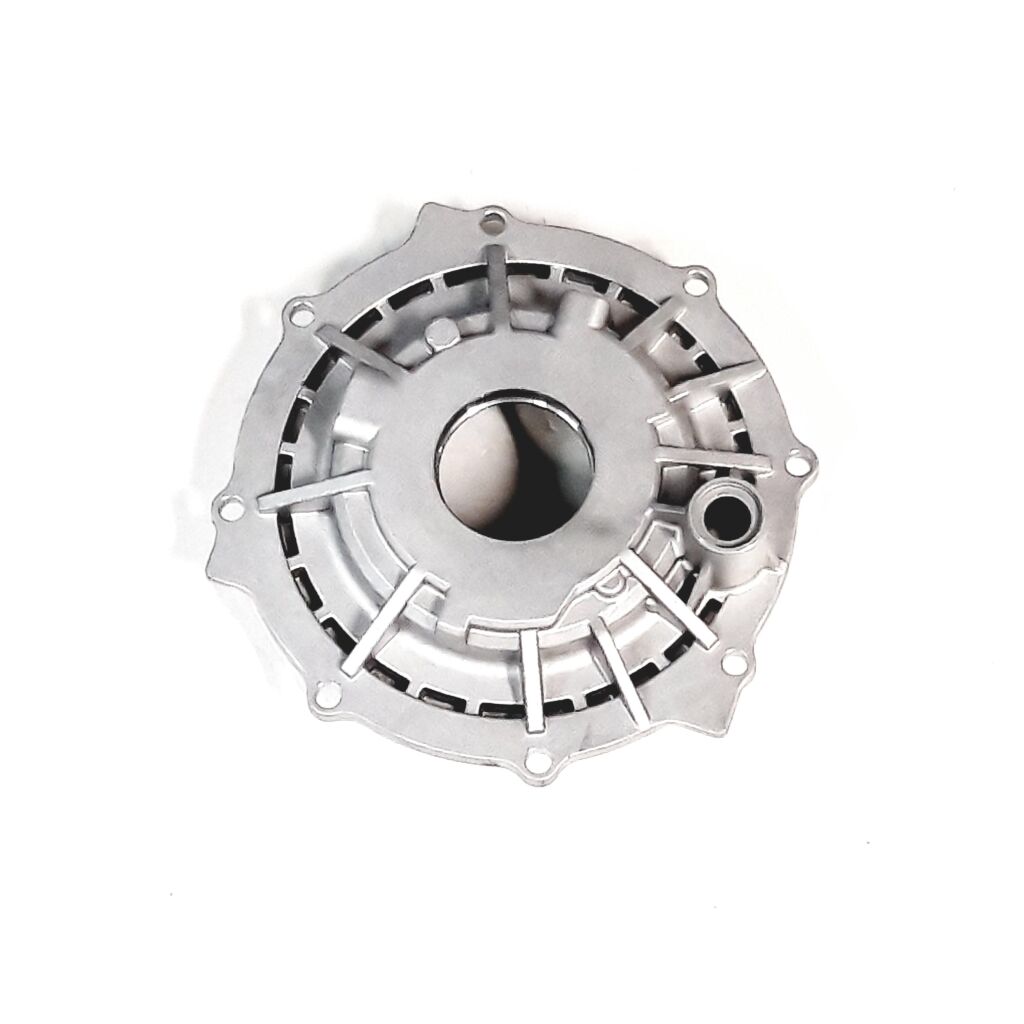

3 REAR AXLE COVER (Item nr. 3) Q02R40200001 REAR AXLE COVER  1 € 76,78 € 93
IN STOCK
4 BREATHING JOINT (Item nr. 4) Q01F41300001 BREATHING JOINT  1 € 14,38 € 17
IN STOCK
5 RECTANGULAR GASKET 180×185×3 (Item nr. 5) Q01R40500001 RECTANGULAR GASKET 180×185×3  1 € 9,09 € 11
IN STOCK

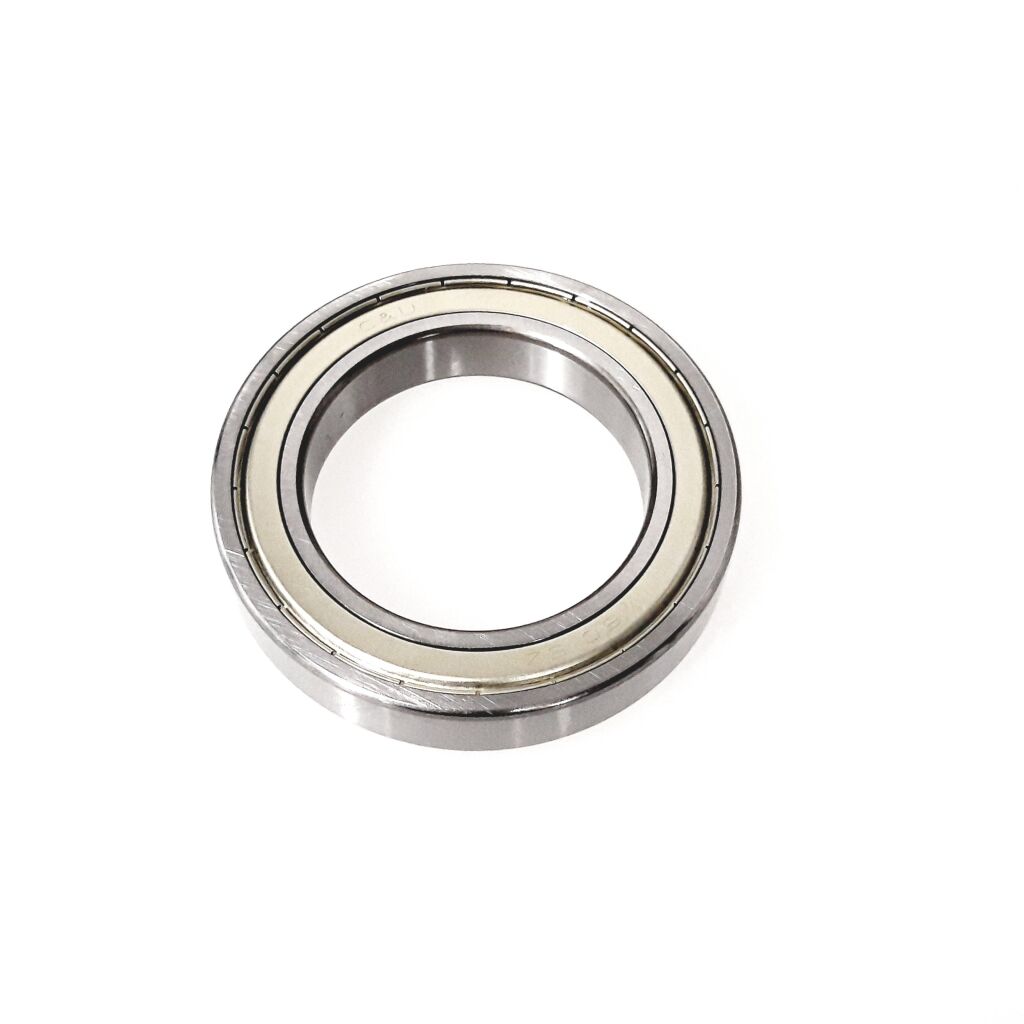

6 DEEP GROOVE BALL BEARING 6015-Z (Item nr. 6) GBT000276017 DEEP GROOVE BALL BEARING 6015-Z  1 € 98,43 € 119
IN STOCK
7 TRANSMISSION SHAFT (Item nr. 7) Q02R30100001 TRANSMISSION SHAFT  1 € 266,94 € 323
IN STOCK

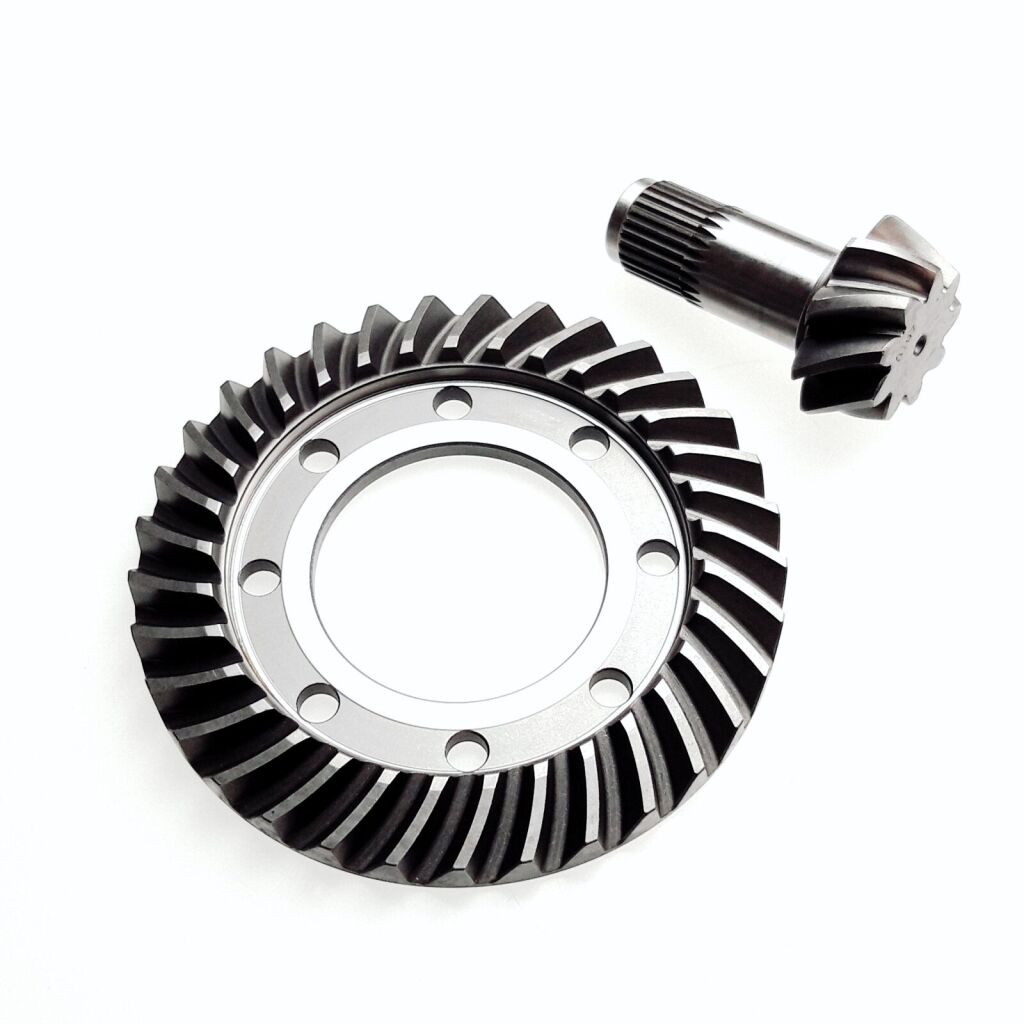

8 DRIVE&DRIVEN BEVEL GEAR KIT (Item nr. 8) Q02R20100000 DRIVE&DRIVEN BEVEL GEAR KIT  1 € 319,17 € 386
IN STOCK
9 HEXAGON FLANGE BOLT M10×1.0×20 (Item nr. 9) GBT005789055 HEXAGON FLANGE BOLT M10×1.0×20  8 € 2,48 € 3
IN STOCK
10 NEEDLE ROLLER BEARING AXK 130X170X5 (Item nr. 10) Q01R40700001 NEEDLE ROLLER BEARING AXK 130X170X5  1 € 37,19 € 45
IN STOCK
11 LIMIT LINER (Item nr. 11) Q01R40800001 LIMIT LINER  1 € 7,69 € 9
IN STOCK

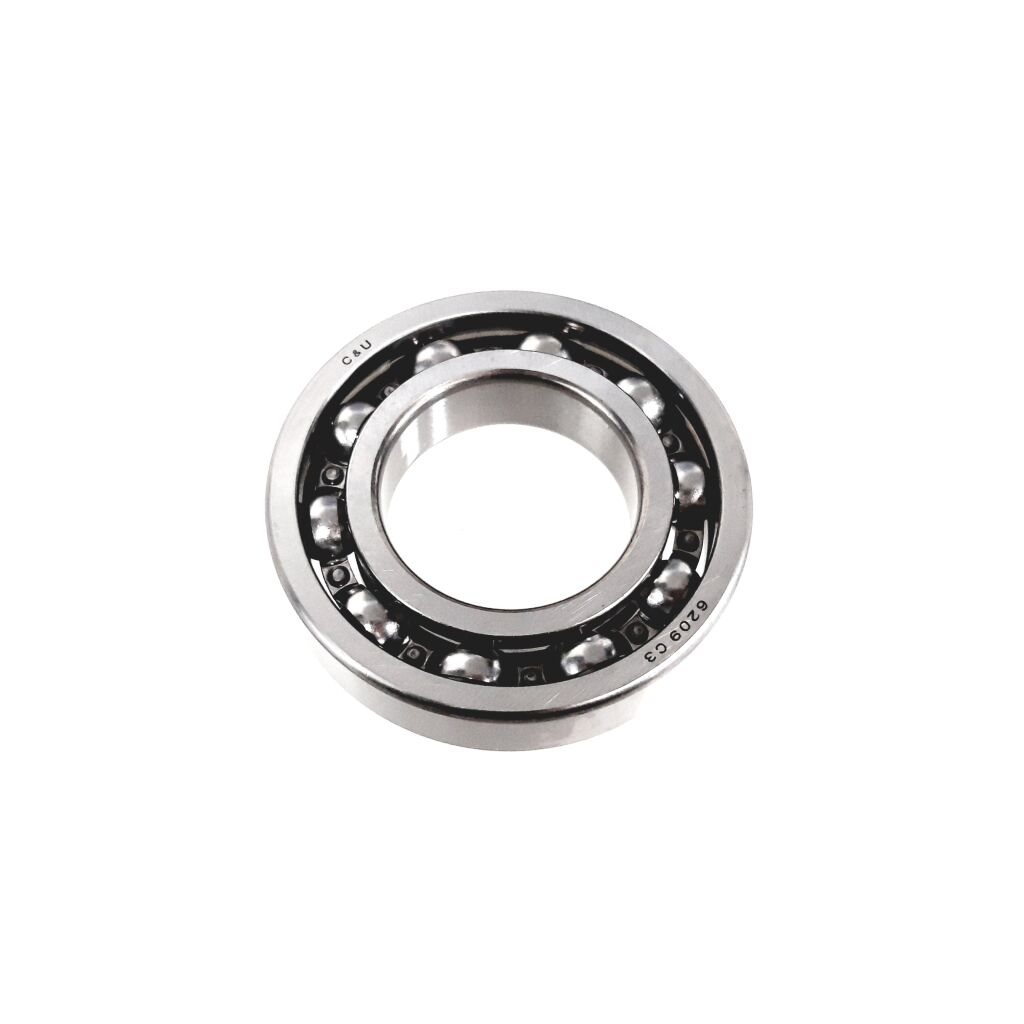

12 DEEP GROOVE BALL BEARING 6209 (Item nr. 12) GBT000276016 DEEP GROOVE BALL BEARING 6209  1 € 30,41 € 37
IN STOCK
13 PLUG M14 (Item nr. 13) F02C10008001 PLUG M14  1 € 2,73 € 3
ON REQUEST

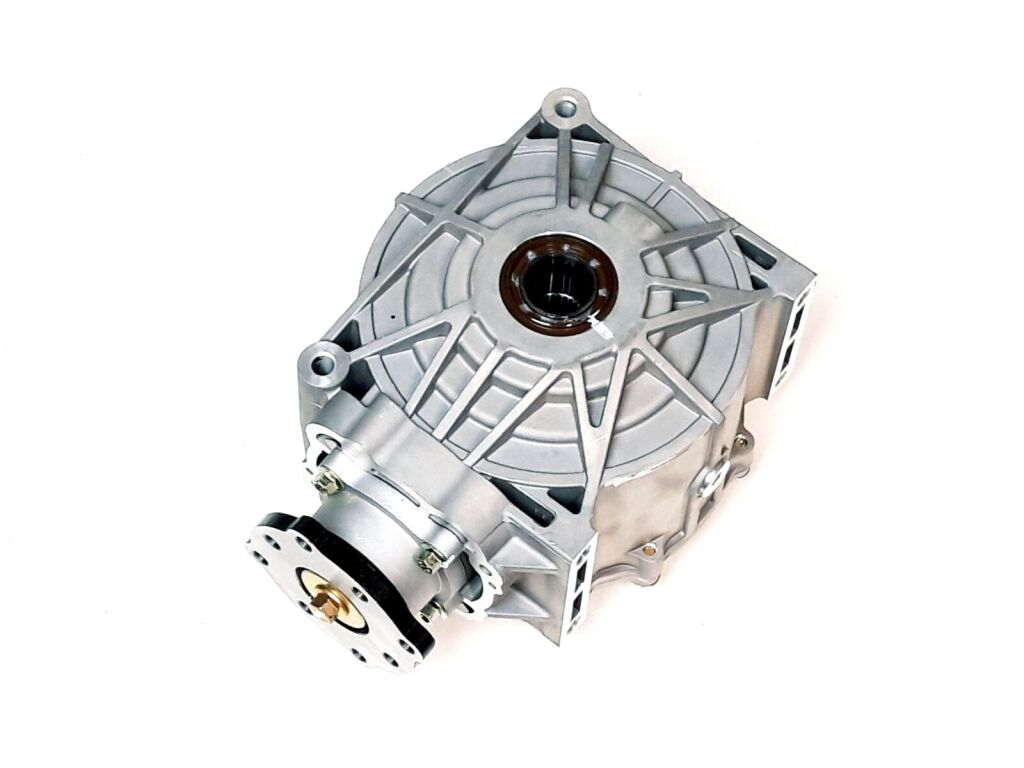

29 REAR AXLE ASSEMBLY(no differential,no ABS,four brake) (Item nr. 29) Q02R00000002 REAR AXLE ASSEMBLY(no differential,no ABS,four brake)  1 € 823,80 € 997
ON REQUEST
Product Code SGW_2_274_ATV570F-A2
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT6
Select MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
