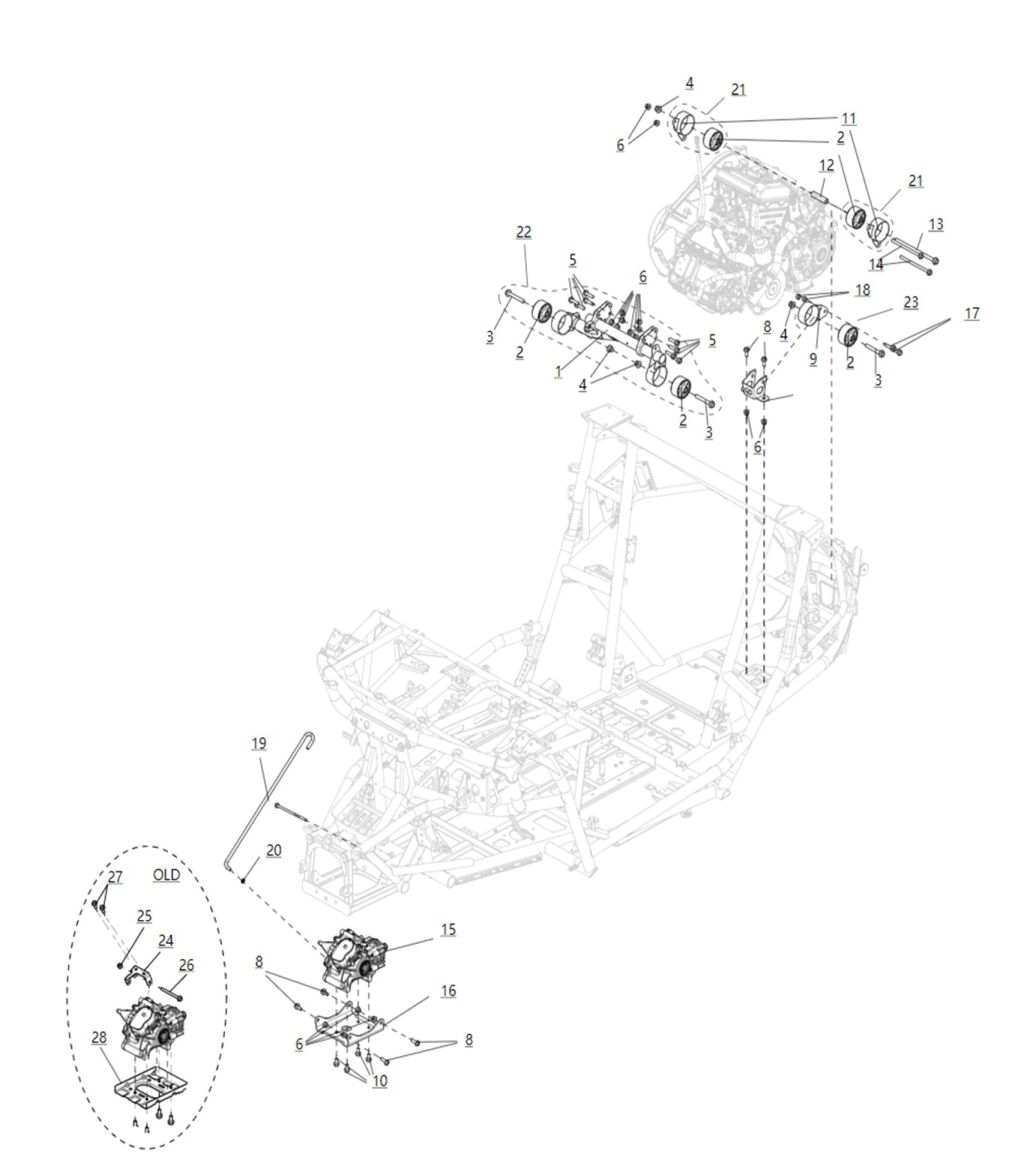

POWER INSTALLATION ASSEMBLY

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_225_UTV1000F-S3-23
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 S05-C006100-DB0-00 ENGINE FRONT BRACKET ASSEMBLY  1 € 61,57 € 75
ON REQUEST
16 S05-C005000-DB0-00 LOWER BRACKET OF FRONT AXLE  1 € 21,49 € 26
ON REQUEST
17 GBT005789031 HEXAGON FLANGE BOLT M10×1.25×50  2 € 2,48 € 3
ON REQUEST
18 NUT M10×1.25 (Item nr. 18) GBT061852001 NUT M10×1.25  2 € 2,18 € 3
IN STOCK
19 REAR AXLE SNORKEL (Item nr. 19) A02A10002001 REAR AXLE SNORKEL  1 € 25,37 € 31
IN STOCK
20 CLAMP,SPRINGBAND 11 (Item nr. 20) QCT006211003 CLAMP,SPRINGBAND 11  1 € 2,15 € 3
IN STOCK
21 S05C01100001 ENGINE REAR MOUNTING SEAT ASSEMBLY  2 € 49,17 € 59
ON REQUEST
22 S05-C006000-000-00 ENGINE FRONT MOUNTING SEAT ASSEMBLY  1 € 105,45 € 128
ON REQUEST
23 S05C01200001 ENGINE LOWER MOUNTING SEAT ASSEMBLY  1 € 50,83 € 62
ON REQUEST
24 S01C07200002 FRONT AXLE UPPER BRACKET  1 € 11,57 € 14
ON REQUEST
25 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 25) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  1 € 2,18 € 3
IN STOCK
26 BOLT M8×90 (Item nr. 26) GBT005789023 BOLT M8×90  1 € 2,48 € 3
IN STOCK
27 BOLT M8×20 (Item nr. 27) GBT005789015 BOLT M8×20  1 € 2,18 € 3
IN STOCK
15 FRONT AXLE ASSY (Item nr. 15) Q03F00000002 FRONT AXLE ASSY  1 € 1 036,45 € 1 254
IN STOCK
14 GBT005789101 HEX FLANGE BOLT M10×1.25×160  2 € 2,48 € 3
ON REQUEST
2 S05 ENGINE DAMPING SET (Item nr. 2) S05H20200001 S05 ENGINE DAMPING SET  5 € 15,04 € 18
IN STOCK
3 BOLT M12×1.25×85 (Item nr. 3) GBT005789094 BOLT M12×1.25×85  3 € 2,48 € 3
IN STOCK
4 NUT M12×1.25 (Item nr. 4) GBT061832002 NUT M12×1.25  4 € 2,18 € 3
IN STOCK
5 HEXAGON FLANGE BOLT M10×1.25×40 (Item nr. 5) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  4 € 2,48 € 3
IN STOCK
6 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 6) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  10 € 2,18 € 3
IN STOCK
7 S05C00500002 ENGINE LOWER MOUNTING SEAT  1 € 11,82 € 14
ON REQUEST
8 Hexagon flange bolt M10×1.25×25 (Item nr. 8) GBT005789026 Hexagon flange bolt M10×1.25×25  2 € 2,48 € 3
IN STOCK
9 S05C00400002 ENGINE LOWER BRACKET ASSEMBLY  1 € 24,13 € 29
ON REQUEST
10 HEXAGON FLANGE BOLT M10×1.25×20 (Item nr. 10) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  6 € 2,18 € 3
IN STOCK
11 S05C00200002 ENGINE REAR LEFT BRACKET ASSEMBLY  2 € 22,64 € 27
ON REQUEST
12 S05C00206002 ENGINE REAR LINER  1 € 12,07 € 15
ON REQUEST
13 GBT005789093 HEX FLANGE BOLT M12×1.25×220  1 € 3,06 € 4
ON REQUEST
28 S01C00401002 MOUNTING BRACKET UNDER FRONT AXLE (BLACK)  1 € 17,19 € 21
ON REQUEST
Product Code SEGWAY_2_225_UTV1000F-S3-23
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 (2023-xxxx)
