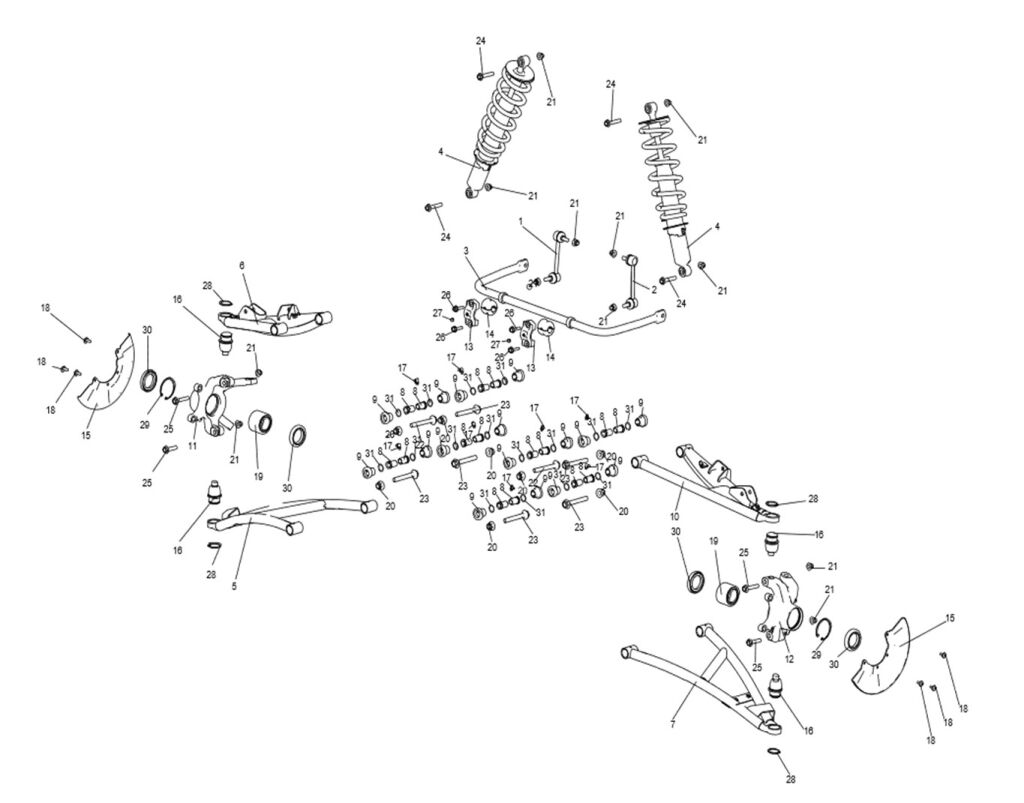

FRONT SUSPENSION SYSTEM.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_222_UT6
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 U09D16300001 FR BALANCE BAR BALL PIN  1 € 25,70 € 31
ON REQUEST
28 A-RING,SNAP (Item nr. 28) GBT000894004 A-RING,SNAP  4 € 2,15 € 3
IN STOCK
29 RING,HOLE 63 (Item nr. 29) GBT000893002 RING,HOLE 63  2 € 4,13 € 5
ON REQUEST
3 U06-D160300-000-00 FRONT STABILIZER BAR ASSEMBLY  1 € 34,87 € 42
ON REQUEST
3 U06-D150020-000-00 FRONT SHOCK ABSORBER(30 Inch)  2 € 95,26 € 115
ON REQUEST
4 U06-D150010-000-00 FRONT SHOCK ABSORBER(27 Inch)  2 € 89,54 € 108
ON REQUEST
5 U06-D141010-DB0-00 FR LOWER ARM  1 € 41,68 € 50
ON REQUEST
6 U06-D131010-DB0-00 FR UPPER ARM  1 € 48,12 € 58
ON REQUEST
7 U06-D121010-DB0-00 FL LOWER ARM  1 € 41,68 € 50
ON REQUEST
8 U06-D111052-000-00 ROCKER ARM T-SHAPED SLEEVE I  16 € 3,79 € 5
ON REQUEST
9 U06-D111051-000-00 ROCKER ARM BUFFER SLEEVE  16 € 2,18 € 3
ON REQUEST
10 U06-D111010-DB0-00 FL UPPER ARM  1 € 48,12 € 58
ON REQUEST
11 U06-D100020-000-00 FRONT RIGHT STEERING KNUCKLE  1 € 83,96 € 102
ON REQUEST
12 U06-D100010-000-00 FRONT LEFT STEERING KNUCKLE  1 € 83,96 € 102
ON REQUEST
30 BG138711-45658-000 HALF SHAFT OIL SEAL  4 € 2,18 € 3
ON REQUEST
27 Straight pressure oil cup (Item nr. 27) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
IN STOCK
26 HEXAGON FLANGE BOLT M8×30 (Item nr. 26) GBT005789017 HEXAGON FLANGE BOLT M8×30  4 € 2,15 € 3
IN STOCK
2 U09D16200001 FL BALANCE BAR BALL PIN  1 € 25,70 € 31
ON REQUEST
13 Rear balance bar mounting seat (Item nr. 13) U01D26002001 Rear balance bar mounting seat  2 € 10,50 € 13
IN STOCK
14 FRONT BALANCE BAR BUFFER CHUNKS (Item nr. 14) U01D16001001 FRONT BALANCE BAR BUFFER CHUNKS  2 € 3,06 € 4
IN STOCK
15 U01_FRONT BRAKE DISC FLAP (Item nr. 15) U01D10001002 U01_FRONT BRAKE DISC FLAP  2 € 18,68 € 23
IN STOCK

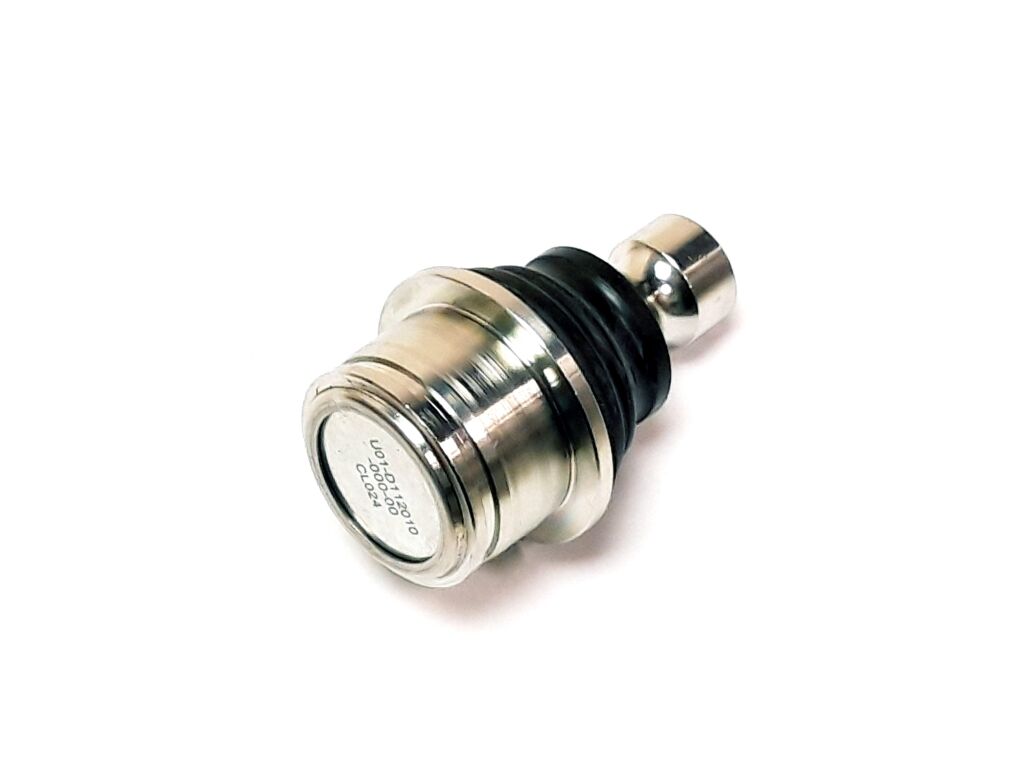

16 MAIN PIN (Item nr. 16) U01-D112010-000-00 MAIN PIN  4 € 14,88 € 18
IN STOCK
17 90° Connector pressure filling cup (Item nr. 17) T07000001007 90° Connector pressure filling cup  8 € 2,18 € 3
IN STOCK
18 Inner hexagon screws M6×1.6 (Item nr. 18) T03000007002 Inner hexagon screws M6×1.6  6 € 2,18 € 3
IN STOCK
19 HUB BEARING DAC3006342-2ZC1 (Item nr. 19) JBT010238002 HUB BEARING DAC3006342-2ZC1  2 € 26,78 € 32
IN STOCK
20 NUT M12×1.25 (Item nr. 20) GBT061832010 NUT M12×1.25  8 € 2,18 € 3
IN STOCK
21 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 21) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  12 € 2,18 € 3
IN STOCK
22 BOLT M12×1.25×95 (Item nr. 22) GBT005789104 BOLT M12×1.25×95  2 € 2,48 € 3
IN STOCK
23 BOLT M12×1.25×90 (Item nr. 23) GBT005789103 BOLT M12×1.25×90  6 € 2,18 € 3
ON REQUEST
24 Hexagon flange bolt M10×1.25×55 (Item nr. 24) GBT005789032 Hexagon flange bolt M10×1.25×55  4 € 2,48 € 3
IN STOCK
25 GBT005789031 HEXAGON FLANGE BOLT M10×1.25×50  4 € 2,48 € 3
ON REQUEST
31 BG034521-18026-001 O RING  16 € 2,18 € 3
ON REQUEST
Product Code SEGWAY_2_222_UT6
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT6
