Front suspension system

  • Product Code  SEGWAY_2_224_AT5_T3b
Select MODEL:

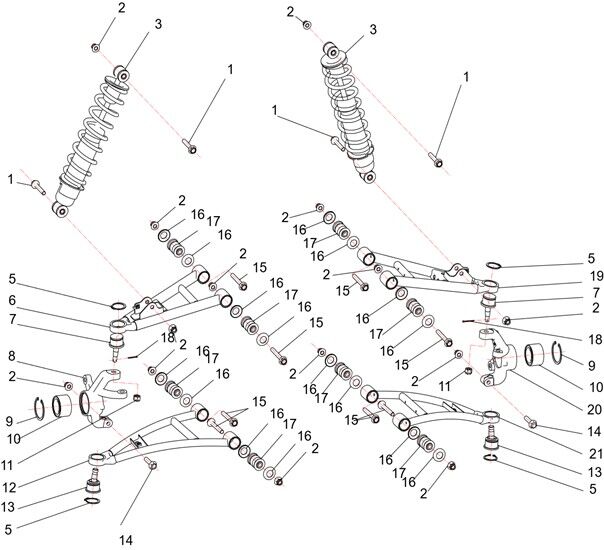

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 Hexagon flange bolt M10×1.25×55 (Item nr. 1) GBT005789032 Hexagon flange bolt M10×1.25×55  4 € 2,48 € 3
IN STOCK
13 MAIN PIN,LOWER (Item nr. 13) A01D12010001 MAIN PIN,LOWER  2 € 14,96 € 18
IN STOCK
14 BOLT M10×1.25×45 (Item nr. 14) GBT005789030 BOLT M10×1.25×45  2 € 2,48 € 3
IN STOCK
15 HEXAGON FLANGE BOLT M10×1.25×75 (Item nr. 15) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  8 € 2,48 € 3
IN STOCK IN 29 days
16 ARM PLUG (Item nr. 16) A10-D111011-000-00 ARM PLUG  16 € 2,40 € 3
IN STOCK
17 ROCKER ARM BRACKET BUFFER BUSHING (Item nr. 17) A03A30001001 ROCKER ARM BRACKET BUFFER BUSHING  8 € 2,64 € 3
IN STOCK
18 Cotter pin 2.5 x 25 (Item nr. 18) GBT000091006 Cotter pin 2.5 x 25  2 € 2,48 € 3
IN STOCK

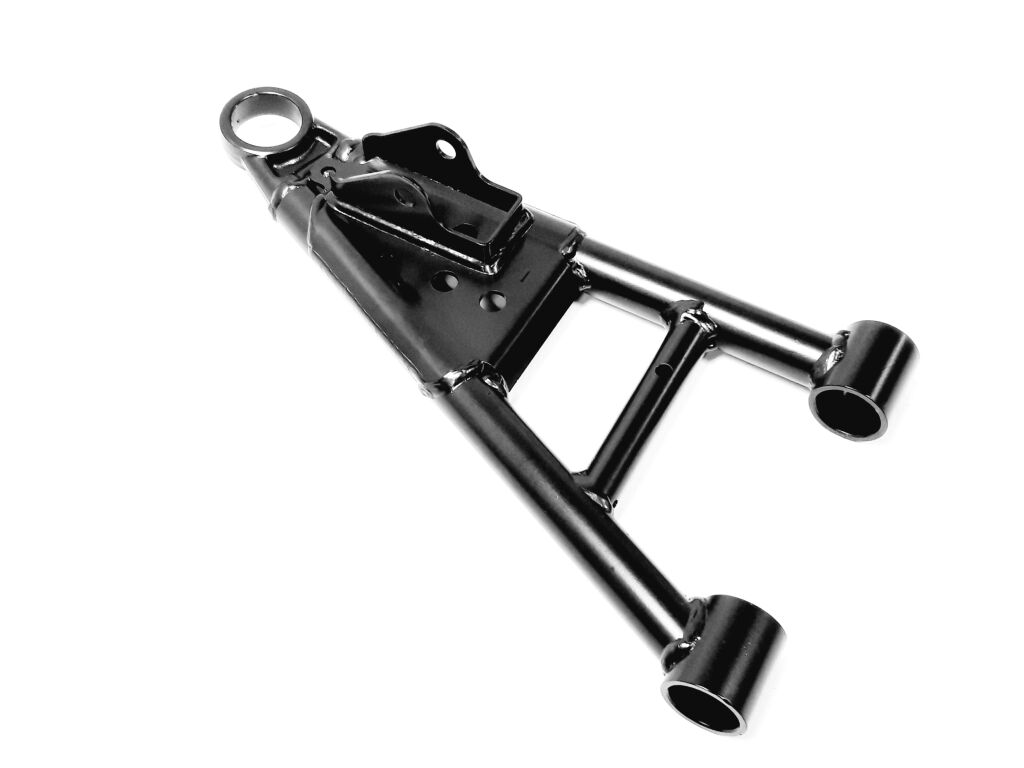

19 BLACK UPPER WELD ARM FR (Item nr. 19) A10-D131010-DB0-00 BLACK UPPER WELD ARM FR  1 € 31,65 € 38
IN STOCK
20 RIGHT STEERING KNUCKLE (Item nr. 20) A10-D100020-DB0-00 RIGHT STEERING KNUCKLE  1 € 56,61 € 68
IN STOCK IN 29 days
12 BLACK LOWER WELD ARM FL (Item nr. 12) A10-D121010-DB0-00 BLACK LOWER WELD ARM FL  1 € 28,84 € 35
IN STOCK
11 1-Hexagon slotted nut M10 (Item nr. 11) GBT009457001 1-Hexagon slotted nut M10  2 € 2,48 € 3
IN STOCK
2 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 2) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  14 € 2,18 € 3
IN STOCK

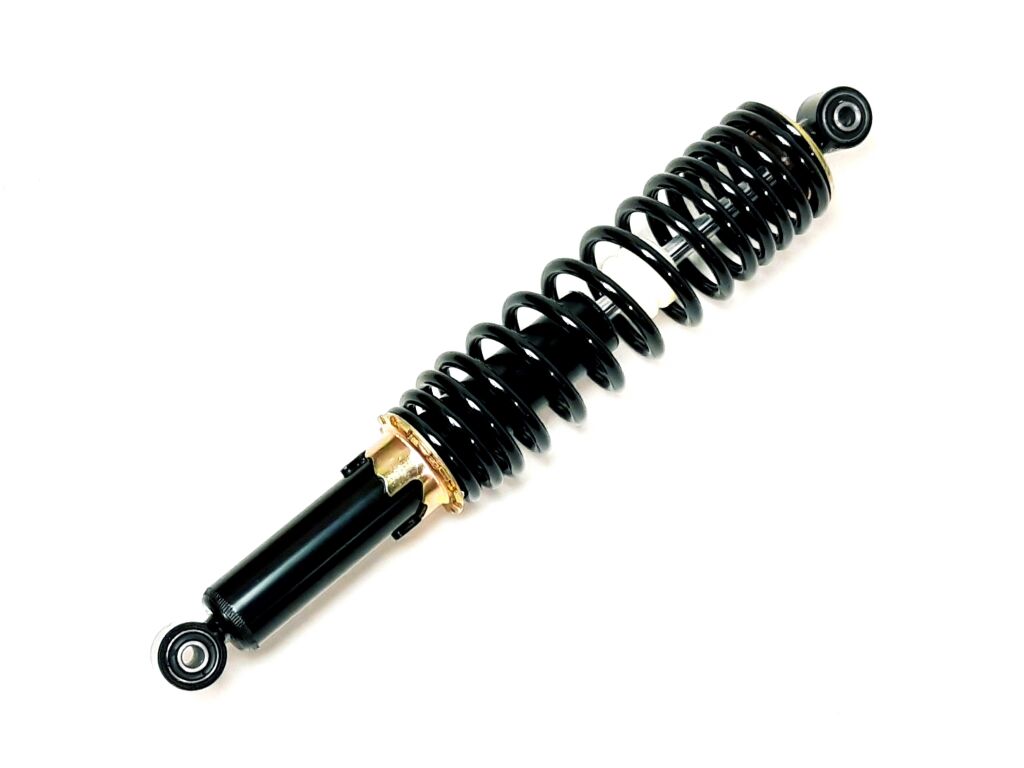

3 BLACK FRONT SHOCK ABSORBER (Item nr. 3) A10-D150010-0B0-00 BLACK FRONT SHOCK ABSORBER  2 € 65,54 € 79
IN STOCK IN 13 days
5 A-RING,SNAP (Item nr. 5) GBT000894004 A-RING,SNAP  4 € 2,15 € 3
IN STOCK
6 BLACK UPPER WELD ARM FL (Item nr. 6) A10-D111010-DB0-00 BLACK UPPER WELD ARM FL  1 € 31,65 € 38
IN STOCK
7 MAIN PIN,UPPER (Item nr. 7) A01D11010001 MAIN PIN,UPPER  2 € 22,73 € 27
IN STOCK
8 LEFT STEERING KNUCKLE (Item nr. 8) A10-D100010-DB0-00 LEFT STEERING KNUCKLE  1 € 56,61 € 68
IN STOCK

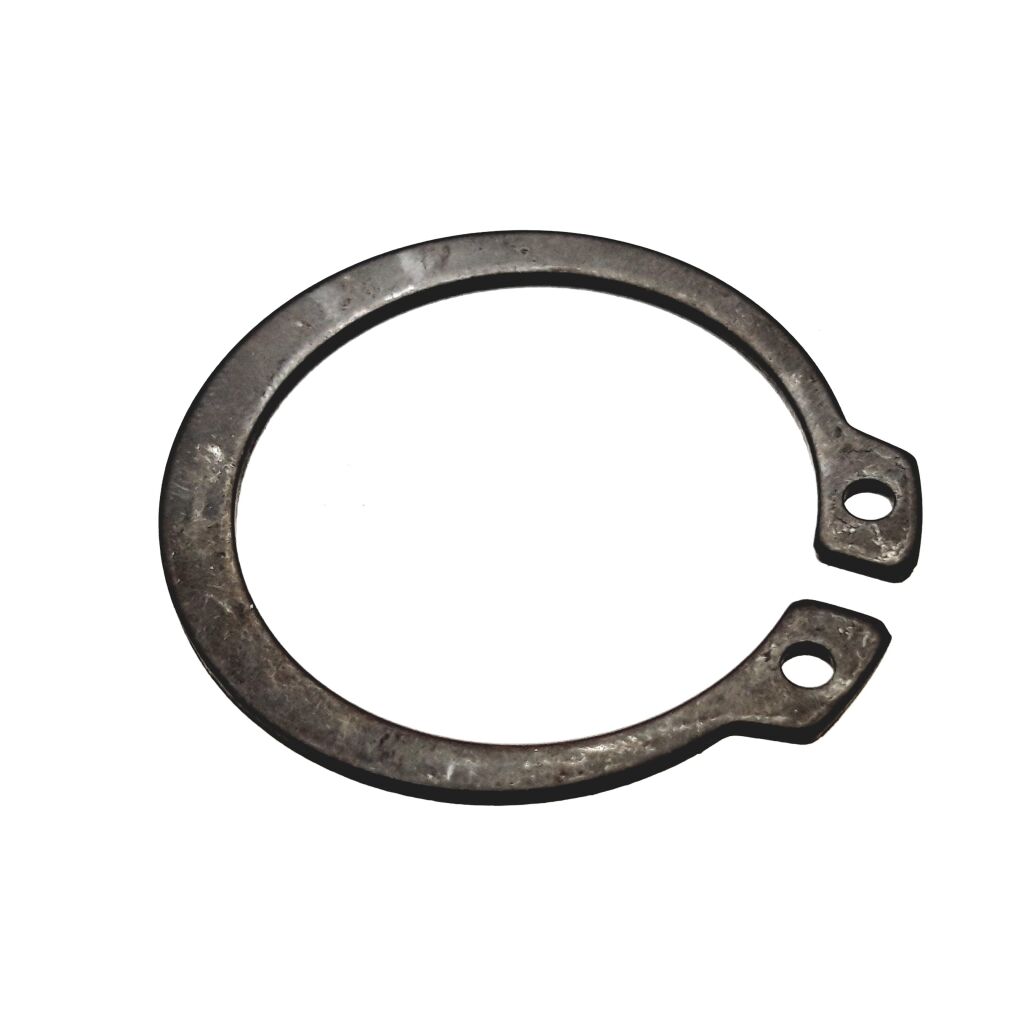

9 CIRCLIP 55 (Item nr. 9) BG008930-55000-F01 CIRCLIP 55  2 € 2,40 € 3
ON REQUEST
10 HUB BEARING DAC3005532-2RSC1 (Item nr. 10) BJ102380-55032-001 HUB BEARING DAC3005532-2RSC1  2 € 22,31 € 27
IN STOCK
21 BLACK LOWER WELD ARM FR (Item nr. 21) A10-D141010-DB0-00 BLACK LOWER WELD ARM FR  1 € 28,84 € 35
IN STOCK IN 13 days
Product Code SEGWAY_2_224_AT5_T3b
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT5
Select MODEL: AT5 S T3b, AT5 L T3b
