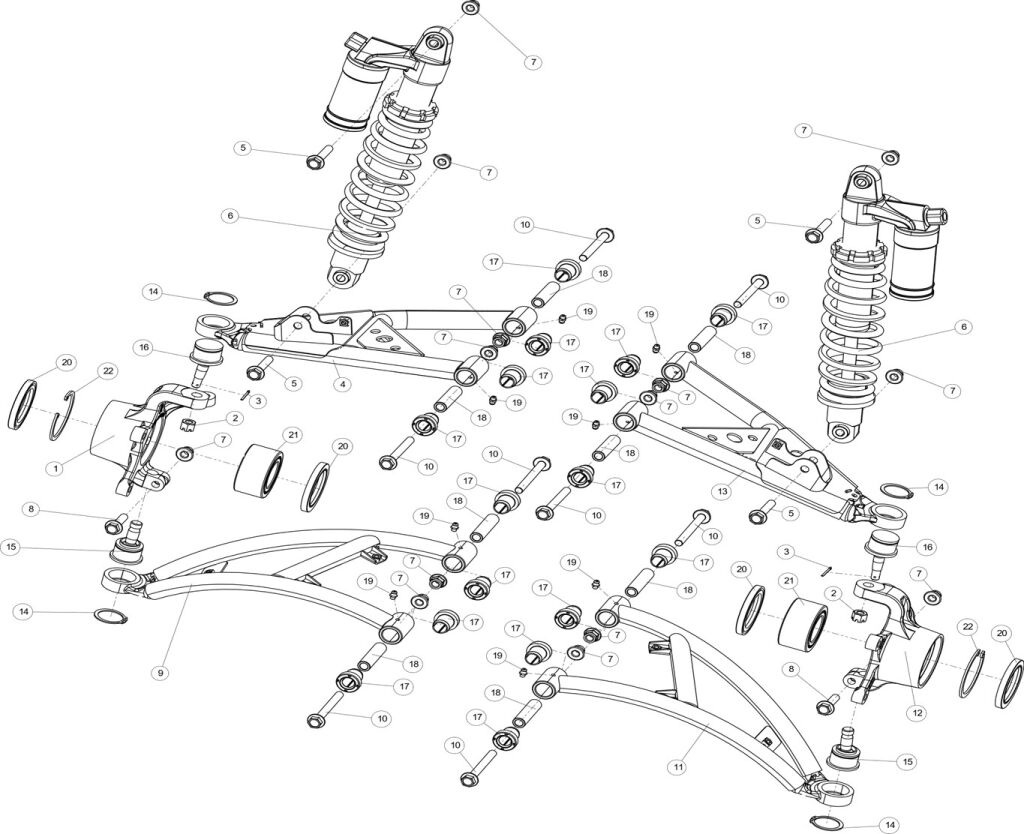

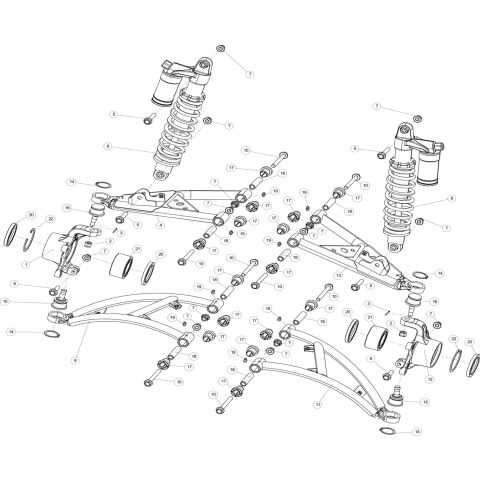

FRONT SUSPENSION, NARROW VERSION.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_245_AT10_A3
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
2 1-Hexagon slotted nut M10 (Item nr. 2) GBT009457001 1-Hexagon slotted nut M10  2 € 2,48 € 3
IN STOCK
18 FRONT ARM TUBE (Item nr. 18) U01D11002001 FRONT ARM TUBE  8 € 2,15 € 3
IN STOCK
19 Straight pressure oil cup (Item nr. 19) GBT001152001 Straight pressure oil cup  8 € 5,04 € 6
IN STOCK
20 HALF SHAFT OIL SEAL (Item nr. 20) BG138711-55758-000 HALF SHAFT OIL SEAL  4 € 1,74 € 2
ON THE WAY
21 BEARING DAC407237-2RS (Item nr. 21) JBT010238004 BEARING DAC407237-2RS  2 € 35,12 € 43
ON THE WAY
22 CIRCLIP 72 (Item nr. 22) GBT000893006 CIRCLIP 72  2 € 2,48 € 3
IN STOCK
1 RIGHT STEERING KNUCKLE (Item nr. 1) A12-D100020-000-00 RIGHT STEERING KNUCKLE  1 € 65,79 € 80
IN STOCK
4 FR UPPER A-ARM,BLACK, WIDE (Item nr. 4) A12-D131010-FB0-00 FR UPPER A-ARM,BLACK, WIDE  1 € 38,10 € 46
ON REQUEST
6,2 BLACK FRONT SHOCK ABSORBER (Item nr. 6,2) A12-D150010-0B0-00 BLACK FRONT SHOCK ABSORBER  2 € 79,59 € 96
IN STOCK
9 R/B A12-D141010-FB0-01 FR LOWER A-ARM,BLACK, WIDE (Item nr. 9) A12-D141010-FB0-00 R/B A12-D141010-FB0-01 FR LOWER A-ARM,BLACK, WIDE  1 € 35,70 € 43
ON REQUEST
11 FL LOWER A-ARM,BLACK, WIDE R/B A12-D121010-FB0-01 (Item nr. 11) A12-D121010-FB0-00 FL LOWER A-ARM,BLACK, WIDE R/B A12-D121010-FB0-01  1 € 64,55 € 78
ON REQUEST
12 LEFT STEERING KNUCKLE (Item nr. 12) A12-D100010-000-00 LEFT STEERING KNUCKLE  1 € 65,79 € 80
IN STOCK
17 FRONT ARM TUBE (Item nr. 17) U01D11001001 FRONT ARM TUBE  16 € 5,95 € 7
IN STOCK
16 MAIN PIN,UPPER (Item nr. 16) A01D11010001 MAIN PIN,UPPER  2 € 22,73 € 27
IN STOCK
15 MAIN PIN,LOWER (Item nr. 15) A01D12010001 MAIN PIN,LOWER  2 € 14,96 € 18
IN STOCK
3 Cotter pin 2.5 x 25 (Item nr. 3) GBT000091006 Cotter pin 2.5 x 25  2 € 2,48 € 3
IN STOCK
4 FR UPPER A-ARM,RED,NARROW (Item nr. 4) A12-D131010-FR0-00 FR UPPER A-ARM,RED,NARROW  1 € 38,35 € 46
IN STOCK
5 Hexagon flange bolt M10×1.25×55 (Item nr. 5) GBT005789032 Hexagon flange bolt M10×1.25×55  4 € 2,48 € 3
ON THE WAY
6,1 BLACK FRONT GAS SHOCK ABSORBER (Item nr. 6,1) A12-D150020-0B0-00 BLACK FRONT GAS SHOCK ABSORBER  2 € 181,74 € 220
ON REQUEST
7 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 7) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  14 € 2,18 € 3
IN STOCK
8 HEXAGON FLANGE BOLT M10×1.25×40 (Item nr. 8) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  2 € 2,48 € 3
IN STOCK
9 A12-D141010-FR0-00 FR LOWER A-ARM,RED,NARROW  1 € 35,87 € 43
ON THE WAY
10 HEXAGON FLANGE BOLT M10×1.25×90 (Item nr. 10) GBT005789036 HEXAGON FLANGE BOLT M10×1.25×90  8 € 2,15 € 3
IN STOCK
11 A12-D121010-FR0-00 FL LOWER A-ARM,RED,NARROW R/B A12-D121010-FR0-01  1 € 64,55 € 78
ON REQUEST
13 FL UPPER A-ARM,RED,NARROW (Item nr. 13) A12-D111010-FR0-00 FL UPPER A-ARM,RED,NARROW  1 € 38,35 € 46
IN STOCK
14 A-RING,SNAP (Item nr. 14) GBT000894004 A-RING,SNAP  4 € 2,15 € 3
IN STOCK
13 FL UPPER A-ARM,BLACK, WIDE (Item nr. 13) A12-D111010-FB0-00 FL UPPER A-ARM,BLACK, WIDE  1 € 38,10 € 46
ON THE WAY
Product Code SEGWAY_2_245_AT10_A3
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT10
Select MODEL: AT10L
