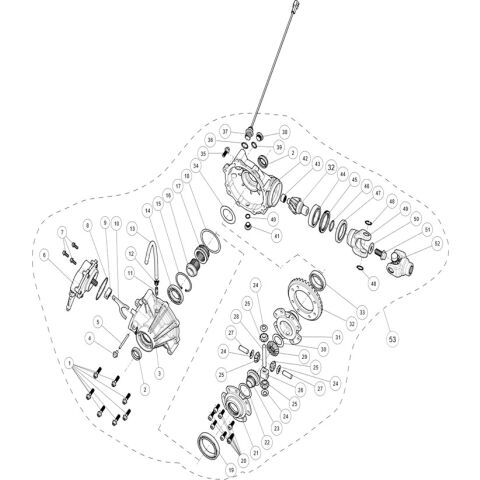

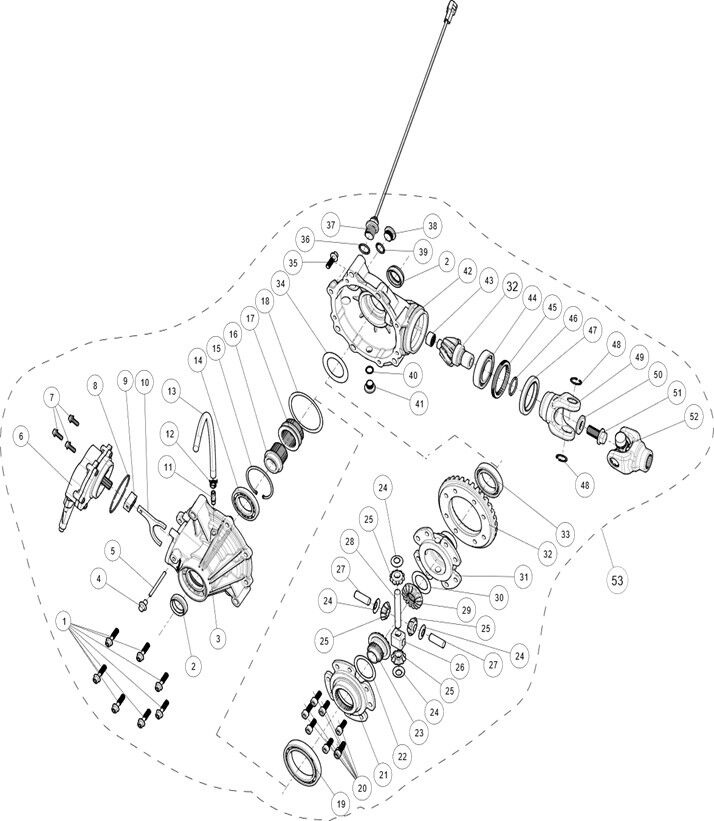

FRONT AXLE DIFF

  • Product Code  SEGWAY_1_114_AT5_E5
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
53 450 FRONT AXLE ASSEMBLY (Item nr. 53) Q02-F000000-000-00 450 FRONT AXLE ASSEMBLY  1 € 689,59 € 834
IN STOCK

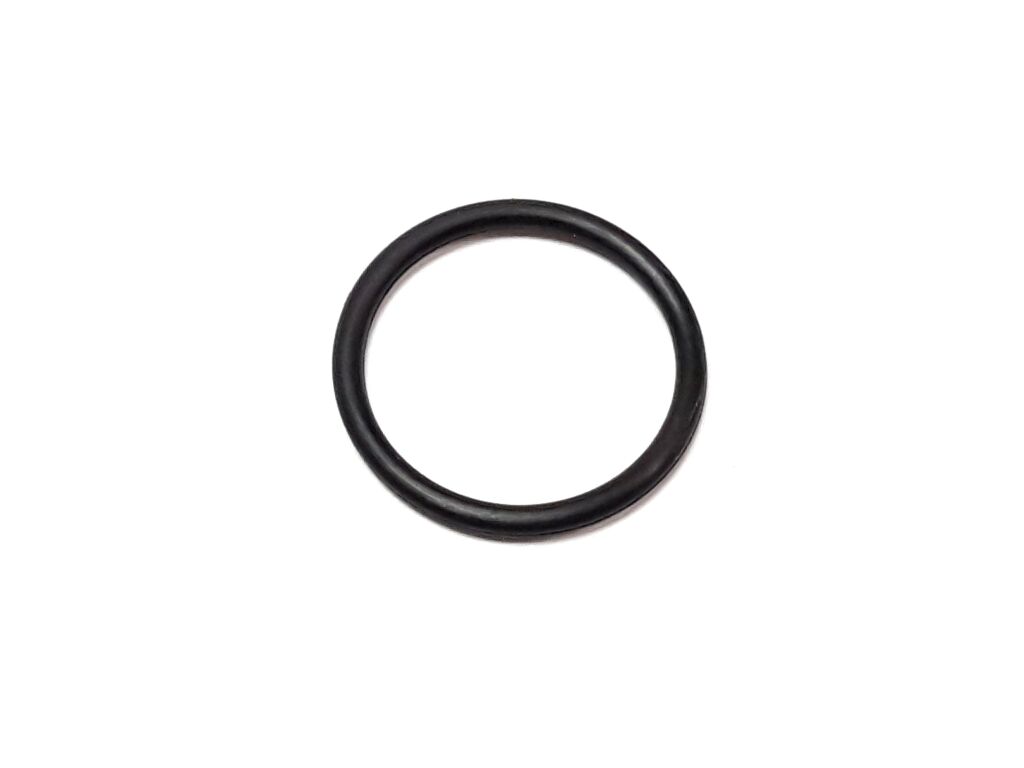

39 O-RING 16.4×2.5 (Item nr. 39) Q02F00009001 O-RING 16.4×2.5  1 € 2,48 € 3
ON THE WAY

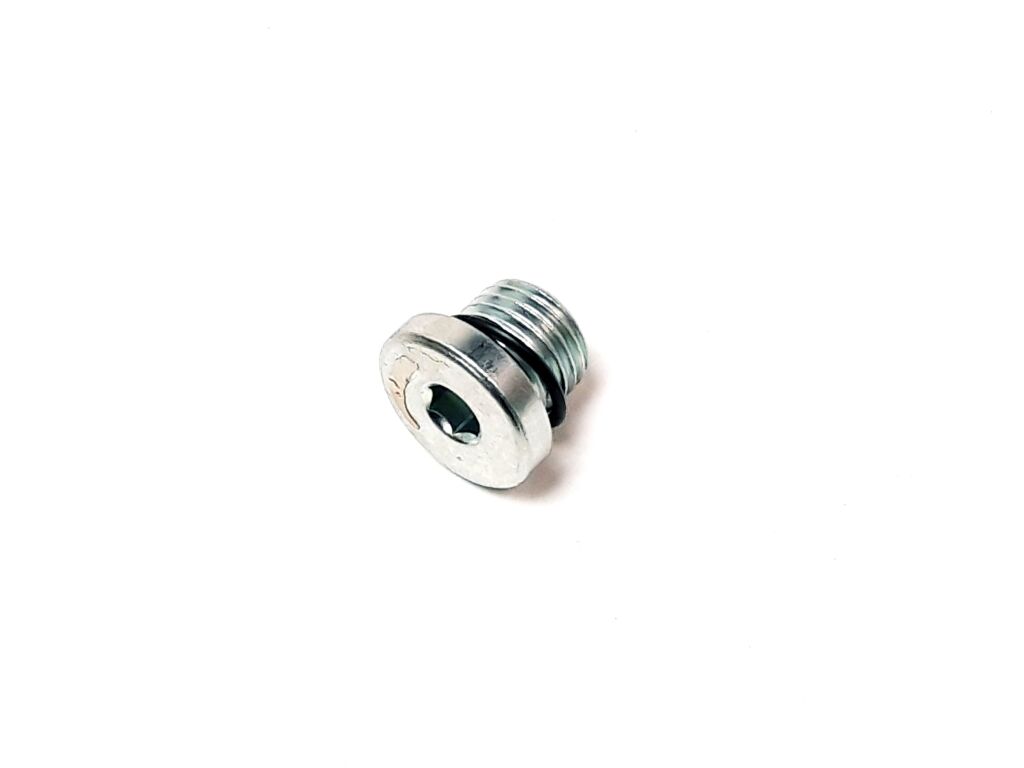

38 PLUG M18×1.5 (Item nr. 38) Q02F00008001 PLUG M18×1.5  1 € 3,88 € 5
ON THE WAY
37 VEHICLE SPEED SENSOR (Item nr. 37) Q01F50300002 VEHICLE SPEED SENSOR  1 € 48,84 € 59
IN STOCK
36 O-RING 19.4×2.3 (Item nr. 36) Q02F00007001 O-RING 19.4×2.3  1 € 2,48 € 3
IN STOCK

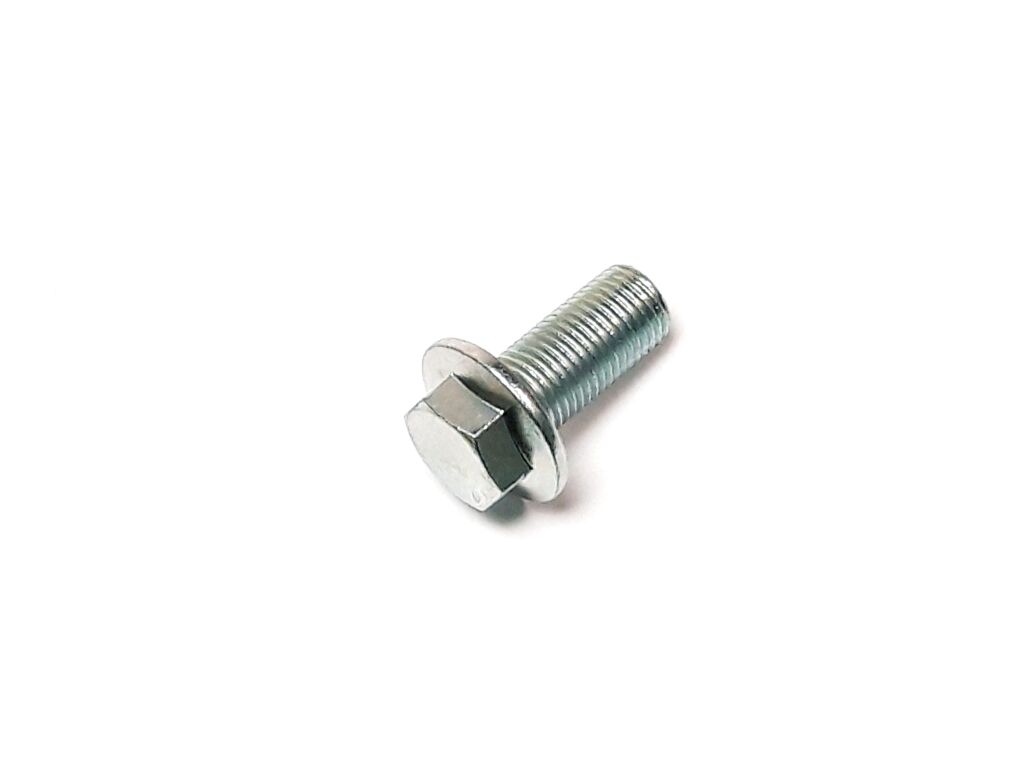

35 HEXAGON FLANGE BOLT M8×25 (Item nr. 35) Q01F40201001 HEXAGON FLANGE BOLT M8×25  1 € 2,48 € 3
IN STOCK
34 Q02F20003001 R/B Q02F20003002toQ02F20003004 SHIMS (UNAVAILABLE)  1 € 2,48 € 3
ON REQUEST
33 BG002760-61908-001 BEARING 61908  1 € 6,69 € 8
ON REQUEST
32 Q02-F102000-000-00 DRIVE AND DRIVEN BEVEL GEAR(450)  1 € 93,64 € 113
ON REQUEST
31 Q02-F301000-000-00 DIFFERENTIAL HOUSING  1 € 23,31 € 28
ON REQUEST
30 Q02-F301009-000-00 RIGHT HALF SHAFT GEAR GASKET  1 € 2,40 € 3
ON REQUEST
29 Q02-F301003-000-00 RIGHT HALF SHAFT BEVEL GEAR  1 € 8,43 € 10
ON REQUEST
40 O-RING 13×1.5 (Item nr. 40) Q02F00006001 O-RING 13×1.5  1 € 2,48 € 3
IN STOCK
41 PLUG M14×1.5×11 (Item nr. 41) Q02F00014001 PLUG M14×1.5×11  1 € 3,31 € 4
ON THE WAY

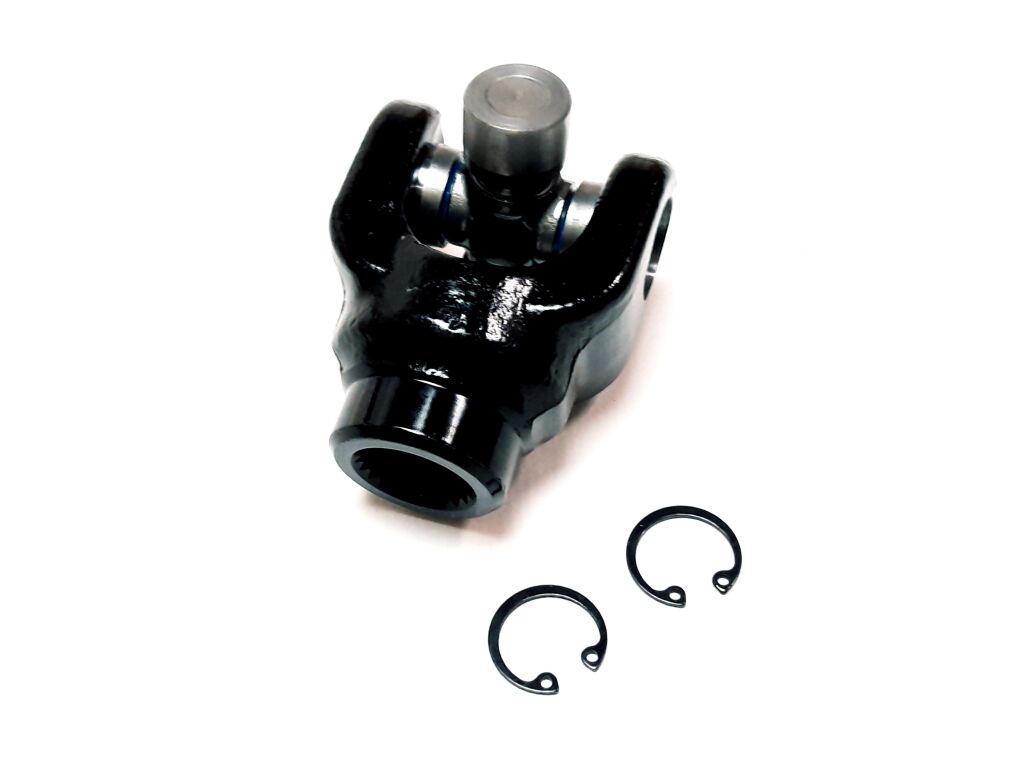

52 UNIVERSAL JOINT FORK 2 (Item nr. 52) Q02-R101027-000-00 UNIVERSAL JOINT FORK 2  1 € 30,33 € 37
IN STOCK
51 BOLT M14 ×1.5 × 30 (Item nr. 51) Q02-R101025-000-00 BOLT M14 ×1.5 × 30  1 € 2,40 € 3
IN STOCK

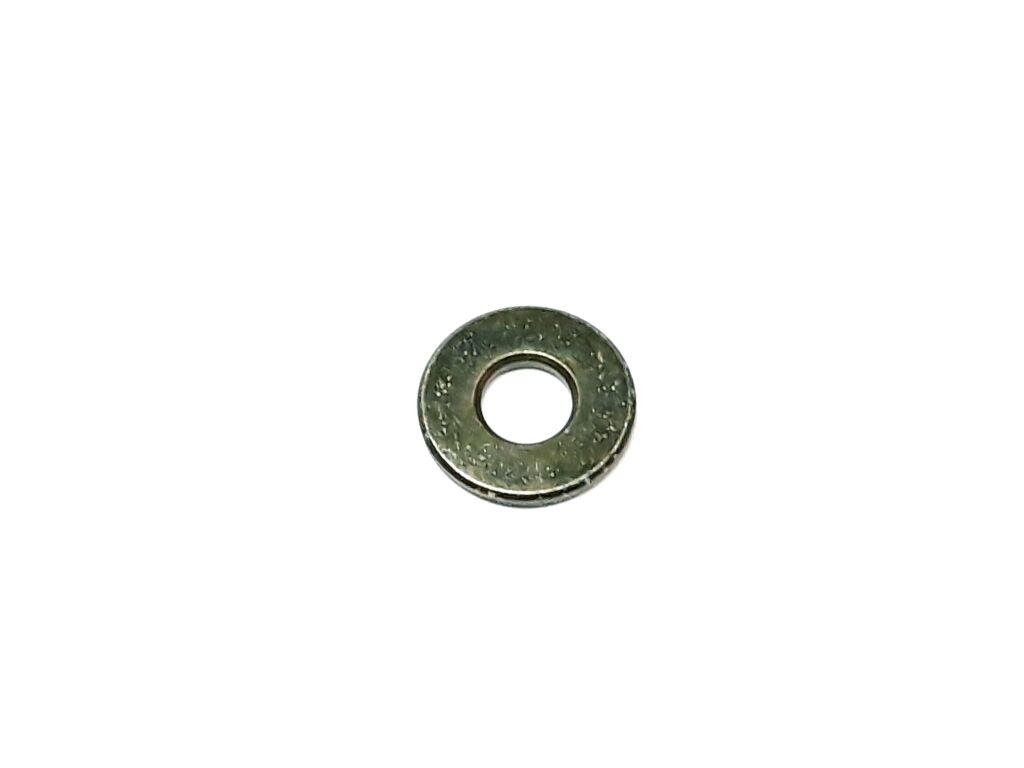

50 WASHER Φ14.5×Φ35.2×4 (Item nr. 50) Q02-R101007-000-00 WASHER Φ14.5×Φ35.2×4  1 € 2,40 € 3
IN STOCK

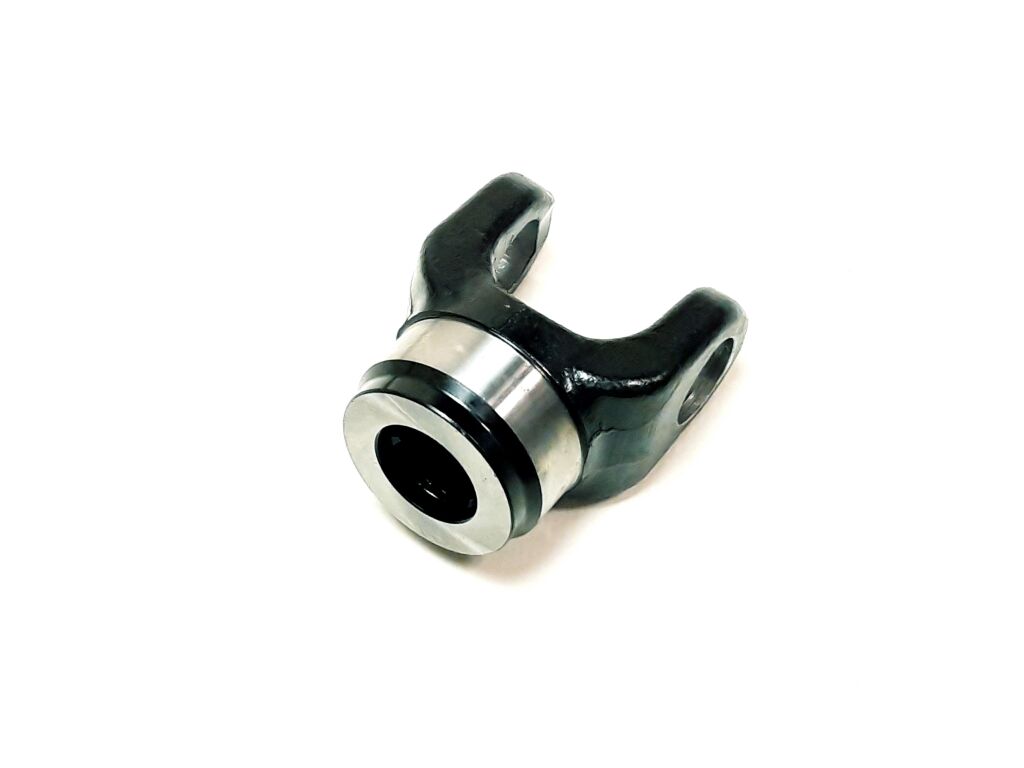

49 UNIVERSAL JOINT FORK 1 (Item nr. 49) Q02-F101002-000-00 UNIVERSAL JOINT FORK 1  1 € 29,50 € 36
ON THE WAY

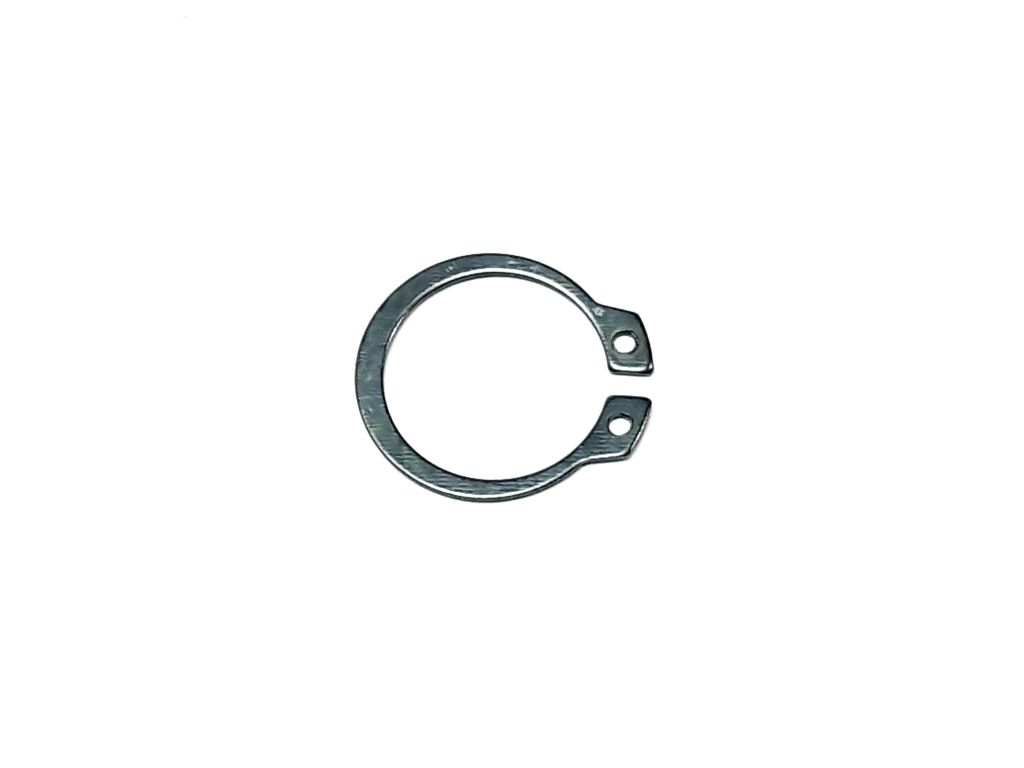

48 CIRCLIP 22 (Item nr. 48) BG008930-22000-F01 CIRCLIP 22  2 € 2,40 € 3
IN STOCK
47 OIL SEAL 48×65×9 (Item nr. 47) Q02F00004001 OIL SEAL 48×65×9  1 € 14,79 € 18
ON THE WAY
46 O-RING 26 × 2.7 (Item nr. 46) Q02-F101001-000-00 O-RING 26 × 2.7  1 € 2,40 € 3
IN STOCK
45 Q02-F401004-000-00 NUT M64 × 1.5  1 € 7,36 € 9
ON REQUEST
44 BEARING 6007 (Item nr. 44) GBT000276037 BEARING 6007  1 € 14,55 € 18
IN STOCK
43 NEEDLE BEARING HK152112 (Item nr. 43) Q02F40202001 NEEDLE BEARING HK152112  1 € 5,45 € 7
IN STOCK
42 Q02-F401001-000-00 FRONT AXLE BOX  1 € 47,36 € 57
ON REQUEST
28 Q02-F301006-000-00 PLANETARY GEAR SHAFT II  1 € 3,06 € 4
ON REQUEST
27 Q02-F301005-000-00 PLANETARY GEAR SHAFT I  2 € 3,06 € 4
ON REQUEST
26 Q02-F301007-000-00 PLANETARY SHAFT CARRIER  1 € 4,46 € 5
ON REQUEST
12 CLAMP,SPRINGBAND 11 (Item nr. 12) QCT006211003 CLAMP,SPRINGBAND 11  1 € 2,15 € 3
IN STOCK
11 AIR TAP (Item nr. 11) Q02F04103001 AIR TAP  1 € 4,88 € 6
ON REQUEST
10 Q02-F301013-000-00 SHIFT FORK  1 € 5,37 € 6
ON REQUEST
9 Q02-F301015-000-00 SLIDING RACK  1 € 3,47 € 4
ON REQUEST
8 O-RING 67.9×2.2 (Item nr. 8) Q03F40300001 O-RING 67.9×2.2  1 € 2,48 € 3
IN STOCK
7 BOLT M6×16 (Item nr. 7) F01000002001 BOLT M6×16  3 € 2,48 € 3
IN STOCK
6 FRONT AXLE SHIFT MOTOR ASSEMBLY (Item nr. 6) Q03F50100001 FRONT AXLE SHIFT MOTOR ASSEMBLY  1 € 96,78 € 117
IN STOCK
5 Q02-F301014-000-00 SHIFT FORK SHAFT  1 € 2,40 € 3
ON REQUEST
4 Q02-F401002-000-00 BOLT M8 × 12  1 € 2,40 € 3
ON REQUEST
3 Q02-F401000-000-00 FRONT AXLE BOX COVER  1 € 44,05 € 53
ON REQUEST
2 OIL SEAL 24×38×8 (Item nr. 2) Q02F00003001 OIL SEAL 24×38×8  2 € 9,17 € 11
IN STOCK
13 PIPE 600 (Item nr. 13) Q02F00005001 PIPE 600  1 € 6,69 € 8
IN STOCK
14 BEARING 16007 (Item nr. 14) GBT000276036 BEARING 16007  1 € 14,30 € 17
ON REQUEST
25 Q02-F301002-000-00 PLANETARY GEAR  4 € 4,46 € 5
ON REQUEST
24 Q02-F301008-000-00 PLANETARY GEAR GASKET  4 € 2,40 € 3
ON REQUEST
23 Q02-F301004-000-00 LEFT HALF SHAFT BEVEL GEAR  1 € 8,60 € 10
ON REQUEST
22 Q02-F301010-000-00 LEFT HALF SHAFT GEAR GASKET  1 € 2,40 € 3
ON REQUEST
21 Q02-F301001-000-00 DIFFERENTIAL COVER  1 € 13,97 € 17
ON REQUEST
20 GBT000701041 SCREWS M8×20  8 € 2,40 € 3
ON REQUEST
19 BEARING 61912 (Item nr. 19) GBT000276035 BEARING 61912  1 € 46,45 € 56
ON THE WAY
18 Q02F20007001 R/B Q02F20007002toQ02F20007004 REAR AXLE ASSEMBLY(WITH DIFFERENTIAL,NO ABS  1 € 2,07 € 3
ON REQUEST
17 Q02-F301011-000-00 COMBINATION SLEEVE  1 € 16,45 € 20
ON REQUEST
16 Q02-F301012-000-00 OUTPUT SLEEVE  1 € 13,72 € 17
ON REQUEST
15 CIRCLIP 62 (Item nr. 15) GBT000893008 CIRCLIP 62  1 € 2,48 € 3
IN STOCK
1 BOLT M8×30 (Item nr. 1) F01000015001 BOLT M8×30  7 € 2,48 € 3
IN STOCK
Product Code SEGWAY_1_114_AT5_E5
PARTS CATEGORY: ENGINE PARTS
Select BRAND: SEGWAY
Select TYPE: AT5
Select MODEL: AT5 S E5, AT5 L E5
