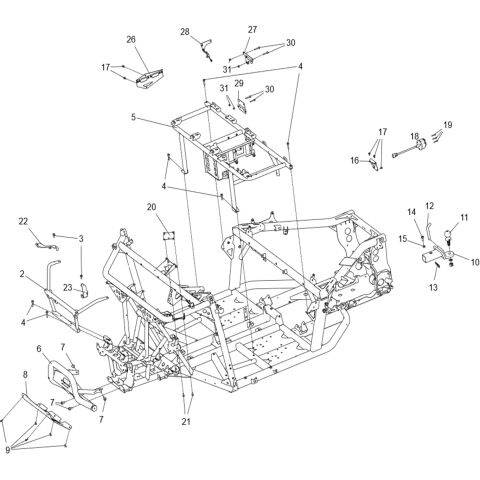

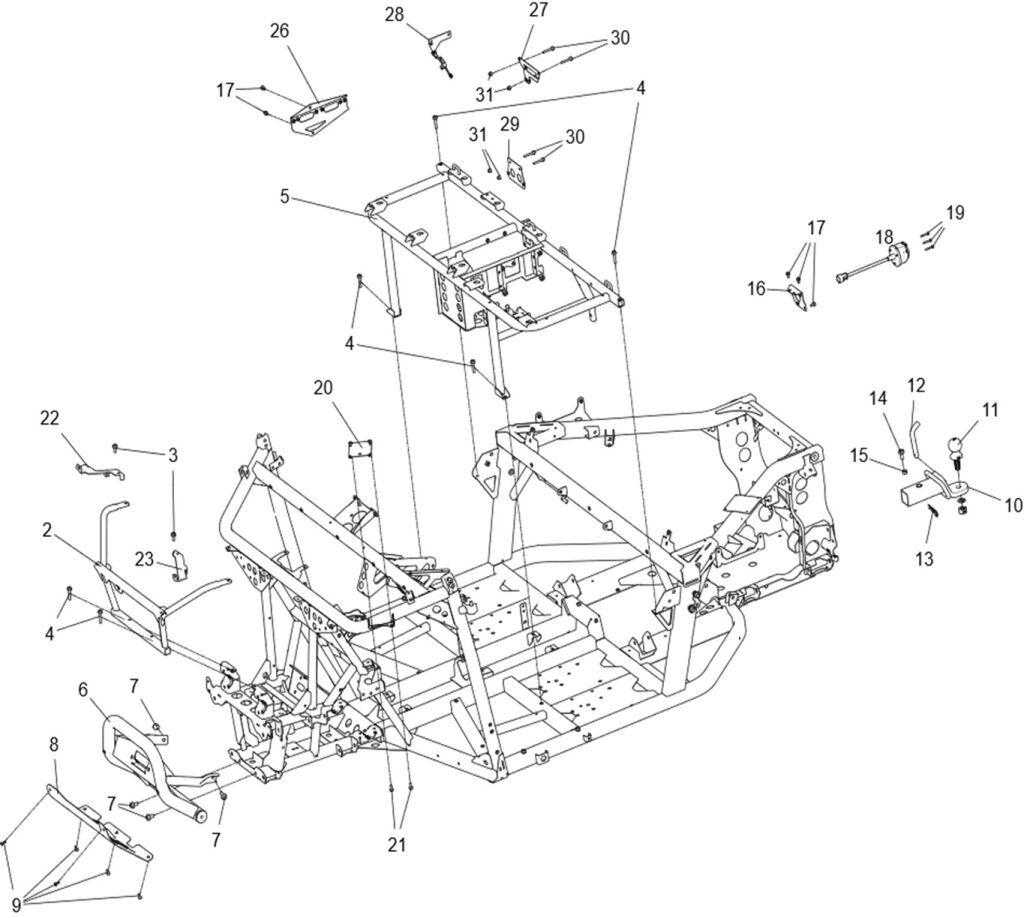

Frame assembly

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_236_UTV1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 U09-B020000-DB0-00 R/B U09-B020000-DB0-01 FRAME  1 € 2 551,24 € 3 087
ON REQUEST
16 U01C00070002 U01Trailer power mounting bracket ASSY  1 € 14,38 € 17
ON REQUEST
17 Bolt M6×12 (Item nr. 17) GBT005789006 Bolt M6×12  3 € 2,18 € 3
IN STOCK
18 U01M04500003 LOF TRAILER POWER SOCKET  1 € 38,51 € 47
ON REQUEST
18 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Item nr. 18) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
IN STOCK
19 CROSS RECESSED HEXAGON BOLTS M5×30 (Item nr. 19) GBT000818007 CROSS RECESSED HEXAGON BOLTS M5×30  3 € 2,48 € 3
IN STOCK
20 U01C01280002 T-BOX MOUNTING PLATE  1 € 15,70 € 19
ON REQUEST
21 Bolt M6×16 (Item nr. 21) GBT005789007 Bolt M6×16  2 € 2,18 € 3
IN STOCK
22 U09C24100002 HEADLIGHT BRACKET RIGHT  1 € 5,45 € 7
ON REQUEST
23 U09C23100002 HEADLIGHT BRACKET LEFT  1 € 5,45 € 7
ON REQUEST
24 Hexagon flange bolt M10×1.25×25 (Item nr. 24) GBT000701003 Hexagon flange bolt M10×1.25×25  2 € 2,48 € 3
IN STOCK
26 U01-C000030-DB0-00 RECTIFIER MOUNTING BRACKET ASSEMBLY  1 € 6,61 € 8
ON REQUEST
27 MOUNTING PLATE FOR FAN CONTROLLER (Item nr. 27) U09-M910030-DB0-00 MOUNTING PLATE FOR FAN CONTROLLER  1 € 2,64 € 3
IN STOCK
28 MIDDLE FAN BRACKET (Item nr. 28) U09-A400210-DB0-00 MIDDLE FAN BRACKET  1 € 3,97 € 5
IN STOCK
29 U01C00060002 U01 CONTROLLER SUPPORT LOF  1 € 14,46 € 18
ON REQUEST
30 BOLT M6×40 (Item nr. 30) GBT005789012 BOLT M6×40  4 € 2,48 € 3
IN STOCK
15 NUT M10×1.25 (Item nr. 15) GBT006170001 NUT M10×1.25  1 € 2,48 € 3
IN STOCK
14 Hexagon flange bolt M10×1.25×25 (Item nr. 14) GBT005789026 Hexagon flange bolt M10×1.25×25  1 € 2,48 € 3
IN STOCK
2 U09C26100002 FRONT BRACKET WELD ASSY  1 € 40,08 € 48
ON REQUEST
3 Hexagon flange bolt M8×25 (Item nr. 3) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
IN STOCK
4 HEXAGON FLANGE BOLT M8×40 (Item nr. 4) GBT005789019 HEXAGON FLANGE BOLT M8×40  6 € 2,18 € 3
IN STOCK
5 U01-C030000-DB0-00 SEAT LOWER BRACKET  1 € 135,54 € 164
ON REQUEST
6 U01 FRONT BUMPER WELD ASSY -RED (Item nr. 6) U01C01010003 U01 FRONT BUMPER WELD ASSY -RED  1 € 123,88 € 150
IN STOCK
6 U01C01010004 U01 FRONT BUMPER WELD ASSY -GREEN  1 € 123,88 € 150
ON REQUEST

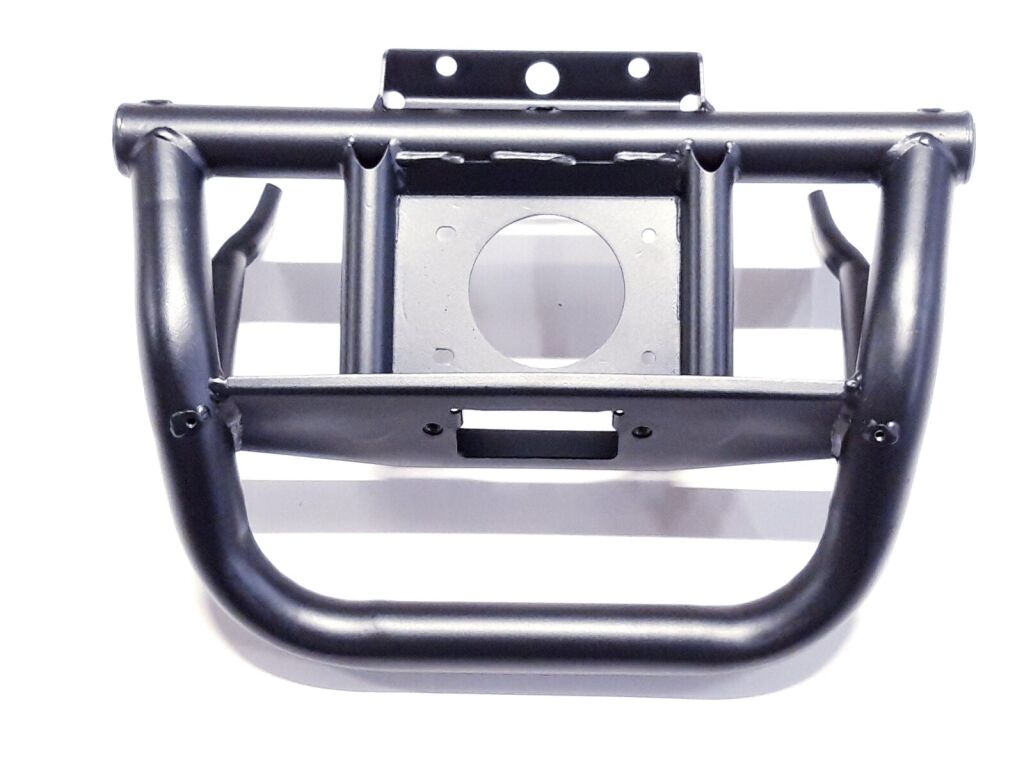

6 U01 FRONT BUMPER WELD ASSY -BLACK (Item nr. 6) U01C01010005 U01 FRONT BUMPER WELD ASSY -BLACK  1 € 123,88 € 150
IN STOCK
7 HEXAGON FLANGE BOLT M10×1.25×20 (Item nr. 7) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  2 € 2,18 € 3
IN STOCK

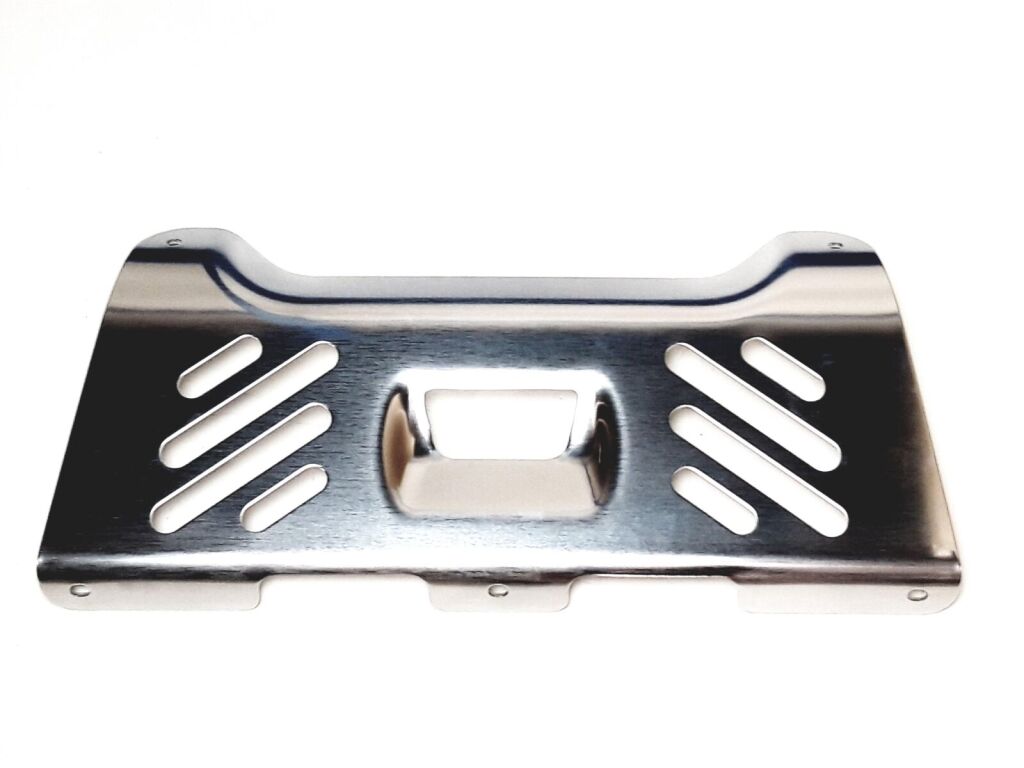

8 U01 FRONT BUMPER GUARD (AL) (Item nr. 8) U01C01020001 U01 FRONT BUMPER GUARD (AL)  1 € 40,33 € 49
IN STOCK
9 GBT166741060 BOLT M6×16  5 € 2,18 € 3
ON REQUEST
10 TRAILER WELDING COMBINATION GENERAL TYPE) (Item nr. 10) S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 € 45,79 € 55
IN STOCK
10 U01R21200004 TRAILER WELDING COMBINATION FOR LOF  1 € 44,46 € 54
ON REQUEST
11 TRAILER BALL（EU） (Item nr. 11) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 57
RE STOCKING
12 U01 TOWING HOOK BOLT 16 (Item nr. 12) U01R21300002 U01 TOWING HOOK BOLT 16  1 € 15,12 € 18
IN STOCK
13 LOCKING PIN 12 (Item nr. 13) QCT000623002 LOCKING PIN 12  1 € 2,48 € 3
ON THE WAY
31 NUT M6 (Item nr. 31) GBT061831002 NUT M6  4 € 2,18 € 3
IN STOCK
Product Code SEGWAY_2_236_UTV1000
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT10
