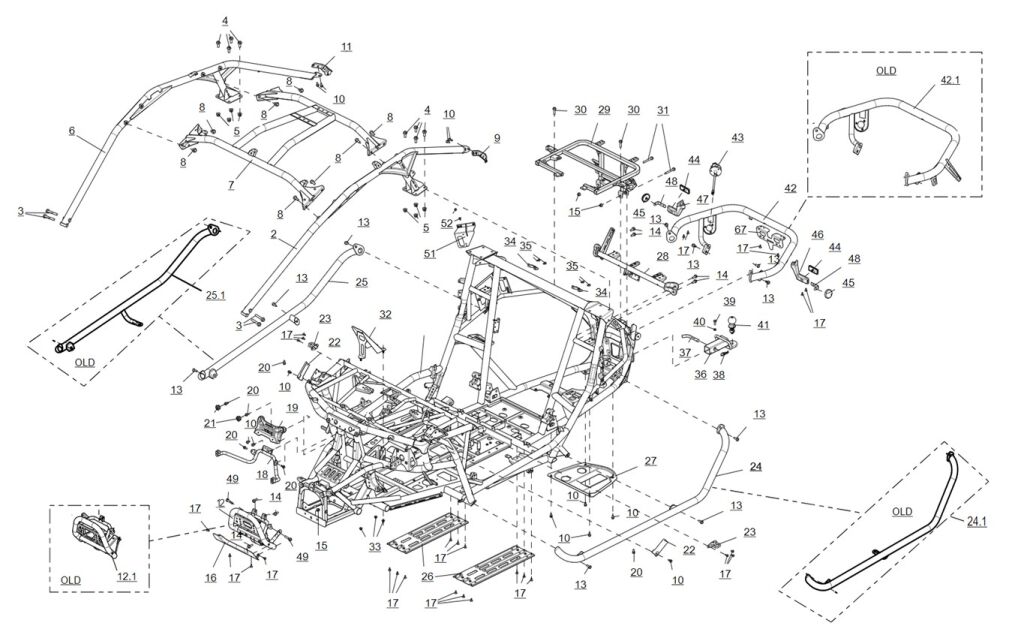

FRAME ASSEMBLY (EU NARROW VEHICLE VERSION)

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_232_UTV1000F-S3-23
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
24 S01-C023000-FB0-00 LEFT GUARD BAR(BLACK)  1 € 80,08 € 97
ON REQUEST
27 S05-C051000-DB0-00 ENGINE LOWER GUARD  1 € 24,13 € 29
ON REQUEST
28 S05B00300002 SAFETY BELT FIXING BRACKET COMBINATION  1 € 54,88 € 66
ON REQUEST
29 S05-C028000-DB0-00 REAR CARGO BOX BRACKET ASSEMBLY  1 € 59,17 € 72
ON REQUEST
30 HEXAGON FLANGE BOLT M10×1.25×40 (Item nr. 30) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  2 € 2,48 € 3
IN STOCK
31 HEXAGON FLANGE BOLT M10×1.25×75 (Item nr. 31) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  2 € 2,48 € 3
IN STOCK IN 29 days
32 S01C05400002 FRONT PASSENGER SEAT PEDAL ASSEMBLY  1 € 16,86 € 20
ON REQUEST
33 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 33) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  3 € 2,18 € 3
IN STOCK
34 S05C02812002 REAR CARGO BOX UPPER BRACKET  2 € 11,57 € 14
ON REQUEST
26 S01B37200002 MIDDLE BOTTOM GUARD COMBINATION(BLACK)  2 € 30,91 € 37
ON REQUEST
25,1 S01C02400005 RIGHT GUARD BAR (BLACK)  1 € 77,60 € 94
ON REQUEST
25,1 S01C02400003 RIGHT GUARD BAR (GREEN)  1 € 147,69 € 179
IN STOCK

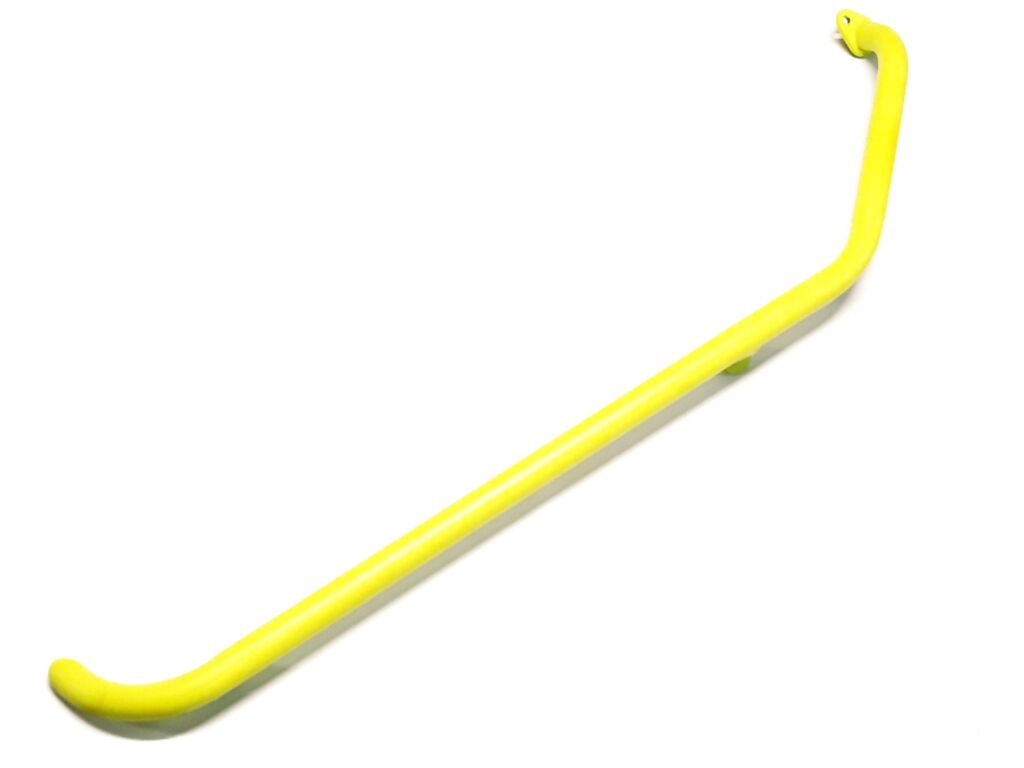

24 S01-C023000-FG0-00 LEFT GUARD BAR(GREEN)  1 € 80,08 € 97
IN STOCK

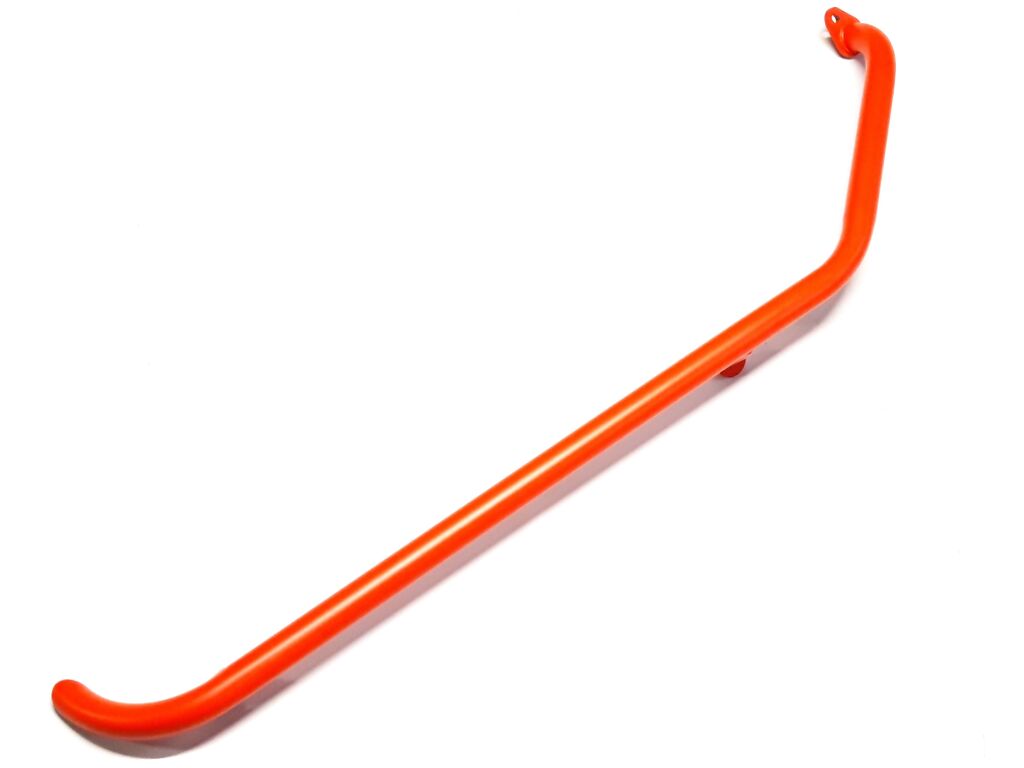

24 S01-C023000-FR0-00 LEFT GUARD BAR(RED)  1 € 80,08 € 97
IN STOCK
24,1 S01C02300002 LEFT GUARD BAR(RED)  1 € 111,40 € 135
ON REQUEST
24,1 S01C02300003 LEFT GUARD BAR(GREEN)  1 € 111,40 € 135
IN STOCK
24,1 S01C02300005 LEFT GUARD BAR(BLACK)  1 € 77,60 € 94
ON REQUEST
25 S01-C024000-FB0-00 RIGHT GUARD BAR (BLACK)  1 € 80,08 € 97
ON REQUEST

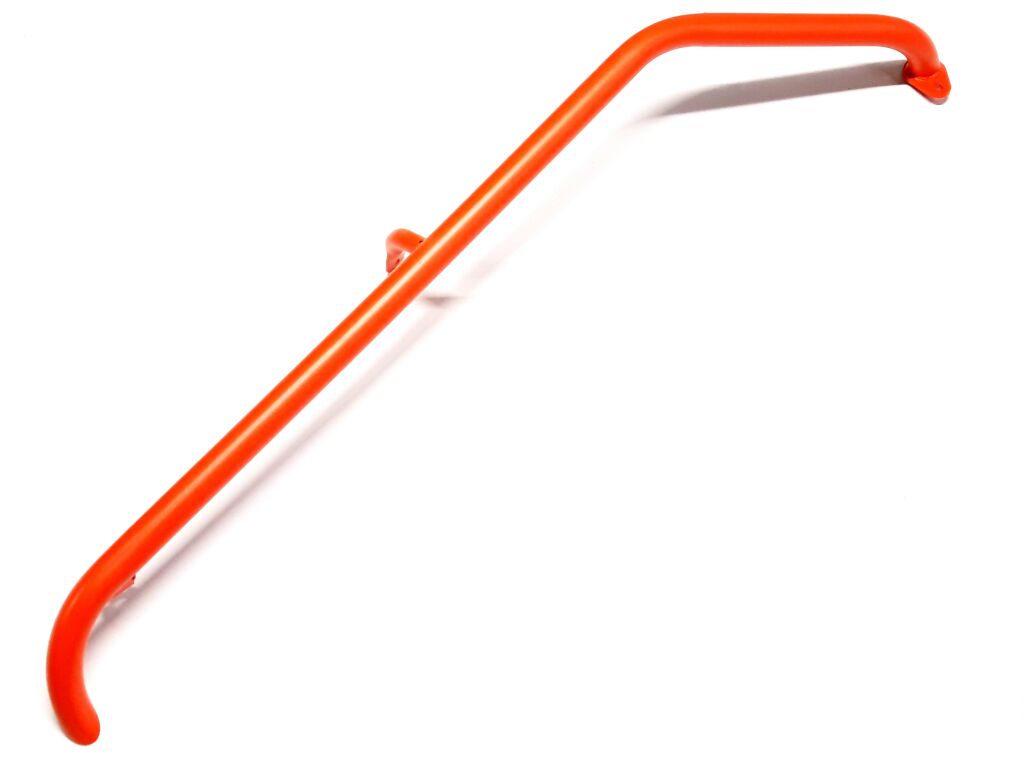

25 S01-C024000-FR0-00 RIGHT GUARD BAR (RED)  1 € 80,08 € 97
ON REQUEST
25,1 S01C02400002 RIGHT GUARD BAR (RED)  1 € 111,40 € 135
IN STOCK
35 Bolt M6×16 (Item nr. 35) GBT005789007 Bolt M6×16  4 € 2,18 € 3
IN STOCK
36 TRAILER WELDING COMBINATION GENERAL TYPE) (Item nr. 36) S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 € 45,79 € 55
IN STOCK
46 S05-H162020-0B0-00 REAR LEFT REFLECTOR SEAT  1 € 1,74 € 2
ON REQUEST
47 S05-H162021-0B0-00 REAR RIGHT REFLECTOR SEAT  1 € 1,74 € 2
ON REQUEST
48 S05-C012000-DB0-00 REFLECTOR BRACKET  1 € 3,80 € 5
ON REQUEST
49 BOLT M10×1.25×45 (Item nr. 49) GBT005789030 BOLT M10×1.25×45  1 € 2,48 € 3
IN STOCK
50 HEXAGON FLANGE BOLT M10×1.25×30 (Item nr. 50) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,48 € 3
IN STOCK

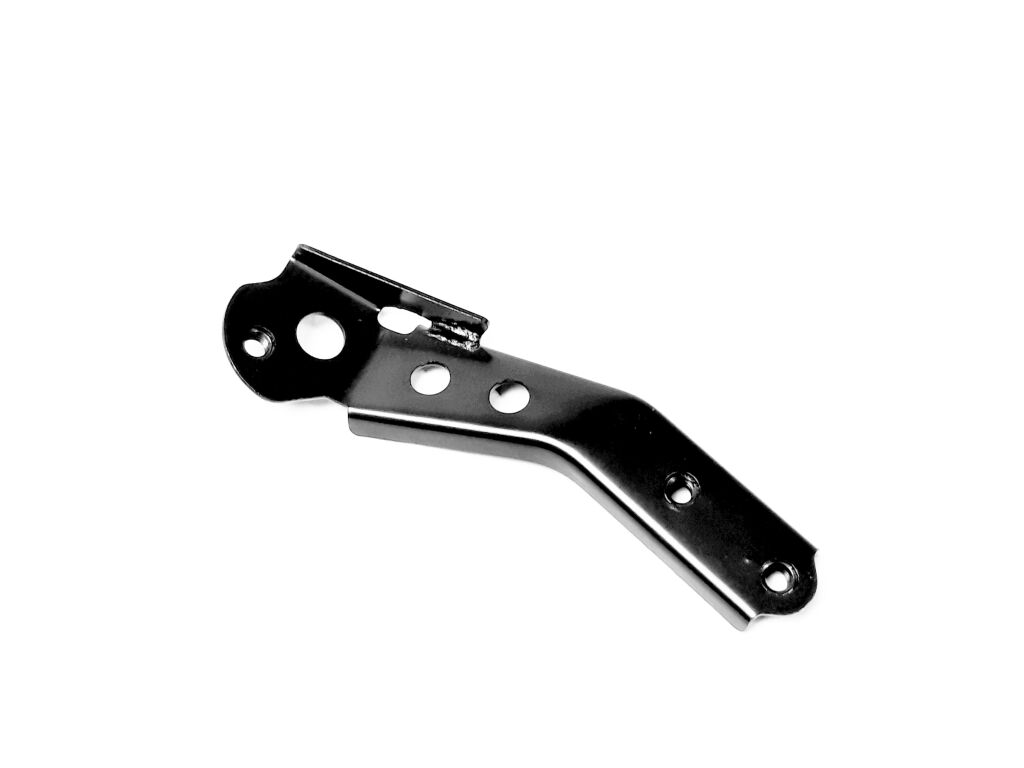

51 S05-C011000-DB0-00 RECTIFIER BRACKET  1 € 5,54 € 7
ON REQUEST
52 HEXAGON FLANGE BOLT M6×30 (Item nr. 52) GBT005789065 HEXAGON FLANGE BOLT M6×30  1 € 8,02 € 10
IN STOCK
53 REAR LICENSE PLATE LIGHT BRACKET (Item nr. 53) S01C02505002 REAR LICENSE PLATE LIGHT BRACKET  1 € 14,13 € 17
IN STOCK
45 CIRCULAR REFLECTOR (Item nr. 45) T10000001002 CIRCULAR REFLECTOR  2 € 2,18 € 3
IN STOCK

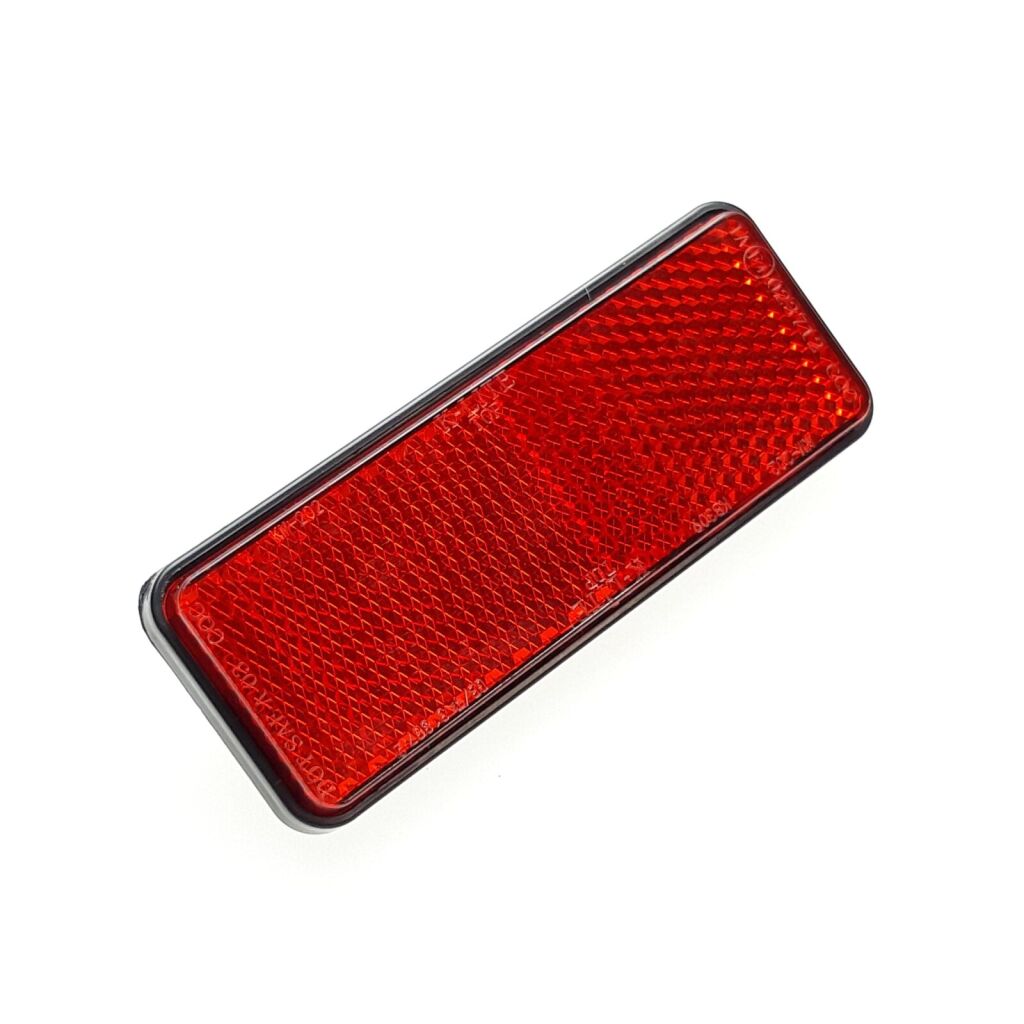

44 SQUARE REFLECTOR (Item nr. 44) T10000001003 SQUARE REFLECTOR  2 € 2,18 € 3
IN STOCK
43 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Item nr. 43) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
IN STOCK
37 U01 TOWING HOOK BOLT 16 (Item nr. 37) U01R21300002 U01 TOWING HOOK BOLT 16  1 € 15,12 € 18
IN STOCK
38 LOCKING PIN 12 (Item nr. 38) QCT000623002 LOCKING PIN 12  1 € 2,48 € 3
IN STOCK
39 Hexagon flange bolt M8×25 (Item nr. 39) GBT005789016 Hexagon flange bolt M8×25  1 € 2,18 € 3
IN STOCK
40 GBT006170004 TYPE 1 HEXAGON NUT M8  1 € 2,48 € 3
ON REQUEST
41 TRAILER BALL（EU） (Item nr. 41) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 57
IN STOCK
42 S05-C025500-FB0-01 REAR BUMPER(BLACK)  1 € 95,95 € 116
ON REQUEST
42 S05-C025500-FG0-01 REAR BUMPER(GREEN)  1 € 95,95 € 116
ON REQUEST
42 S05-C025500-FR0-01 REAR BUMPER(RED)  1 € 95,95 € 116
ON REQUEST

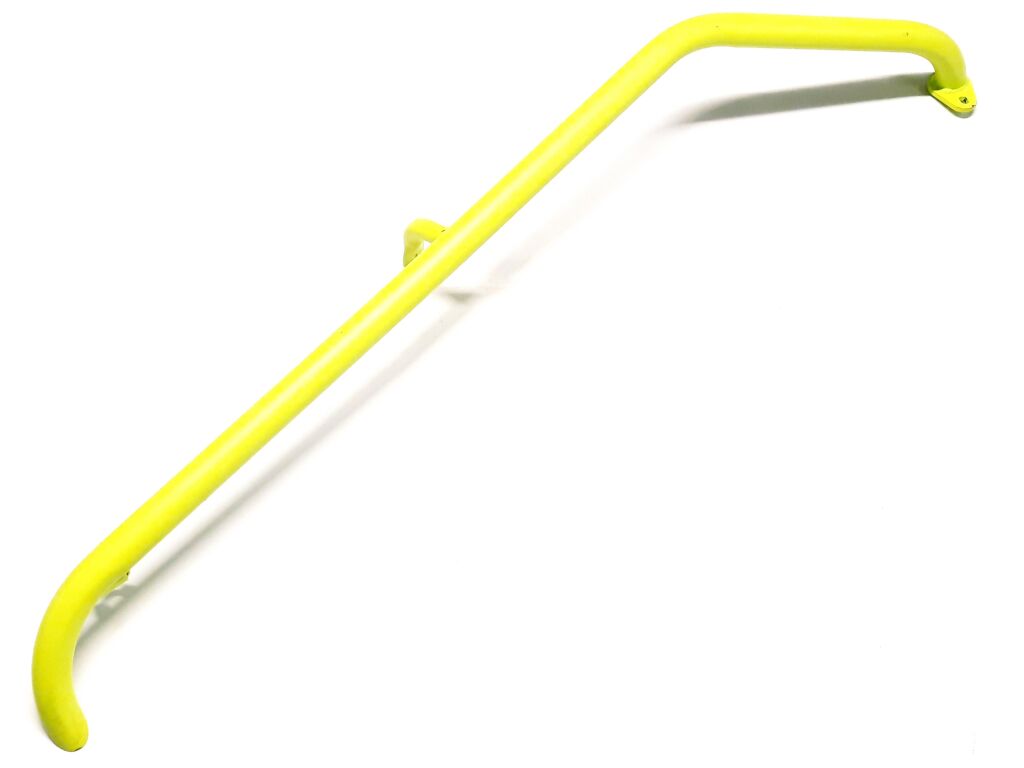

25 S01-C024000-FG0-00 R/B S01-C024000-FG0-01 RIGHT GUARD BAR (GREEN)  1 € 85,21 € 103
IN STOCK IN 29 days
23 S01C02000001 DOOR LATCH  1 € 1,90 € 2
ON THE WAY
1 S05B01000002 FRAME（RED)  1 € 3 867,36 € 4 679
IN STOCK
7 S03-C112000-FR0-01 TOP BEAM UPPER（RED）  1 € 288,60 € 349
ON REQUEST
7 S03-C112000-FG0-01 TOP BEAM UPPER (GREEN)  1 € 290,41 € 351
ON REQUEST
7 S03-C112000-FB0-01 TOP BEAM UPPER (BLACK)  1 € 288,60 € 349
ON THE WAY
8 GBT005789045 HEXAGON FLANGE BOLT M12×1.25×25  8 € 2,18 € 3
ON REQUEST
9 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX (Item nr. 9) S01C03700002 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX  1 € 12,40 € 15
IN STOCK
10 Bolt M8×16 (Item nr. 10) GBT005789014 Bolt M8×16  4 € 2,18 € 3
IN STOCK
11 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX (Item nr. 11) S01C03800002 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX  1 € 12,40 € 15
IN STOCK

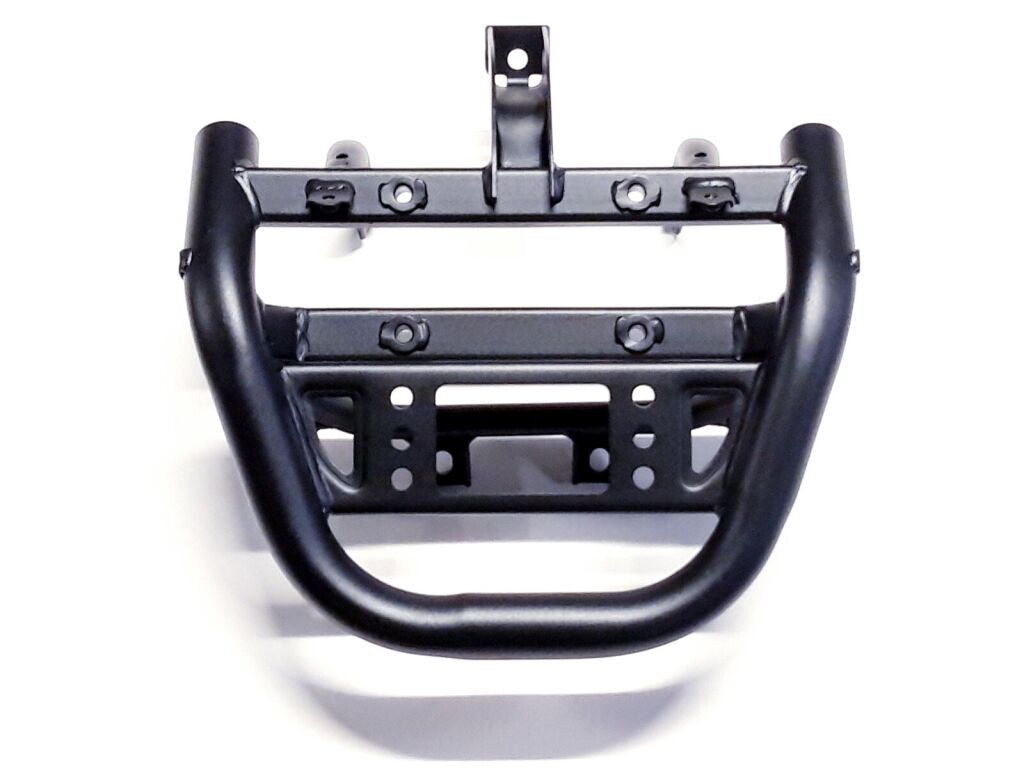

12 S05-C009000-FB0-00 FRONT BUMPER (BLACK)  1 € 101,90 € 123
IN STOCK IN 13 days
6 S03-C113000-FB0-01 TOP BEAM RIGHT(BLACK)  1 € 254,71 € 308
ON THE WAY
6 S03-C113000-FG0-01 TOP BEAM RIGHT(GREEN)  1 € 254,71 € 308
ON REQUEST
6 S03-C113000-FR0-01 TOP BEAM RIGHT(RED)  1 € 239,67 € 290
IN STOCK
1 S05B01000003 FRAME (GREEN)  1 € 3 867,36 € 4 679
ON REQUEST
1 S05B01000005 FRAME (BLACK)  1 € 3 927,44 € 4 752
ON REQUEST
2 S03-C111000-FR0-01 TOP BEAM LEFT(RED)  1 € 254,71 € 308
ON THE WAY
2 S03-C111000-FG0-01 TOP BEAM LEFT(GREEN)  1 € 254,71 € 308
IN STOCK
2 S03-C111000-FB0-01 TOP BEAM LEFT(BLACK）  1 € 254,71 € 308
ON THE WAY
3 HEX FLANGE BOLT M12×1.25×75 (Item nr. 3) GBT005789102 HEX FLANGE BOLT M12×1.25×75  4 € 2,48 € 3
IN STOCK
4 BOLT M12×1.25×30 (Item nr. 4) GBT005789054 BOLT M12×1.25×30  8 € 2,18 € 3
ON REQUEST
5 NUT M12×1.25 (Item nr. 5) GBT061832002 NUT M12×1.25  8 € 2,18 € 3
IN STOCK
12 S05-C009000-FG0-00 FRONT BUMPER (GREEN)  1 € 101,90 € 123
ON REQUEST
12 S05-C009000-FR0-00 FRONT BUMPER (RED)  1 € 101,90 € 123
ON REQUEST
18 FRAME FRONT SUPPORT ASSEMBLY (BLACK) (Item nr. 18) S05-C021000-DB0-00 FRAME FRONT SUPPORT ASSEMBLY (BLACK)  1 € 34,46 € 42
IN STOCK
19 S01C005A1002 FRONT SUPPORT UPPER CONNECTING PLATE（RED）  1 € 22,81 € 28
ON REQUEST
19 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN） (Item nr. 19) S01C005A1003 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）  1 € 22,81 € 28
ON REQUEST
20 BOLT M8×20 (Item nr. 20) GBT005789015 BOLT M8×20  8 € 2,18 € 3
IN STOCK
21 S01H21000001 DECORATIVE PLUG  2 € 2,48 € 3
ON REQUEST
22 S05B30050002 A-PILLAR DECORATION（RED）  2 € 6,20 € 8
ON REQUEST
22 S05B30050003 A-PILLAR DECORATION（GREEN）  2 € 41,90 € 51
ON REQUEST
22 S05B30050005 A-PILLAR DECORATION（BLACK）  1 € 5,95 € 7
ON REQUEST
17 Inner hexagon screws M6×1.6 (Item nr. 17) T03000007002 Inner hexagon screws M6×1.6  16 € 2,18 € 3
IN STOCK
16 BUMPER TRIM PANEL（SILVER GRAY） (Item nr. 16) S05-C030000-PW2-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 21,82 € 26
IN STOCK
16 BUMPER TRIM PANEL（FROSTED SILVER） (Item nr. 16) S05-C030000-PH1-00 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 21,82 € 26
ON REQUEST
12,1 FRONT BUMPER (RED) (Item nr. 12,1) S01C00600002 FRONT BUMPER (RED)  1 € 120 € 145
IN STOCK
12,1 S01C00600003 FRONT BUMPER (GREEN)  1 € 120 € 145
ON REQUEST
12,1 S01C00600005 FRONT BUMPER (BLACK)  1 € 100,41 € 121
ON REQUEST
13 HEXAGON FLANGE BOLT M10×1.25×20 (Item nr. 13) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  8 € 2,18 € 3
IN STOCK
14 Hexagon flange bolt M10×1.25×25 (Item nr. 14) GBT005789026 Hexagon flange bolt M10×1.25×25  5 € 2,48 € 3
IN STOCK
15 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 15) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  3 € 2,18 € 3
IN STOCK
16 S01C00700002 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 46,20 € 56
ON REQUEST
16 S01C00700003 R/B S05-C030000-PH1-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 46,20 € 56
ON REQUEST
23 GBT000701013 HEXAGON SOCKET HEAD CAP SCREW M8×12  2 € 2,48 € 3
ON REQUEST
