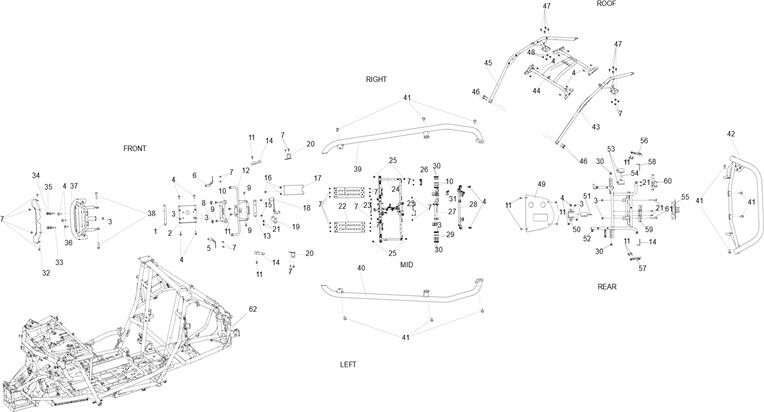

FRAME ASSEMBLY.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_233_UTV1000F-S8-24
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
62 S05-B000000-FG0-04 FRAME (GREEN)  1 € 3 119,44 € 3 775
ON REQUEST
42 S05-C031000-FR0-00 REAR BUMPER(RED)  1 € 99,37 € 120
ON REQUEST
43 S03-C111000-FB0-01 TOP BEAM LEFT(BLACK）  1 € 254,71 € 308
ON THE WAY
43 S03-C111000-FG0-01 TOP BEAM LEFT(GREEN)  1 € 254,71 € 308
IN STOCK
43 S03-C111000-FR0-01 TOP BEAM LEFT(RED)  1 € 254,71 € 308
ON THE WAY
44 S03-C112000-FB0-01 TOP BEAM UPPER (BLACK)  1 € 288,60 € 349
ON THE WAY
44 S03-C112000-FG0-01 TOP BEAM UPPER (GREEN)  1 € 290,41 € 351
ON REQUEST
44 S03-C112000-FR0-01 TOP BEAM UPPER（RED）  1 € 288,60 € 349
ON REQUEST
45 S03-C113000-FB0-01 TOP BEAM RIGHT(BLACK)  1 € 254,71 € 308
ON THE WAY
42 S05-C031000-FG0-00 REAR BUMPER(GREEN)  1 € 99,37 € 120
ON REQUEST
42 S05-C031000-FB0-00 REAR BUMPER(BLACK)  10 € 99,37 € 120
ON REQUEST
38 BOLT M10×1.25×45 (Item nr. 38) GBT005789030 BOLT M10×1.25×45  1 € 2,48 € 3
IN STOCK
39 S01-C024000-FB0-01 RIGHT GUARD BAR (BLACK)  2 € 87,75 € 106
ON REQUEST
39 S01-C024000-FG0-01 RIGHT GUARD BAR (GREEN)  1 € 87,75 € 106
ON REQUEST
39 S01-C024000-FR0-01 RIGHT GUARD BAR (RED)  1 € 87,75 € 106
ON REQUEST
40 S01-C023000-FB0-01 LEFT GUARD BAR(BLACK)  1 € 87,75 € 106
ON REQUEST
40 S01-C023000-FG0-01 LEFT GUARD BAR(GREEN)  1 € 88,43 € 107
IN STOCK
40 S01-C023000-FR0-01 LEFT GUARD BAR(RED)  1 € 87,75 € 106
ON THE WAY
41 HEXAGON FLANGE BOLT M10×1.25×20 (Item nr. 41) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  1 € 2,18 € 3
IN STOCK
45 S03-C113000-FG0-01 TOP BEAM RIGHT(GREEN)  1 € 254,71 € 308
ON REQUEST
45 S03-C113000-FR0-01 TOP BEAM RIGHT(RED)  1 € 239,67 € 290
IN STOCK
56 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX (Item nr. 56) S01C03800002 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX  1 € 12,40 € 15
IN STOCK
57 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX (Item nr. 57) S01C03700002 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX  1 € 12,40 € 15
IN STOCK
58 S05-C012000-DB0-00 REFLECTOR BRACKET  1 € 3,80 € 5
ON REQUEST
59 S05-C028100-DB0-00 AIR FILTER INSTALLATION BRACKET  2 € 5,10 € 6
ON REQUEST
60 S05-C028200-DB0-00 AIR FILTER INSTALLATION BRACKET 1  1 € 5 € 6
ON REQUEST
61 HEXAGON FLANGE BOLT M10×1.25×75 (Item nr. 61) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  1 € 2,48 € 3
IN STOCK IN 28 days
62 S05-B000000-FB0-04 FRAME (BLACK)  2 € 3 119,44 € 3 775
ON REQUEST
62 S05-B000000-FR0-04 FRAME（RED)  1 € 3 119,44 € 3 775
ON REQUEST
55 S03-C001000-DB0-00 REAR ARM MOUNTING PLATE  1 € 25,06 € 30
ON REQUEST
54 S05C00206002 ENGINE REAR LINER  2 € 12,07 € 15
ON REQUEST
46 HEX FLANGE BOLT M12×1.25×75 (Item nr. 46) GBT005789102 HEX FLANGE BOLT M12×1.25×75  1 € 2,48 € 3
IN STOCK
47 BOLT M12×1.25×30 (Item nr. 47) GBT005789054 BOLT M12×1.25×30  4 € 2,18 € 3
ON REQUEST
48 NUT M12×1.25 (Item nr. 48) GBT061832002 NUT M12×1.25  8 € 2,18 € 3
IN STOCK
49 S05-C051000-DB0-00 ENGINE LOWER GUARD  8 € 24,13 € 29
ON REQUEST
50 S05C00500002 ENGINE LOWER MOUNTING SEAT  1 € 11,82 € 14
ON REQUEST
51 S05C00400002 ENGINE LOWER BRACKET ASSEMBLY  1 € 24,13 € 29
ON REQUEST
52 S05-C028000-DB0-01 REAR CARGO BOX BRACKET  1 € 43,55 € 53
ON REQUEST
53 S05C00200002 ENGINE REAR LEFT BRACKET ASSEMBLY  1 € 22,64 € 27
ON REQUEST
37 S05-C009000-FG0-00 FRONT BUMPER (GREEN)  1 € 101,90 € 123
ON REQUEST
37 S05-C009000-FR0-00 FRONT BUMPER (RED)  1 € 101,90 € 123
ON REQUEST
37 S05-C009000-FB0-00 FRONT BUMPER (BLACK)  1 € 101,90 € 123
IN STOCK IN 12 days
11 Bolt M8×16 (Item nr. 11) GBT005789014 Bolt M8×16  12 € 2,18 € 3
IN STOCK
12 FRAME FRONT SUPPORT ASSEMBLY (BLACK) (Item nr. 12) S05-C021000-DB0-00 FRAME FRONT SUPPORT ASSEMBLY (BLACK)  1 € 34,46 € 42
IN STOCK
13 S01C00806002 STEERING CONTROLLER BRACKET  1 € 11,57 € 14
ON REQUEST
14 S05B30050003 A-PILLAR DECORATION（GREEN）  2 € 41,90 € 51
ON REQUEST
14 S05B30050004 A-PILLAR DECORATION（BLACK）  2 € 3,39 € 4
ON REQUEST
14 S05B30050005 A-PILLAR DECORATION（BLACK）  2 € 5,95 € 7
ON REQUEST
15 HEXAGON FLANGE BOLT M6×20 (Item nr. 15) GBT005789008 HEXAGON FLANGE BOLT M6×20  2 € 2,18 € 3
IN STOCK
16 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 16) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  3 € 2,18 € 3
IN STOCK
10 S01C005A1002 FRONT SUPPORT UPPER CONNECTING PLATE（RED）  1 € 22,81 € 28
ON REQUEST
10 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN） (Item nr. 10) S01C005A1003 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）  1 € 22,81 € 28
ON REQUEST
2 S05-C005000-DB0-00 LOWER BRACKET OF FRONT AXLE  1 € 21,49 € 26
ON REQUEST
3 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 3) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  9 € 2,18 € 3
IN STOCK
4 Hexagon flange bolt M10×1.25×25 (Item nr. 4) GBT005789026 Hexagon flange bolt M10×1.25×25  20 € 2,48 € 3
IN STOCK
5 HEADLAMP UPPER LEFT BRACKET ASSEMBLY (Item nr. 5) S01C04400002 HEADLAMP UPPER LEFT BRACKET ASSEMBLY  1 € 10,74 € 13
IN STOCK
6 S01C04500002 HEADLAMP UPPER RIGHT BRACKET ASSEMBLY  1 € 10,74 € 13
ON REQUEST
7 Inner hexagon screws M6×1.6 (Item nr. 7) T03000007002 Inner hexagon screws M6×1.6  30 € 2,18 € 3
IN STOCK
8 S01H21000001 DECORATIVE PLUG  2 € 2,48 € 3
ON REQUEST
9 BOLT M8×20 (Item nr. 9) GBT005789015 BOLT M8×20  4 € 2,18 € 3
IN STOCK
17 S01C05400002 FRONT PASSENGER SEAT PEDAL ASSEMBLY  1 € 16,86 € 20
ON REQUEST
19 S01-R090450-DB0-00 POWER DISTRIBUTOR BRACKET  1 € 5,25 € 6
ON REQUEST
30 HEXAGON FLANGE BOLT M10×1.25×40 (Item nr. 30) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  4 € 2,48 € 3
IN STOCK
31 S05-C022000-DB0-00 STARTING RELAY BRACKET  12 € 3,92 € 5
ON REQUEST
32 BUMPER TRIM PANEL（FROSTED SILVER） (Item nr. 32) S05-C030000-PH1-00 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 21,82 € 26
ON REQUEST
32 BUMPER TRIM PANEL（SILVER GRAY） (Item nr. 32) S05-C030000-PW2-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 21,82 € 26
IN STOCK
33 HEXAGON FLANGE BOLT M8×50 (Item nr. 33) GBT005789021 HEXAGON FLANGE BOLT M8×50  1 € 2,18 € 3
IN STOCK
34 WASHER 8 (Item nr. 34) GB0000093004 WASHER 8  4 € 2,18 € 3
IN STOCK
35 GASKET 8 (Item nr. 35) GBT000971010 GASKET 8  4 € 2,48 € 3
IN STOCK
36 HEXAGON FLANGE BOLT M10×1.25×30 (Item nr. 36) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  4 € 2,48 € 3
IN STOCK
29 S05-C006001-DB0-00 ENGINE CONNECTING PLATE  1 € 2,18 € 3
ON REQUEST
28 S05-C032000-DB0-00 SAFETY BELT FIXING BRACKET  1 € 50,07 € 61
ON REQUEST
20 S01C02000002 LOCK CATCH, DOOR (BLACK)  2 € 2,36 € 3
ON REQUEST
21 Bolt M6×16 (Item nr. 21) GBT005789007 Bolt M6×16  6 € 2,18 € 3
IN STOCK
22 S01B37200002 MIDDLE BOTTOM GUARD COMBINATION(BLACK)  16 € 30,91 € 37
ON REQUEST
23 S01C02613002 WATER PIPE (BLACK)  2 € 2,52 € 3
ON REQUEST
24 S03-C026002-DB0-01 SEAT MOUNTING BRACKET  2 € 124,39 € 151
ON REQUEST
25 HEXAGON FLANGE BOLT M8×40 (Item nr. 25) GBT005789019 HEXAGON FLANGE BOLT M8×40  1 € 2,18 € 3
IN STOCK
26 S01C03600002 BATTERY BAFFLE ASSEMBLY  4 € 13,22 € 16
ON REQUEST
27 S05-C006100-DB0-01 ENGINE FRONT BRACKET  1 € 64,01 € 77
ON REQUEST
1 S01-C010010-DB0-01 FRONT UPPER A-ARM PLATE  1 € 7,36 € 9
ON REQUEST
Product Code SEGWAY_2_233_UTV1000F-S8-24
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 DIFF (2024-xxxxx)
