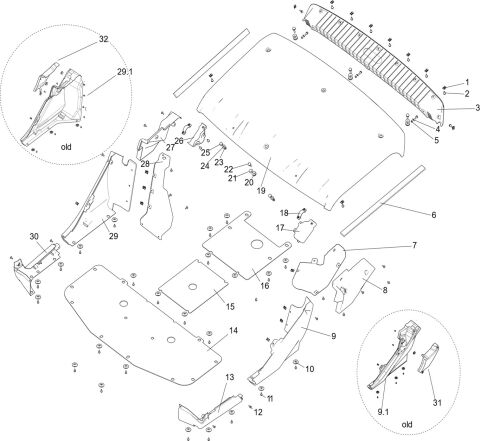

External plastic parts

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_4_450_UTV1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 M6 nut clip (Item nr. 1) T04000002001 M6 nut clip  13 € 2,18 € 3
IN STOCK
18 ROOF INNER COVER CLAMP (Item nr. 18) U09-H101003-0B0-00 ROOF INNER COVER CLAMP  2 € 2,40 € 3
IN STOCK
19 U01H13201001 U01 ROOF COVER PP BLACK  1 € 146,12 € 177
IN STOCK
20 U01 ROOF RUBBER RING (Item nr. 20) U01H13204001 U01 ROOF RUBBER RING  4 € 2,48 € 3
IN STOCK
21 T02000008001 ROOF BUSH  4 € 2,48 € 3
ON REQUEST
22 BOLT M8×35 (Item nr. 22) T03000008001 BOLT M8×35  4 € 2,18 € 3
IN STOCK
23 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 23) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  2 € 2,18 € 3
IN STOCK
24 LARGE WASHER A GRADE 8 (Item nr. 24) GBT000961003 LARGE WASHER A GRADE 8  2 € 2,48 € 3
IN STOCK
25 BOLT M8×25 (Item nr. 25) T03000008003 BOLT M8×25  2 € 2,48 € 3
IN STOCK
26 ROOF RIGHT INNER COVER (Item nr. 26) U09-H101002-0B0-00 ROOF RIGHT INNER COVER  1 € 2,40 € 3
IN STOCK
27 U01-H142110-0B0-00 RIGHT HANDLE SHIELD  1 € 7,44 € 9
ON REQUEST
28 RR INNER PLATE COVER (Item nr. 28) U01-H124130-0B0-00 RR INNER PLATE COVER  1 € 7,27 € 9
IN STOCK
29 U09-H124120-0B0-01 RR SIDE PLATE COVER  1 € 17,11 € 21
ON REQUEST
29,1 U09-H124120-0B0-00 RR SIDE PLATE COVER PP BLACK  1 € 32,48 € 39
ON REQUEST
30 U01 RF SIDE PLATE COVER PP BLACK (Item nr. 30) U01H12411001 U01 RF SIDE PLATE COVER PP BLACK  1 € 10,50 € 13
IN STOCK
31 OIL FILLER COVER PP BLACK (Item nr. 31) U09-H127100-0B0-00 OIL FILLER COVER PP BLACK  1 € 4,96 € 6
IN STOCK
17 ROOF LEFT INNER COVER (Item nr. 17) U09-H101001-0B0-00 ROOF LEFT INNER COVER  1 € 2,40 € 3
IN STOCK
16 U09-H101003-0B0-01 REAR SKID PLATE  1 € 44,79 € 54
ON REQUEST
2 BOLT M6×20 (Item nr. 2) T03000007001 BOLT M6×20  18 € 2,18 € 3
IN STOCK
3 U01H13203001 U01 ROOF EMPENNAGE COVER PP BLACK  1 € 31,40 € 38
ON REQUEST
4 WASHER Φ6 (Item nr. 4) GBT000961002 WASHER Φ6  3 € 2,48 € 3
IN STOCK
5 NUT M6 (Item nr. 5) GBT061831002 NUT M6  3 € 2,18 € 3
IN STOCK

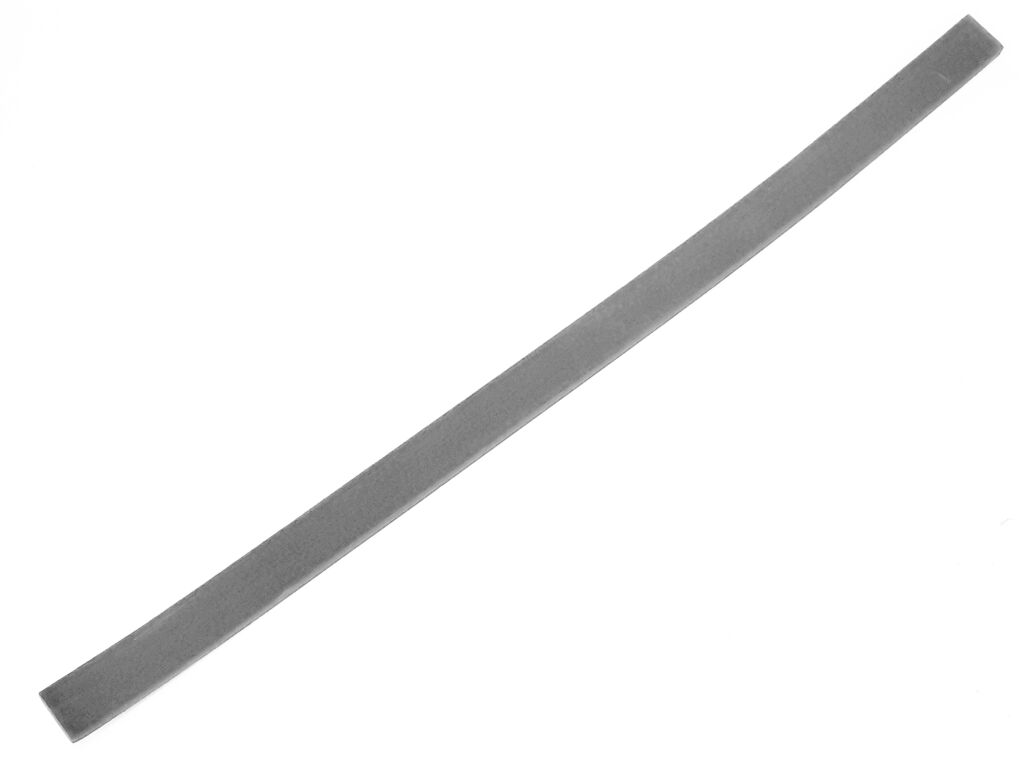

6 U01 ROOF COVER SEALING STRIP (Item nr. 6) U01H13205001 U01 ROOF COVER SEALING STRIP  2 € 2,48 € 3
IN STOCK
7 FUEL FILLER BAFFLE (Item nr. 7) U01-H232030-0B0-01 FUEL FILLER BAFFLE  1 € 6,36 € 8
IN STOCK
8 U01-H143110-0B0-00 LEFT HANDLE SHIELD  1 € 7,44 € 9
ON REQUEST
9 U09-H123120-0B0-01 LR SIDE PLATE COVER  1 € 15,87 € 19
ON REQUEST
9,1 U09-H123120-0B0-00 LR SIDE PLATE COVER  1 € 32,56 € 39
ON REQUEST
10 U01R10001001 WASHER  24 € 2,18 € 3
ON REQUEST
11 Bolt M6×16 (Item nr. 11) GBT005789007 Bolt M6×16  24 € 2,18 € 3
IN STOCK
12 Inner hexagon screws M6×1.6 (Item nr. 12) T03000007002 Inner hexagon screws M6×1.6  16 € 2,18 € 3
IN STOCK
13 U01 LF SIDE PLATE COVER PP BLACK (Item nr. 13) U01H12311001 U01 LF SIDE PLATE COVER PP BLACK  1 € 10,50 € 13
IN STOCK
14 U09-H101001-0K0-00 FRONT SKID PIATE  1 € 42,73 € 52
ON REQUEST
15 U09-H101002-0K0-00 MIDDLE SKID PIATE  1 € 10,17 € 12
ON REQUEST
32 U01H12810001 U01 CHARGING PORT COVER PP BLACK  1 € 7,19 € 9
ON REQUEST
Product Code SEGWAY_4_450_UTV1000
PARTS CATEGORY: BODY PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT10
