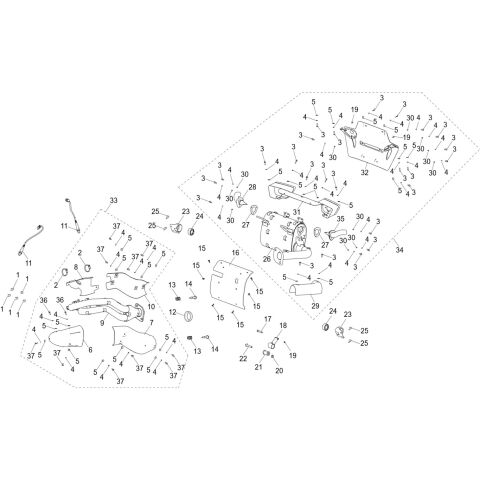

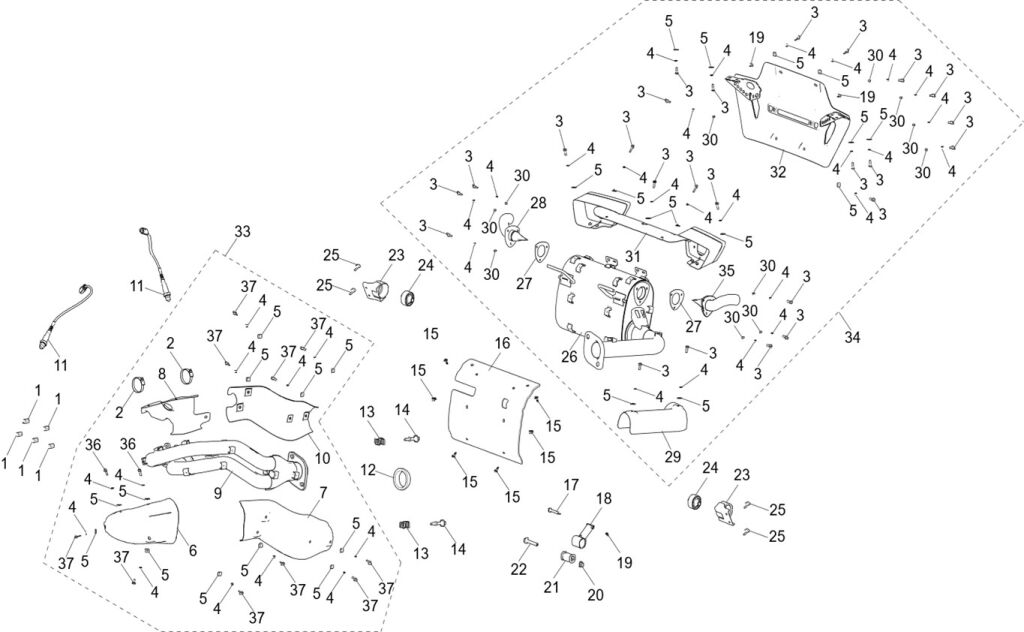

EXHAUST SYSTEM 2023MODEL

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_1_129_UTV1000F-S3-23
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 NUT (Item nr. 1) A03A30007001 NUT  5 € 2,48 € 3
ON REQUEST
21 ROCKER ARM BRACKET BUFFER BUSHING (Item nr. 21) A03A30001001 ROCKER ARM BRACKET BUFFER BUSHING  1 € 2,64 € 3
IN STOCK
22 BOLT M10×1.25×70 (Item nr. 22) GBT005789062 BOLT M10×1.25×70  1 € 2,40 € 3
IN STOCK
23 ENGINE UPPER SHOCK ABSORBER LOWER MOUNTING SEAT (Item nr. 23) S01C02900002 ENGINE UPPER SHOCK ABSORBER LOWER MOUNTING SEAT  2 € 12,93 € 16
IN STOCK
24 ENGINE UPPER DAMPING (Item nr. 24) S05-A380100-000-00 ENGINE UPPER DAMPING  2 € 6,09 € 7
ON REQUEST
25 Bolt M8×16 (Item nr. 25) GBT005789014 Bolt M8×16  4 € 2,18 € 3
IN STOCK
26 S03-A312000-000-00 MUFFLER BARREL  1 € 235,45 € 285
ON REQUEST
27 S03A31001001 TRIANGULAR GRAPHITE PAD  2 € 5,04 € 6
ON REQUEST
28 S03A31400001 RIGHT SPARK ARRESTER  1 € 27,93 € 34
ON REQUEST
29 S03-A310003-000-00 EXHAUST TAIL PIPE HEAT SHIELD  1 € 9,67 € 12
ON REQUEST
30 GBT000971003 FLAT WASHER 6  10
ON REQUEST
31 TAIL DECORATION COVER ASSEMBLY (Item nr. 31) S03A31700001 TAIL DECORATION COVER ASSEMBLY  1 € 141,16 € 171
IN STOCK
32 MUFFLER REAR DECORATIVE BOARD (Item nr. 32) S03A32000001 MUFFLER REAR DECORATIVE BOARD  1 € 61,90 € 75
IN STOCK
33 S05-A318000-000-00 EXHAUST PIPE FRONT ASSEMBLY  1 € 244,05 € 295
ON REQUEST
34 S05-A319000-000-00 MUFFLER BARREL ASSEMBLY  1 € 575,79 € 697
ON REQUEST
35 S03A31300001 LEFT SPARK ARRESTER  1 € 27,93 € 34
ON REQUEST
36 GBT005789143 HEXAGON FLANGE BOLT M6×14  2
ON REQUEST
20 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 20) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  1 € 2,18 € 3
IN STOCK
19 All metal hexagonal flange lock nut M6 (Item nr. 19) GBT061871002 All metal hexagonal flange lock nut M6  3 € 2,07 € 3
IN STOCK
18 S05-C008000-DB0-00 HANGING BUFFER BRACKET  1 € 8,51 € 10
ON THE WAY
2 A TYPE WORM DRIVE HOSE HOOP 50 (Item nr. 2) QCT000620004 A TYPE WORM DRIVE HOSE HOOP 50  2 € 2,48 € 3
IN STOCK
3 Bolt M6×16 (Item nr. 3) GBT005789007 Bolt M6×16  25 € 2,18 € 3
IN STOCK
4 WASHER 6 (Item nr. 4) GB0000093001 WASHER 6  37 € 2,48 € 3
IN STOCK
5 WASHER 6 (Item nr. 5) GBT000961007 WASHER 6  27 € 2,48 € 3
IN STOCK
6 S05-A310050-000-00 HEADER PIPE FRONT HEAT SHIELD  1 € 41,90 € 51
ON REQUEST
7 S05-A310060-000-00 REAR HEAT SHIELD OF EXHAUST FRONT PIPE  1 € 37,77 € 46
ON REQUEST
8 S05-A310100-000-00 EXHAUST PIPE INNER GUARD  1 € 31,40 € 38
ON REQUEST
9 S05A31100001 EXHAUST PIPE FRONT SECTION ASSEMBLY  1
ON REQUEST
10 S05A31007001 EXHAUST PIPE FRONT,INNER HEAT INSULATION BOARD  1 € 23,39 € 28
ON REQUEST
11 OXYGEN SENSOR (Item nr. 11) U01M44000001 OXYGEN SENSOR  2 € 124,88 € 151
ON THE WAY
12 U05 GRAPHITE SEAL SLEEVE (Item nr. 12) U05A31001001 U05 GRAPHITE SEAL SLEEVE  1 € 5,79 € 7
IN STOCK
13 Spring,exhaust pipe install (Item nr. 13) A01A32005001 Spring,exhaust pipe install  2 € 3,32 € 4
IN STOCK
14 Bolt,exhaust pipe connect (Item nr. 14) A01A32004001 Bolt,exhaust pipe connect  2 € 2,18 € 3
IN STOCK
15 COMBINATION BOLT M6×16 (Item nr. 15) T03000006002 COMBINATION BOLT M6×16  6 € 2,15 € 3
IN STOCK
16 MUFFLER FRONT HEAT SHIELD (Item nr. 16) S03-A310070-000-00 MUFFLER FRONT HEAT SHIELD  1 € 14,38 € 17
IN STOCK
17 BOLT M6×40×10 (Item nr. 17) T03000006003 BOLT M6×40×10  1 € 1,74 € 2
IN STOCK
37 Bolt M6×12 (Item nr. 37) GBT005789006 Bolt M6×12  10 € 2,18 € 3
IN STOCK
Product Code SEGWAY_1_129_UTV1000F-S3-23
PARTS CATEGORY: ENGINE PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 (2023-xxxx)
