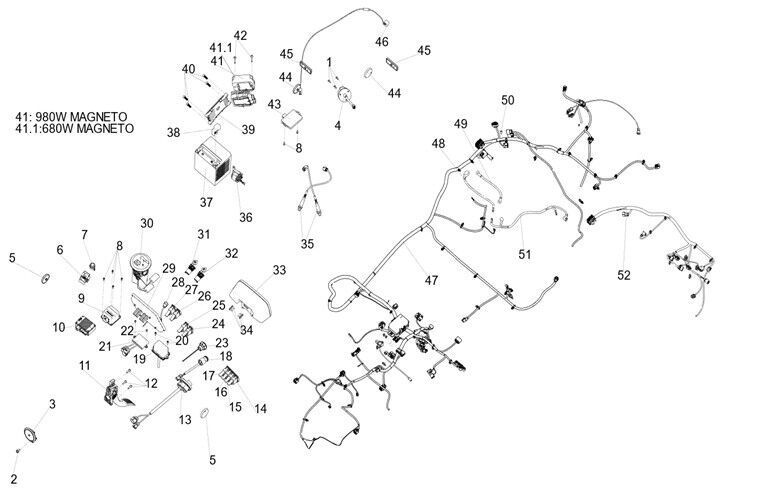

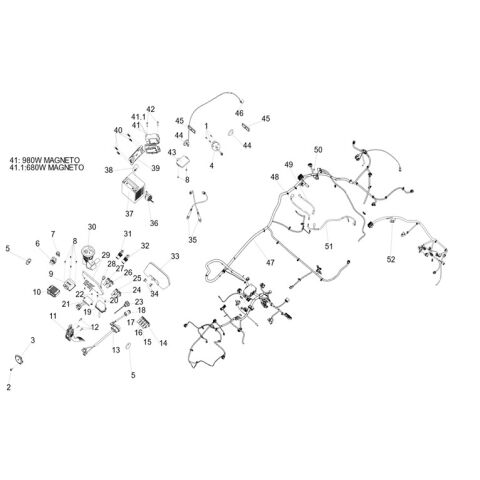

ELECTRICAL ASSEMBLY (EU) 2024.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_3_352_UTV1000F-S8-24
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
52 S05-M112001-000-00 EFI AUXILIARY CABLE  1 € 109,23 € 132
ON REQUEST
37 A01M04500001 BATTERY 32AH (unavailable)  1 € 183,23 € 222
ON REQUEST
36 STARTING RELAY (Item nr. 36) U09-M042000-000-00 STARTING RELAY  1 € 21,82 € 26
IN STOCK IN 9 days
35 OXYGEN SENSOR (Item nr. 35) U01M44000001 OXYGEN SENSOR  2 € 124,88 € 151
ON THE WAY
34 Inner hexagon screws M6×1.6 (Item nr. 34) T03000007002 Inner hexagon screws M6×1.6  4 € 2,18 € 3
IN STOCK
33 DASHBOARD (Item nr. 33) S05M31000001 DASHBOARD  1 € 558,43 € 676
IN STOCK
32 USB POWER OUTPUT (Item nr. 32) U01M04300001 USB POWER OUTPUT  1 € 30,83 € 37
ON REQUEST
31 12V POWER OUTPUT (Item nr. 31) U01M04200001 12V POWER OUTPUT  1 € 13,02 € 16
IN STOCK IN 9 days
30 S03M43000001 OIL PUMP ASSEMBLY  1 € 105,70 € 128
ON REQUEST
29 CENTRAL DISPLAY (Item nr. 29) S03M32000001 CENTRAL DISPLAY  1 € 3 572,56 € 4 323
IN STOCK IN 9 days
27 MODEL SWITCH (Item nr. 27) S01M51800001 MODEL SWITCH  1 € 11,90 € 14
IN STOCK
38 BATTERY TERMINALS (Item nr. 38) A01-M045000-000-00 BATTERY TERMINALS  1 € 3,64 € 4
IN STOCK
40 SCREWS M8×25 (Item nr. 40) GBT000701016 SCREWS M8×25  4 € 2,48 € 3
IN STOCK
41 RECTIFIER (Item nr. 41) A01M04300001 RECTIFIER  2 € 115,21 € 139
IN STOCK
51 STARTING MOTOR WIRE (Item nr. 51) S05-M141000-000-00 STARTING MOTOR WIRE  1 € 29,46 € 36
IN STOCK
50 Bolt M6×12 (Item nr. 50) GBT005789006 Bolt M6×12  5 € 2,18 € 3
IN STOCK
49 S05-M146000-000-00 BATTERY POSITIVE WIRE  1 € 8,95 € 11
ON REQUEST
48 S05-M147000-000-00 BATTERY NAGATIVE WIRE  1 € 10,60 € 13
ON REQUEST
47 S05-M111003-000-00 MAIN CABLE  1 € 486,43 € 589
ON REQUEST
46 S10-M380001-0B0-00 REAR CAMERA  1 € 125,18 € 151
ON REQUEST
45 SQUARE REFLECTOR (Item nr. 45) T10000001003 SQUARE REFLECTOR  2 € 2,18 € 3
ON REQUEST
44 CIRCULAR REFLECTOR (Item nr. 44) T10000001002 CIRCULAR REFLECTOR  2 € 2,18 € 3
IN STOCK
42 HEXAGON FLANGE BOLT M6×30 (Item nr. 42) GBT005789065 HEXAGON FLANGE BOLT M6×30  4 € 8,02 € 10
IN STOCK
41,1 A01-M044000-000-00 RECTIFIER 30A  2 € 44,71 € 54
ON REQUEST
26 HORN SWITCH (Item nr. 26) S01M51700001 HORN SWITCH  1 € 11,16 € 13
IN STOCK
25 RELEASE SWITCH (Item nr. 25) S01M51500001 RELEASE SWITCH  1 € 12,07 € 15
IN STOCK
11 U01 ELECRRONIC ASSELERATOR PEDAL ASSY (Item nr. 11) U01M42000001 U01 ELECRRONIC ASSELERATOR PEDAL ASSY  1 € 48,63 € 59
IN STOCK
10 S05M06100002 EPS CONTROLLER  1 € 358,60 € 434
ON REQUEST
9 R/B U06-M340001-000-00 T-BOX Segway (Item nr. 9) S01M34000001 R/B U06-M340001-000-00 T-BOX Segway  1 € 379,26 € 459
ON REQUEST
8 CROSS RECESSED HEXAGON BOLTS M5×16 (Item nr. 8) GBT000818005 CROSS RECESSED HEXAGON BOLTS M5×16  6 € 2,48 € 3
IN STOCK
7 BUZZER (Item nr. 7) U01M33000001 BUZZER  1 € 69,26 € 84
IN STOCK
6 FLASHER (Item nr. 6) S01-M041000-000-00 FLASHER  1 € 26,61 € 32
ON THE WAY
5 CIRCULAR REFLECTOR (Item nr. 5) T10000001001 CIRCULAR REFLECTOR  2 € 2,18 € 3
IN STOCK
4 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Item nr. 4) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
IN STOCK
3 HORN (Item nr. 3) U01M02200001 HORN  1 € 6,21 € 8
ON THE WAY
2 Bolt M8×16 (Item nr. 2) GBT005789014 Bolt M8×16  1 € 2,18 € 3
IN STOCK
12 HEXAGON FLANGE BOLT M6×20 (Item nr. 12) GBT005789008 HEXAGON FLANGE BOLT M6×20  3 € 2,18 € 3
IN STOCK
13 2/4 WD SWITCH (Item nr. 13) U01-M550000-000-00 2/4 WD SWITCH  1 € 631,32 € 764
IN STOCK
14 HEADLIGHT SWITCH (Item nr. 14) S01M51100001 HEADLIGHT SWITCH  1 € 10 € 12
IN STOCK
24 IGNITION OFF SWITCH (Item nr. 24) S01M51600001 IGNITION OFF SWITCH  1 € 8,84 € 11
IN STOCK
23 U01 STAR BUTTON ASSY (Item nr. 23) U01M56000001 U01 STAR BUTTON ASSY  1 € 40,66 € 49
IN STOCK
22 CROSS RECESSED HEXAGON SCREW ST4.8×16 (Item nr. 22) GBT000845014 CROSS RECESSED HEXAGON SCREW ST4.8×16  2 € 2,48 € 3
IN STOCK
21 INSTRUMENT CONTROL MODULE (Item nr. 21) S03M31100001 INSTRUMENT CONTROL MODULE  1 € 146,45 € 177
IN STOCK
20 SCREW M5×20 (Item nr. 20) GBT000818006 SCREW M5×20  2 € 2,48 € 3
IN STOCK
19 ANTENNA ASSY (Item nr. 19) S01M32100001 ANTENNA ASSY  1 € 91,16 € 110
IN STOCK
18 SET OF LOCK COMPONENTS-EUROPEAN STANDARD_WITHOUT START BUTTON (Item nr. 18) U09M57000001 SET OF LOCK COMPONENTS-EUROPEAN STANDARD_WITHOUT START BUTTON  1 € 21,90 € 27
ON REQUEST
17 EMERGENCY SWITCH (Item nr. 17) S01M51400001 EMERGENCY SWITCH  1 € 8,84 € 11
IN STOCK
16 TURN SIGNAL SWITCH (Item nr. 16) S01M51300001 TURN SIGNAL SWITCH  1 € 9,59 € 12
ON THE WAY
15 HIGH AND LOW BEAM SWITCH (Item nr. 15) S01M51200001 HIGH AND LOW BEAM SWITCH  1 € 9,59 € 12
IN STOCK
1 S03M14100001 R/B S05-M141000-000-00 STARTER MOTOR POSITIVE AND NEGATIVE WIRE  1 € 40 € 48
ON REQUEST
Product Code SEGWAY_3_352_UTV1000F-S8-24
PARTS CATEGORY: ELECTRICAL PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 DIFF (2024-xxxxx)
