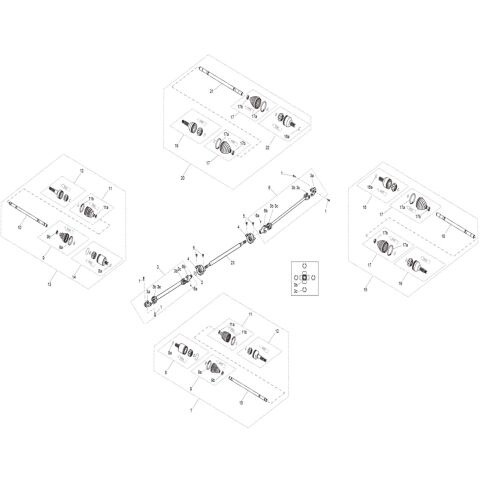

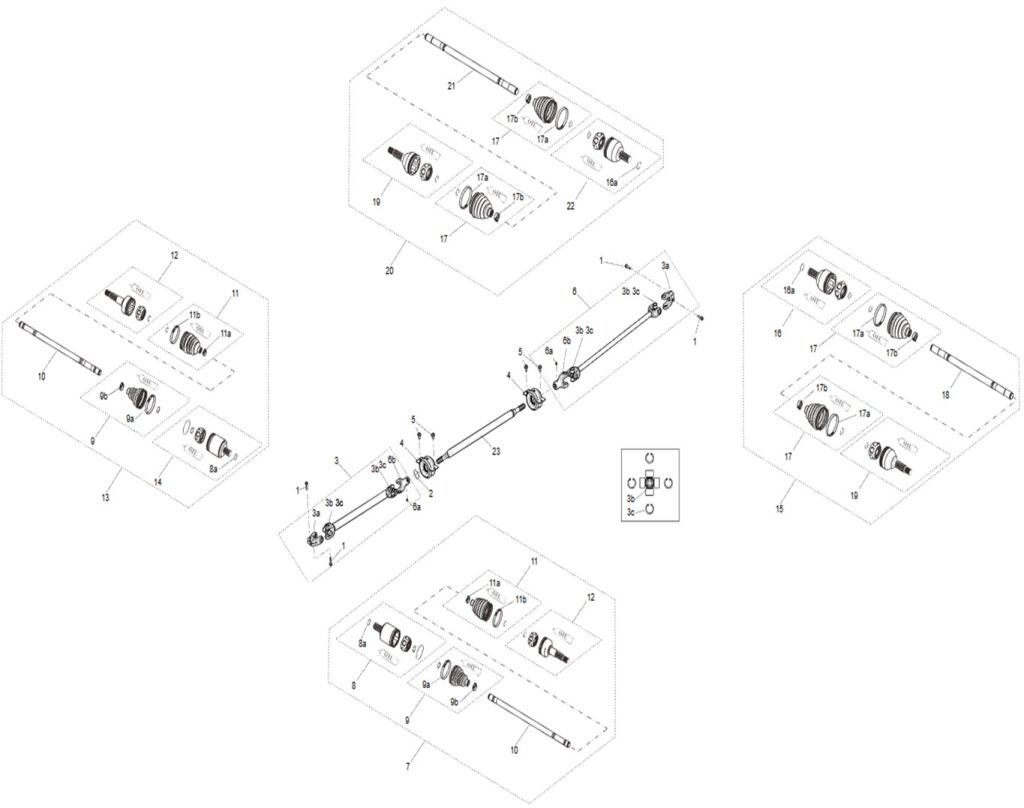

Drive Shaft Assembly

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_246_UT10_CREW_U5
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 BOLT M8×35 (Item nr. 1) A03F11001101 BOLT M8×35  4 € 2,40 € 3
IN STOCK
11a U01P11004001 SMALL CLAMPING BAND  1 € 2,48 € 3
ON THE WAY
11b U01P11002001 BIG CLAMPING BAND  1 € 2,48 € 3
ON THE WAY

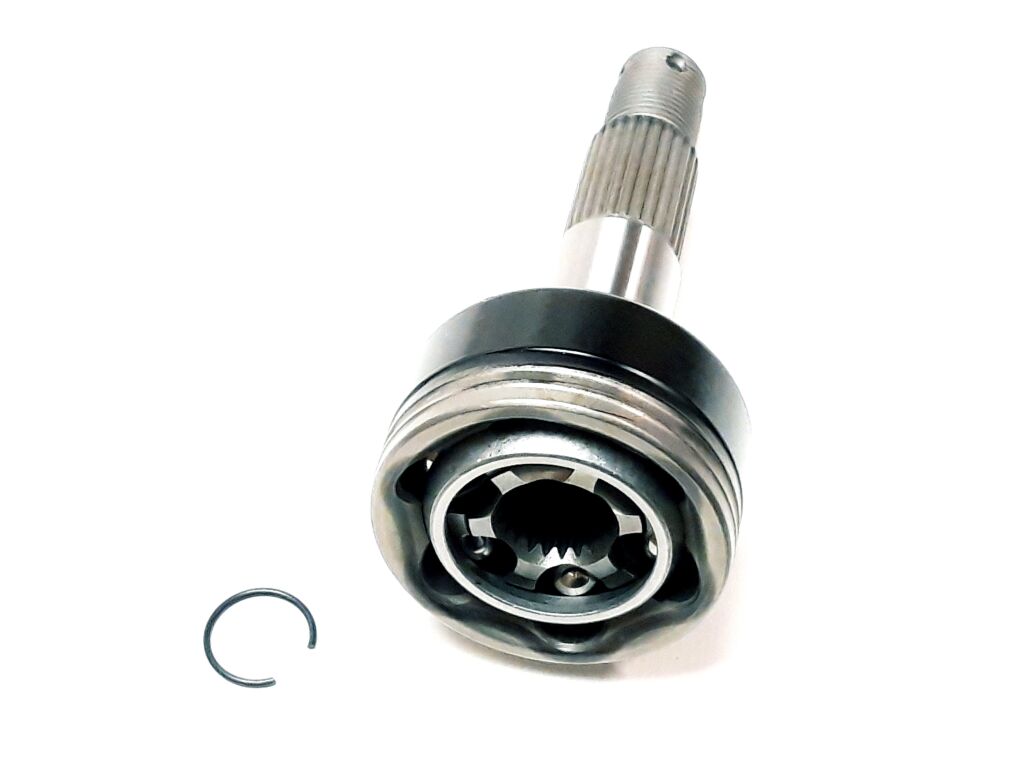

12 OUTSIDE BALL CAGE ASSY (Item nr. 12) U01P11020001 OUTSIDE BALL CAGE ASSY  1 € 56,45 € 68
IN STOCK
13 U01_CONSTANT VELOCITY DRIVE SHAFT FR (Item nr. 13) U01P12000001 U01_CONSTANT VELOCITY DRIVE SHAFT FR  1 € 147,77 € 179
ON REQUEST
14 U01P12030001 FR INNER BALL CAGE ASSY  1 € 56,45 € 68
ON REQUEST

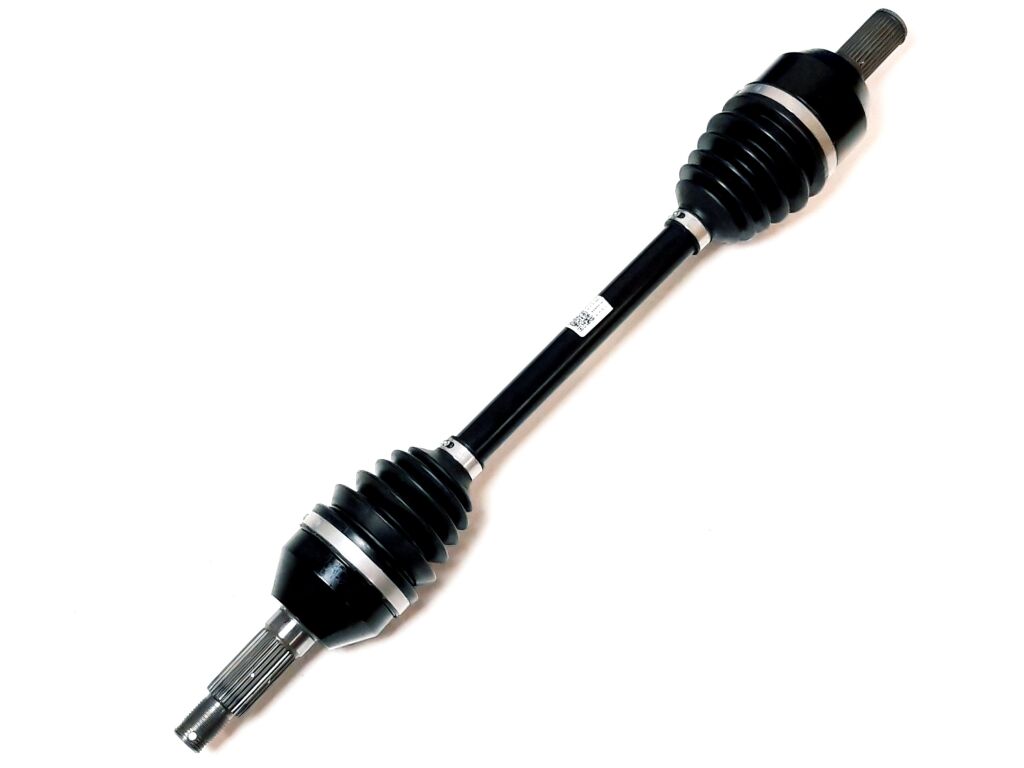

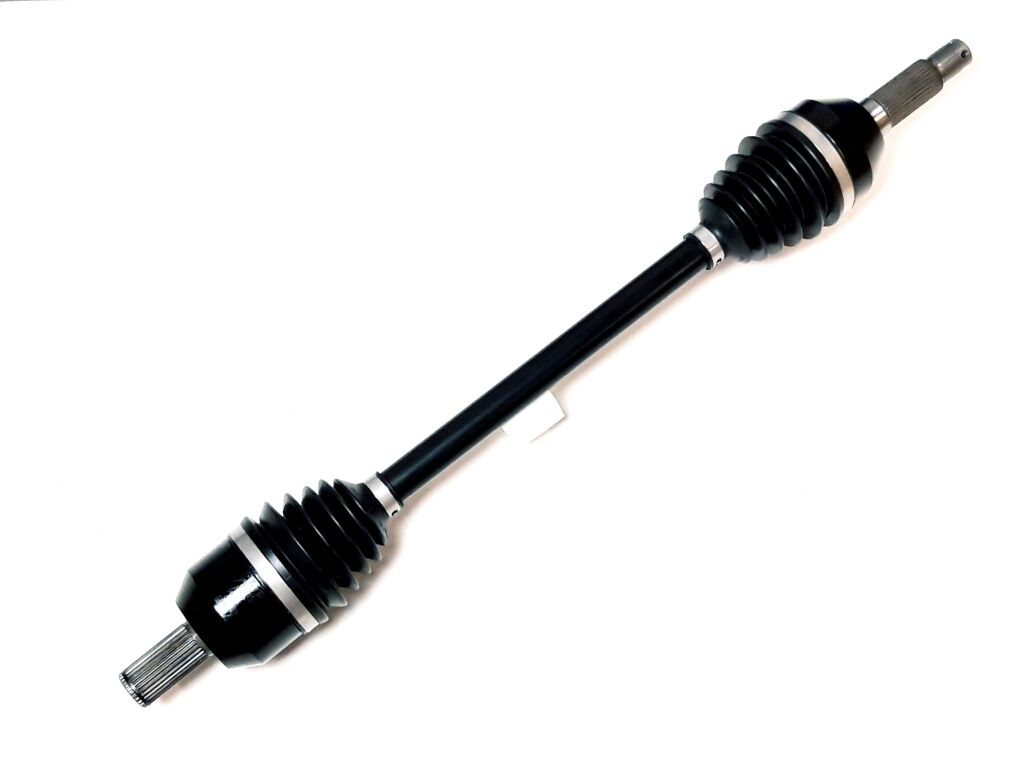

15 U09_CONSTANT VELOCITY DRIVE SHAFT RL (Item nr. 15) U09P14000001 U09_CONSTANT VELOCITY DRIVE SHAFT RL  1 € 167,11 € 202
IN STOCK
16 U09P14020001 RL INNER BALL CAGE ASSY  1 € 19,34 € 23
ON REQUEST
16a U09P13006001 CIRCLIP  1 € 2,48 € 3
ON REQUEST

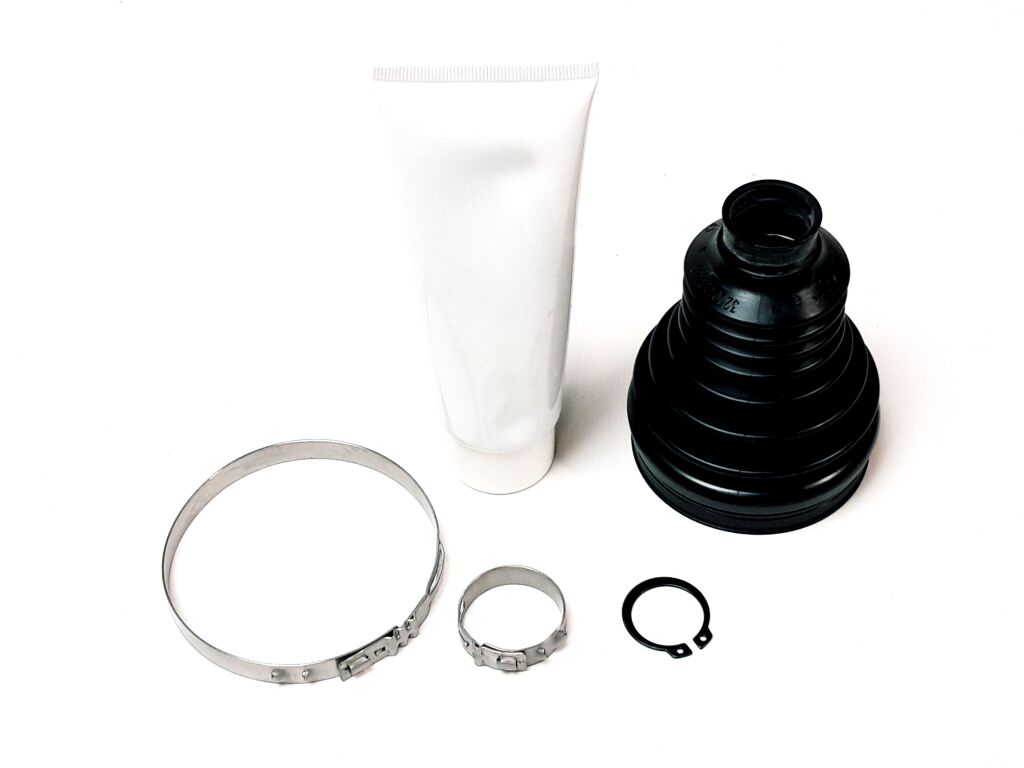

17 MAINTENANCE KIT FOR REAR SHAFT ASSY (Item nr. 17) U09P13030001 MAINTENANCE KIT FOR REAR SHAFT ASSY  2 € 19,34 € 23
IN STOCK
17a U09P13002001 BIG CLAMPING BAND  2 € 2,48 € 3
ON REQUEST
17b U09P13004001 SMALL CLAMPING BAND  2 € 2,48 € 3
ON REQUEST
18 U09P14005001 RL SHAFT  1 € 35,54 € 43
ON REQUEST
19 U09P13010001 OUTSIDE BALL CAGE ASSY  1 € 60,50 € 73
ON REQUEST

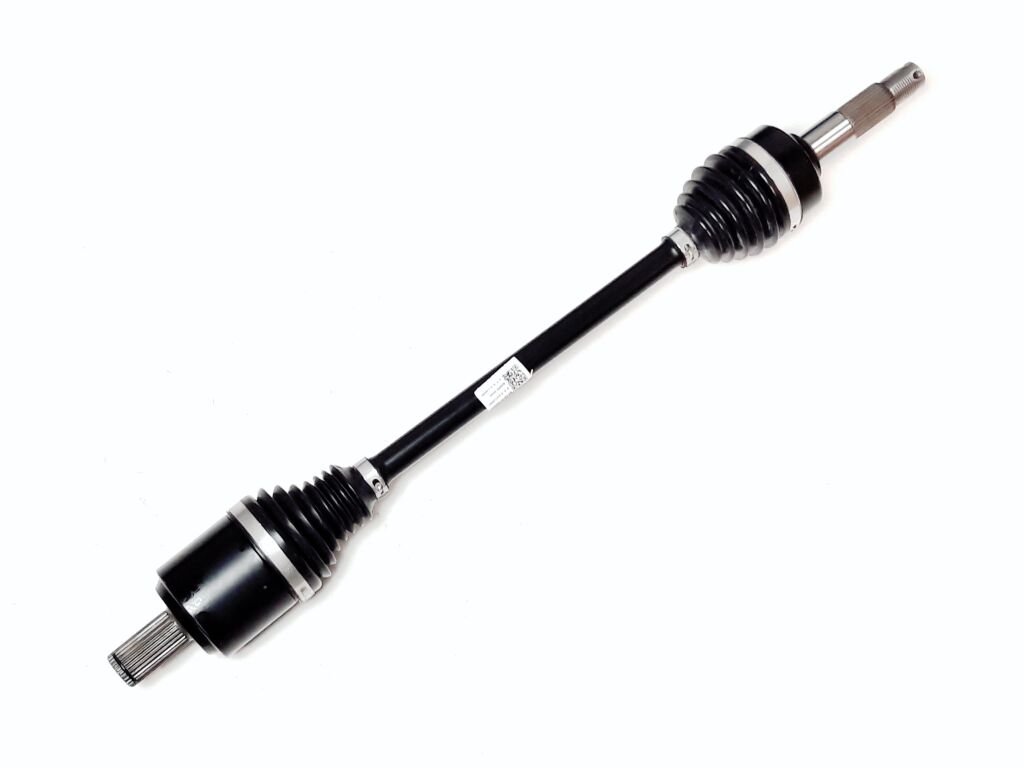

20 U09_CONSTANT VELOCITY DRIVE SHAFT RR (Item nr. 20) U09P13000001 U09_CONSTANT VELOCITY DRIVE SHAFT RR  1 € 167,93 € 203
IN STOCK
21 U09P13005001 RR SHAFT  1 € 35,54 € 43
ON REQUEST
22 U09P13020001 RR INNER BALL CAGE ASSY  1 € 61,32 € 74
ON REQUEST
11 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY (Item nr. 11) U01P11050001 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY  1 € 14,79 € 18
IN STOCK
10 U01P11005001 SHAFT  1 € 32,31 € 39
ON REQUEST
2 GBT000894012 CIRCLIP 30  1 € 2,48 € 3
ON REQUEST
3 S03P21100002 FRONT DRIVE SHAFT FRONT SECTION ASSEMBLY  1 € 137,02 € 166
ON REQUEST
3a U01P21101001 TRANSMISSION SHAFT MOUNTING SPLINE FORK  2 € 30,83 € 37
ON REQUEST
3b UNIVERRSAL CROSS SHAFT ASSY (Item nr. 3b) U01P22010001 UNIVERRSAL CROSS SHAFT ASSY  4 € 23,80 € 29
IN STOCK
3c CIRCLIP 25 (Item nr. 3c) GBT000893007 CIRCLIP 25  16 € 2,48 € 3
IN STOCK
4 INTERMEDIATE SUPPORT SEAT (Item nr. 4) U01P21400001 INTERMEDIATE SUPPORT SEAT  2 € 35,04 € 42
IN STOCK IN 17 days
5 Hexagon flange bolt M10×1.25×25 (Item nr. 5) GBT005789026 Hexagon flange bolt M10×1.25×25  4 € 2,48 € 3
IN STOCK

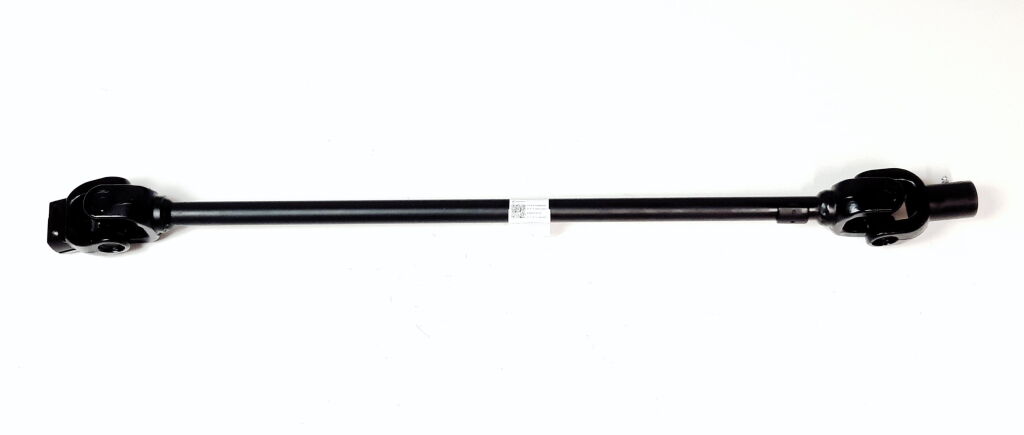

6 U09 REAR SECTION FRONT TRANSMISSION SHAFT (Item nr. 6) U09P21300001 U09 REAR SECTION FRONT TRANSMISSION SHAFT  1 € 115,21 € 139
IN STOCK
6a Straight pressure oil cup (Item nr. 6a) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
IN STOCK
6b U09P21301001 TRANSMISSION SHAFT SLIDING SPLINE FORK  2 € 35,62 € 43
ON REQUEST

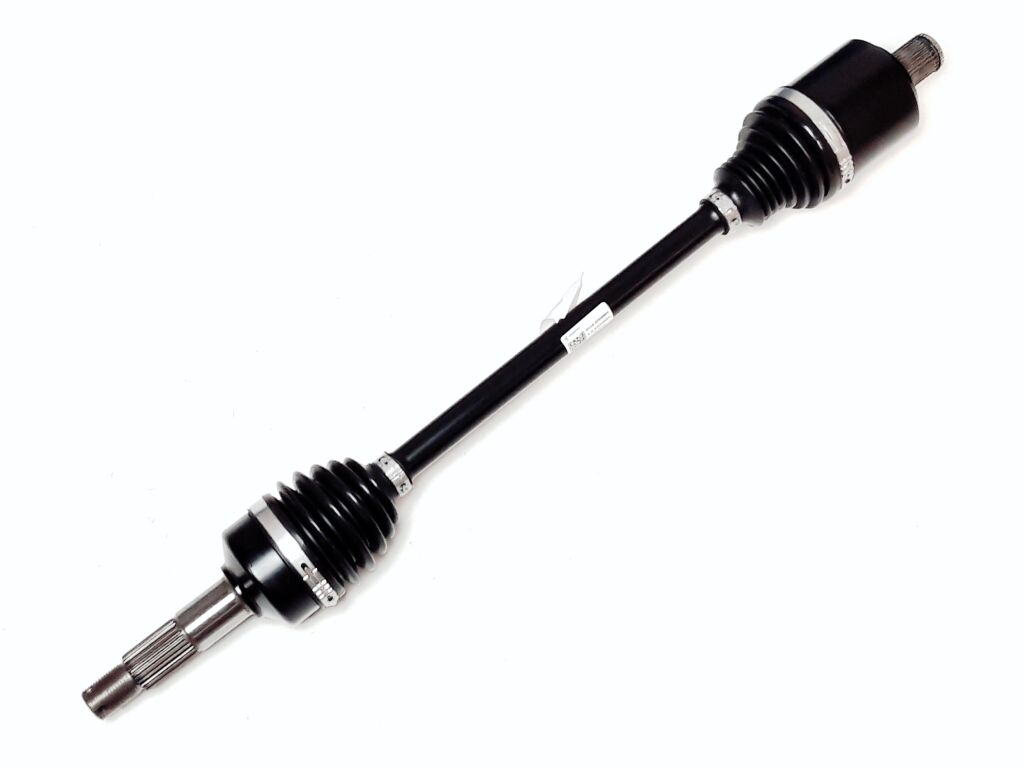

7 U01_CONSTANT VELOCITY DRIVE SHAFT FL (Item nr. 7) U01P11000001 U01_CONSTANT VELOCITY DRIVE SHAFT FL  1 € 148,18 € 179
ON REQUEST
8 U01P11030001 FL INNER BALL CAGE ASSY  1 € 57,27 € 69
ON THE WAY
8a CIRCLIP (Item nr. 8a) U01P11011001 CIRCLIP  1 € 2,48 € 3
IN STOCK

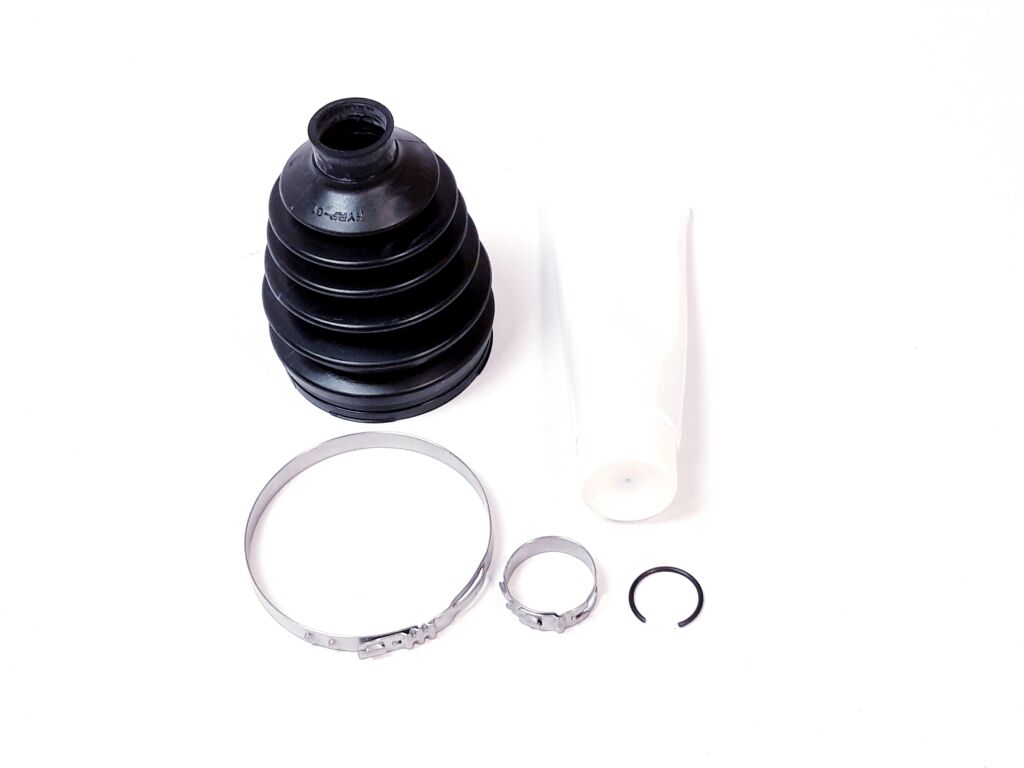

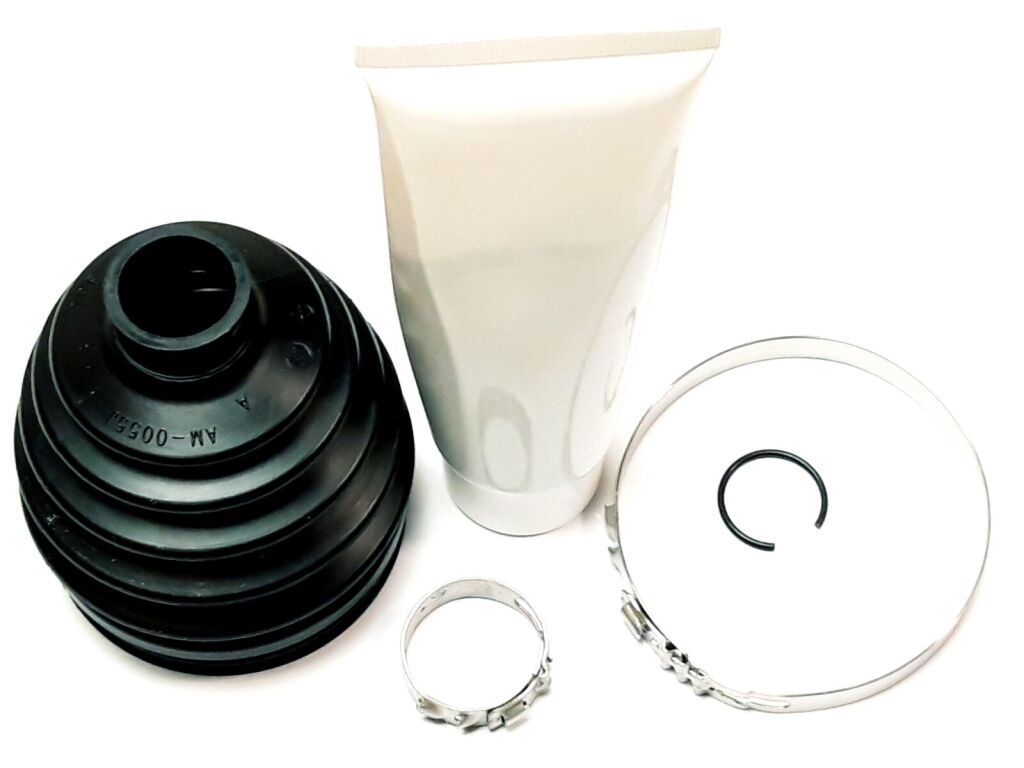

9 MAINTENANCE KIT FOR INNER BALL CAGE ASSY (Item nr. 9) U01P11040001 MAINTENANCE KIT FOR INNER BALL CAGE ASSY  1 € 20,17 € 24
IN STOCK
9a U01P11008001 BIG CLAMPING BAND  1 € 2,48 € 3
ON THE WAY
9b U01P11006001 SMALL CLAMPING BAND  1 € 2,48 € 3
ON THE WAY
23 U03-P212000-000-00 front drive shaft(Mid)  1 € 54,21 € 66
ON REQUEST
Product Code SEGWAY_2_246_UT10_CREW_U5
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT10 Crew U5
