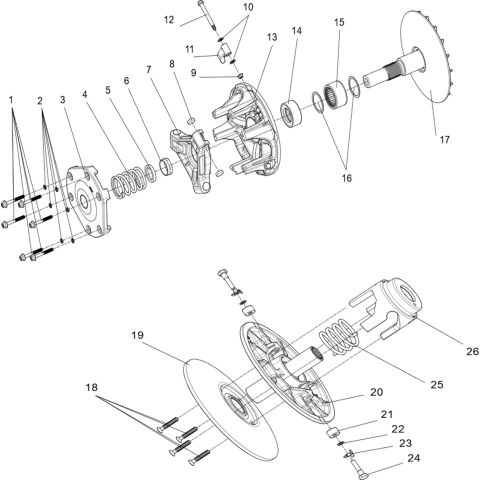

CVT assembly HZ CVT

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_1_124_UTV1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 E02E20005001 BOLT M6×52  6 € 2,40 € 3
ON REQUEST
16 E02E20001001 THRUST WASHER 40.5  2 € 2,40 € 3
ON THE WAY
17 E02E21000001 DRIVE PULLEY SET  1 € 2,40 € 3
ON REQUEST
18 E02E30001001 FIXING SCREW  4 € 2,40 € 3
ON REQUEST
19 E02E30100001 MOVING DISK ASSEMBLY  1 € 2,40 € 3
ON REQUEST
20 E02E31100001 FIXED SHAFT  1 € 2,40 € 3
ON REQUEST
21 SLIDER(HZ) (Item nr. 21) E02E31001001 SLIDER(HZ)  2 € 7,52 € 9
IN STOCK
22 E02E22002001 WASHER 8  2 € 2,40 € 3
ON REQUEST
23 E02E31003001 BOLT LOCK CATCH  2 € 2,40 € 3
ON REQUEST
24 E02E31002001 CVT BOLT  2 € 2,40 € 3
ON REQUEST
25 E02E30002001 DRIVEN SPRING  1 € 2,40 € 3
ON REQUEST
26 E02E30200001 CAM COMBINATION  1 € 2,40 € 3
ON REQUEST
15 E02E25000001 BEARING ASSEMBLY  1 € 2,40 € 3
ON THE WAY
14 E02E20002001 BEARING SLEEVE  1 € 2,40 € 3
ON THE WAY
2 GB0000093003 Spring washer Φ 6  6 € 2,18 € 3
ON REQUEST
3 E02E24000001 COVER PLATE ASSEMBLY  1 € 2,40 € 3
ON REQUEST
4 E02E20008001 SPRING  1 € 2,40 € 3
ON REQUEST
5 E02E20009001 POSITIONING BUSHING  1 € 2,40 € 3
ON REQUEST
6 E02E20007001 NUT  1 € 2,40 € 3
ON REQUEST
7 E02E23000001 BRACKET ASSEMBLY  1 € 2,40 € 3
ON REQUEST
8 E02E23001001 BRACKET BUFFER GASKET  6 € 2,40 € 3
ON REQUEST
9 NUT M6 (Item nr. 9) GBT061771002 NUT M6  3 € 2,18 € 3
IN STOCK
11 E02E22110001 BLOCK ASSEMBLY  3 € 2,40 € 3
ON REQUEST
12 E02E22001001 BOLT M6×68  3 € 2,40 € 3
ON REQUEST
Product Code SEGWAY_1_124_UTV1000
PARTS CATEGORY: ENGINE PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT10
