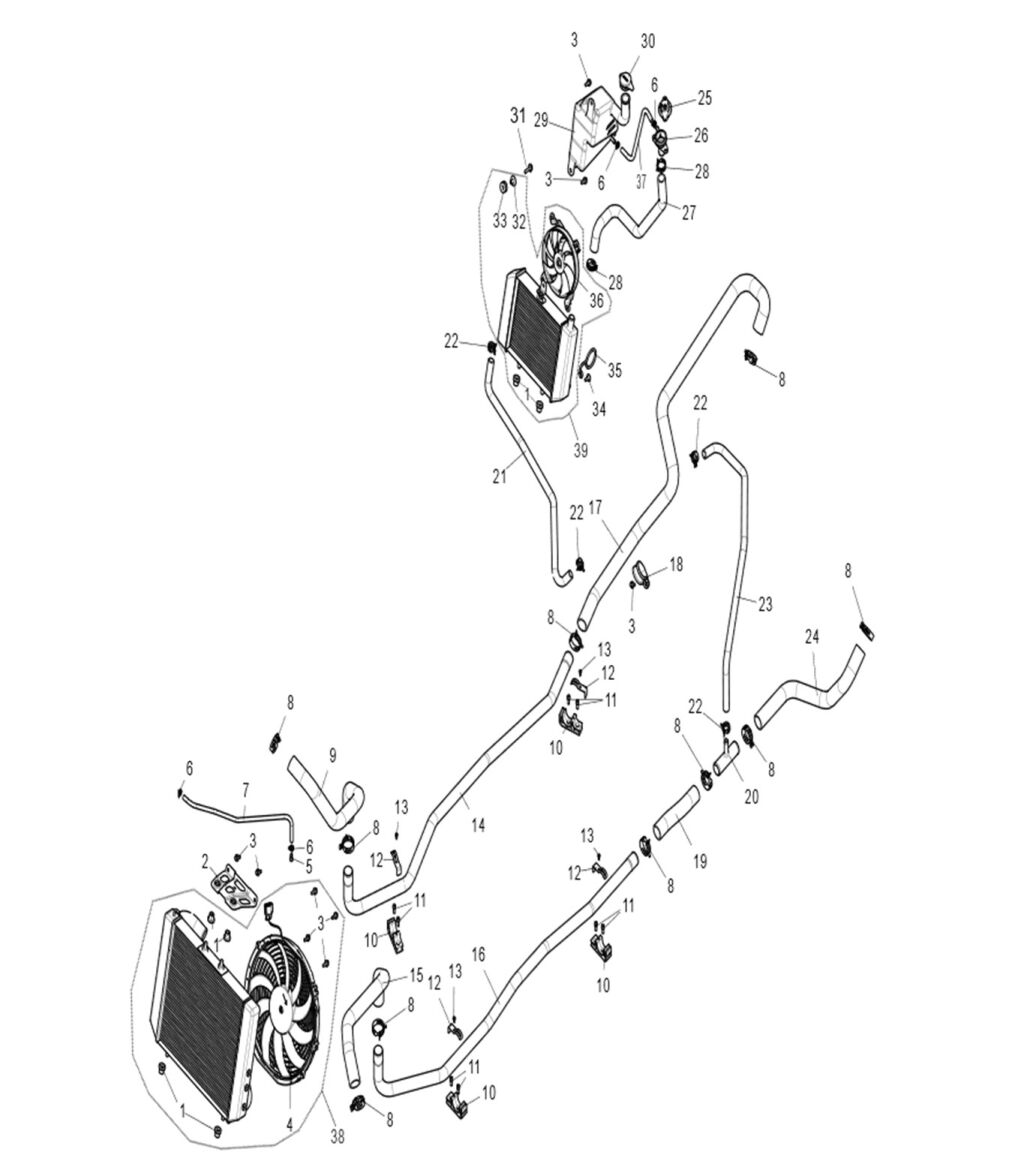

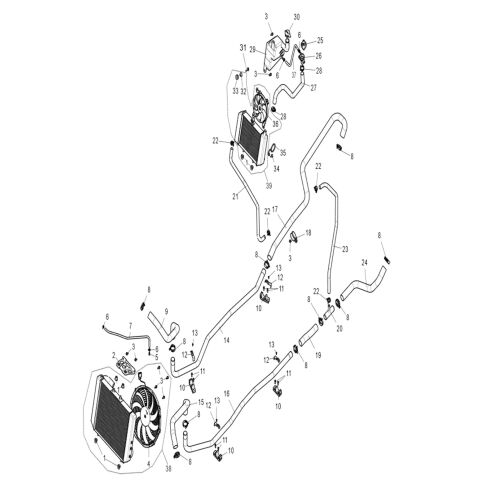

COOLING SYSTEM

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_1_127_UTV1000F-S3
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 MOTOR RADIATOR T-BUSHING LOWER (Item nr. 1) S01A40103001 MOTOR RADIATOR T-BUSHING LOWER  6 € 3,14 € 4
IN STOCK
22 SPRINGBAND CLAMP (Item nr. 22) QCT006211009 SPRINGBAND CLAMP  4 € 2,18 € 3
IN STOCK
23 S03A43600001 ENGINE OUTLET CONNECTION HOSE  1 € 7,93 € 10
ON REQUEST
24 S05A41300001 R/B S05A41300002 ENGINE REAR WATER INLET HOSE  1 € 12,31 € 15
ON REQUEST
25 TANK LID ASSY V (Item nr. 25) A01A41110002 TANK LID ASSY V  1 € 4,38 € 5
ON REQUEST
26 S01A40300001 WATER FILLER BODY  1 € 4,38 € 5
ON REQUEST
27 S05A41500001 WATER INLET CONNECTION HOSE  1 € 5,79 € 7
ON REQUEST
28 STEEL BELT ELASTIC HOSE CLAMP 28 (Item nr. 28) QCT006211007 STEEL BELT ELASTIC HOSE CLAMP 28  1 € 2,18 € 3
IN STOCK
29 S05A40200001 AUXILIARY WATER TANK  1 € 13,14 € 16
ON REQUEST
30 WATER TANK COVER (Item nr. 30) U01A43042001 WATER TANK COVER  1 € 2,48 € 3
IN STOCK
31 HEXAGON FLANGE BOLT M6×25 (Item nr. 31) GBT005789010 HEXAGON FLANGE BOLT M6×25  1 € 2,18 € 3
IN STOCK
32 MOTOR RADIATOR T-BUSHING (Item nr. 32) S01A40106001 MOTOR RADIATOR T-BUSHING  1 € 3,14 € 4
IN STOCK
33 MOTOR RADIATOR BUSHING (Item nr. 33) S01A40105001 MOTOR RADIATOR BUSHING  1 € 4,55 € 5
IN STOCK
34 Inner hexagon screws M6×1.6 (Item nr. 34) T03000007002 Inner hexagon screws M6×1.6  1 € 2,18 € 3
IN STOCK
35 S01C05702002 RADIATOR REAR WATER PIPE HOOK  1 € 10,91 € 13
ON REQUEST

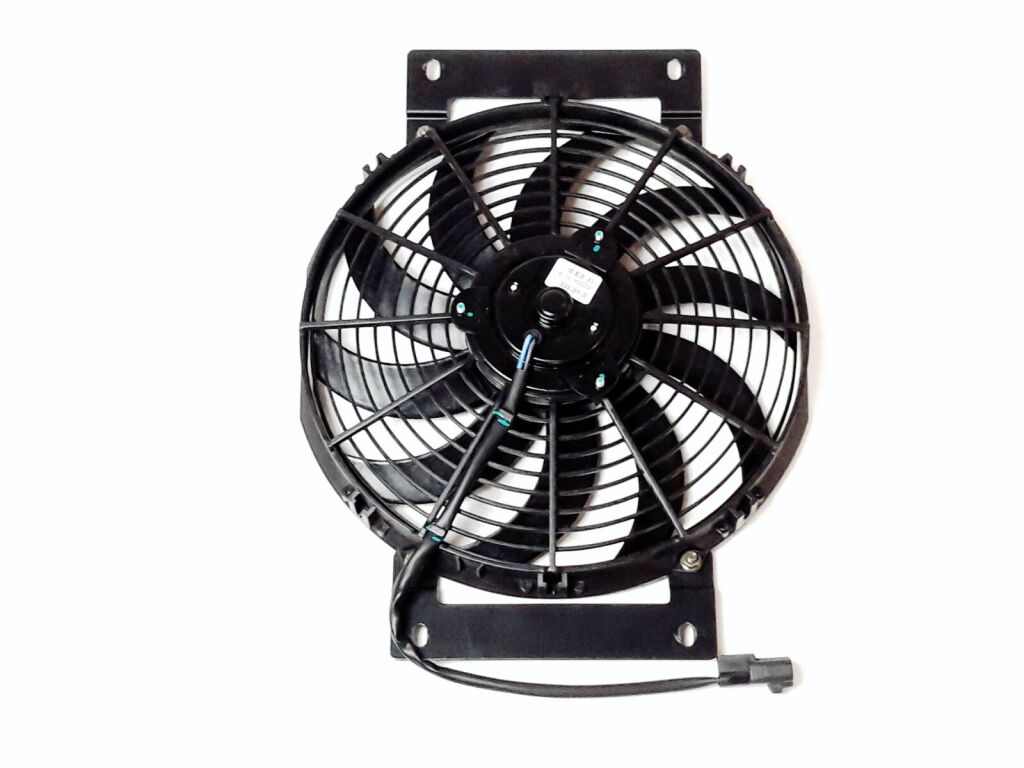

36 MOTOR FAN (Item nr. 36) S03A401B1001 MOTOR FAN  1 € 164,05 € 199
IN STOCK
37 S03A42300001 OVERFLOW PIPE_Φ11×Φ7  1 € 2,48 € 3
ON REQUEST

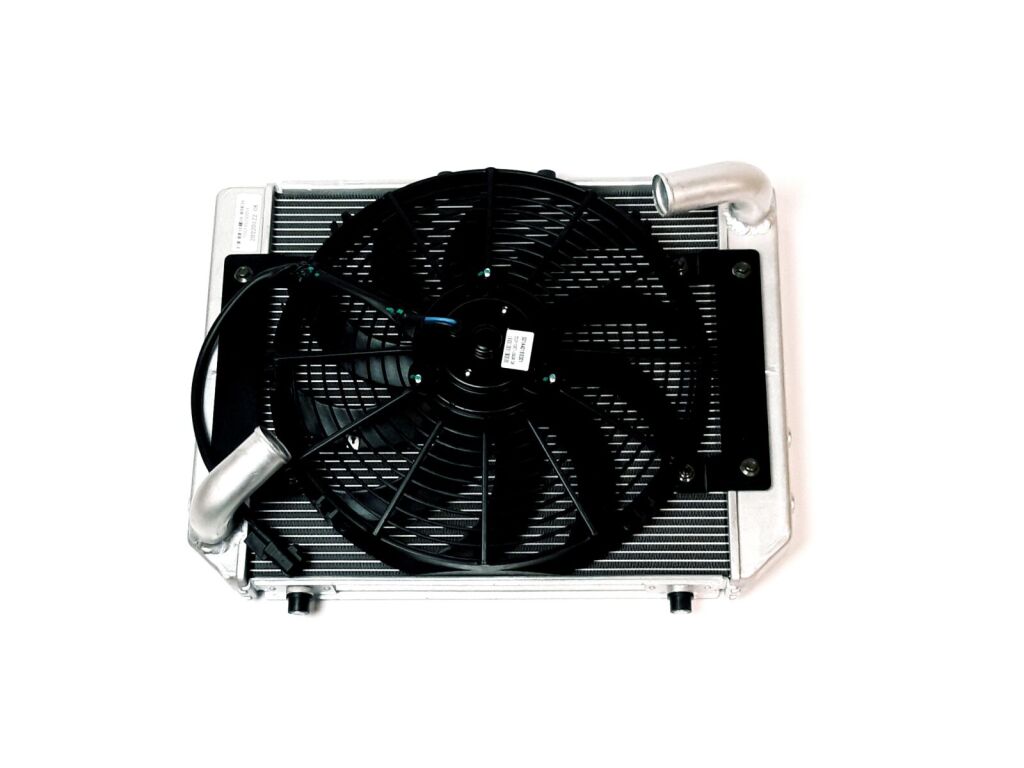

38 ENGINE RADIATOR ASSEMBLY (Item nr. 38) S05A40100001 ENGINE RADIATOR ASSEMBLY  1 € 267,02 € 323
ON THE WAY
21 S05A41400001 OIL COOLING WATER OUTLET PIPE  1 € 2,48 € 3
ON REQUEST
20 S01 ENGINE RADIATOR THREE-WAY (Item nr. 20) S01A42500001 S01 ENGINE RADIATOR THREE-WAY  1 € 5,45 € 7
IN STOCK
19 S05A41000001 ENGINE FRONT WATER INLET HOSE  1 € 4,38 € 5
ON REQUEST
2 RADIATOR UPPER BRACKET (Item nr. 2) S01C05701002 RADIATOR UPPER BRACKET  1 € 13,22 € 16
IN STOCK
3 Bolt M6×16 (Item nr. 3) GBT005789007 Bolt M6×16  9 € 2,18 € 3
IN STOCK

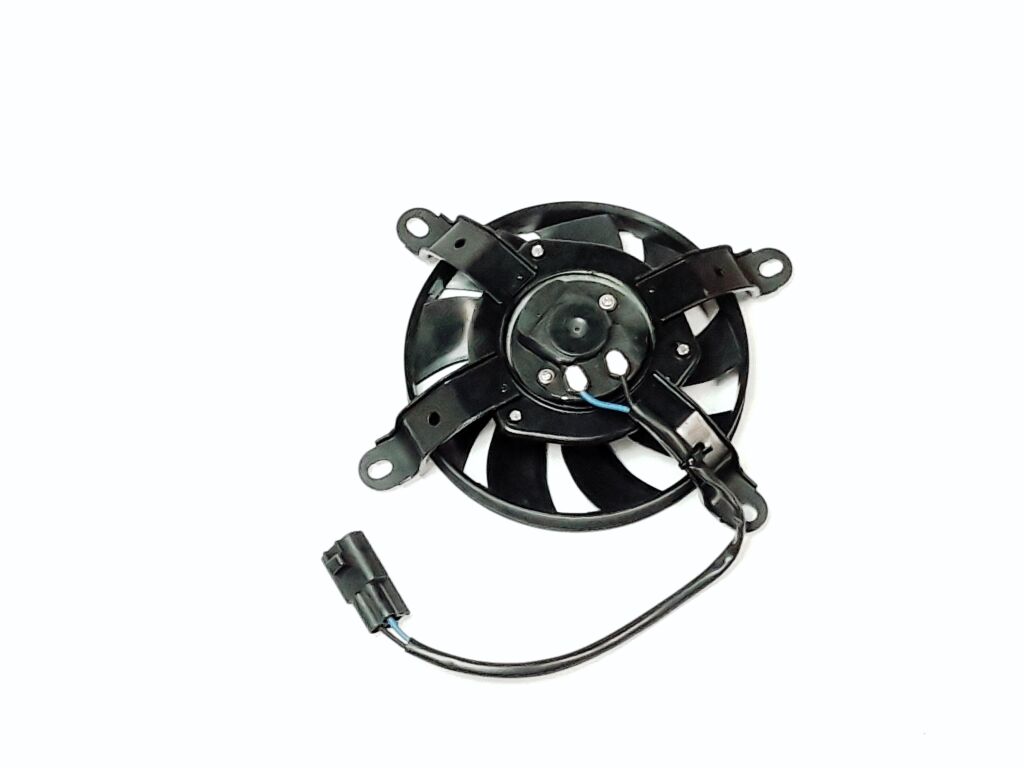

4 ENGINE RADIATOR FAN (Item nr. 4) S01A401BB001 ENGINE RADIATOR FAN  1 € 170,83 € 207
IN STOCK
5 CVT OUTLET PIPE DRAIN PLUG (Item nr. 5) S05A20904001 CVT OUTLET PIPE DRAIN PLUG  1 € 2,18 € 3
IN STOCK
6 CLAMP,SPRINGBAND 11 (Item nr. 6) QCT006211003 CLAMP,SPRINGBAND 11  2 € 2,15 € 3
IN STOCK
7 ENGINE RADIATOR BREATHER_Φ10×Φ6_EPDM (Item nr. 7) S03A43900001 ENGINE RADIATOR BREATHER_Φ10×Φ6_EPDM  1 € 2,48 € 3
IN STOCK
8 CLAMP 38 (Item nr. 8) QCT006211016 CLAMP 38  10 € 2,48 € 3
IN STOCK
9 S03A41100001 ENGINE RADIATOR WATER INLET HOSE_Φ38×Φ30  1 € 14,38 € 17
ON REQUEST
10 S03H20500001 WATER PIPE BUCKLE  4 € 2,48 € 3
ON REQUEST
11 SCREW M6×16 (Item nr. 11) GBT000701010 SCREW M6×16  8 € 2,18 € 3
IN STOCK
12 S03C02200002 WATER PIPE BUCKLE POSITIONING PLATE (BLACK)  4 € 10,74 € 13
ON REQUEST
13 SCREW ST4.2×13 (Item nr. 13) GBT000845009 SCREW ST4.2×13  4 € 2,48 € 3
IN STOCK
14 S03A42600001 ENGINE WATER OUTLET ALUMINUM PIPE  1 € 22,98 € 28
ON REQUEST
15 S03A41300001 ENGINE RADIATOR WATER OUTLET HOSE_Φ38×Φ30  1 € 13,80 € 17
ON REQUEST
16 S03A40400001 ENGINE WATER INLET ALUMINUM PIPE_Φ31×Φ28_AL  1 € 22,98 € 28
ON REQUEST
17 S05A40900001 ENGINE WATER OUTLET HOSE  1 € 26,61 € 32
ON REQUEST
18 T05000070001 R/B T05000007001 38 ADHESIVE STRIP CLAMP  1 € 2,48 € 3
ON REQUEST
39 OIL RADIATOR ASSEMBLY (Item nr. 39) S03A401B0001 OIL RADIATOR ASSEMBLY  1 € 324,63 € 393
IN STOCK
Product Code SEGWAY_1_127_UTV1000F-S3
PARTS CATEGORY: ENGINE PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 (xxxx-2022)
