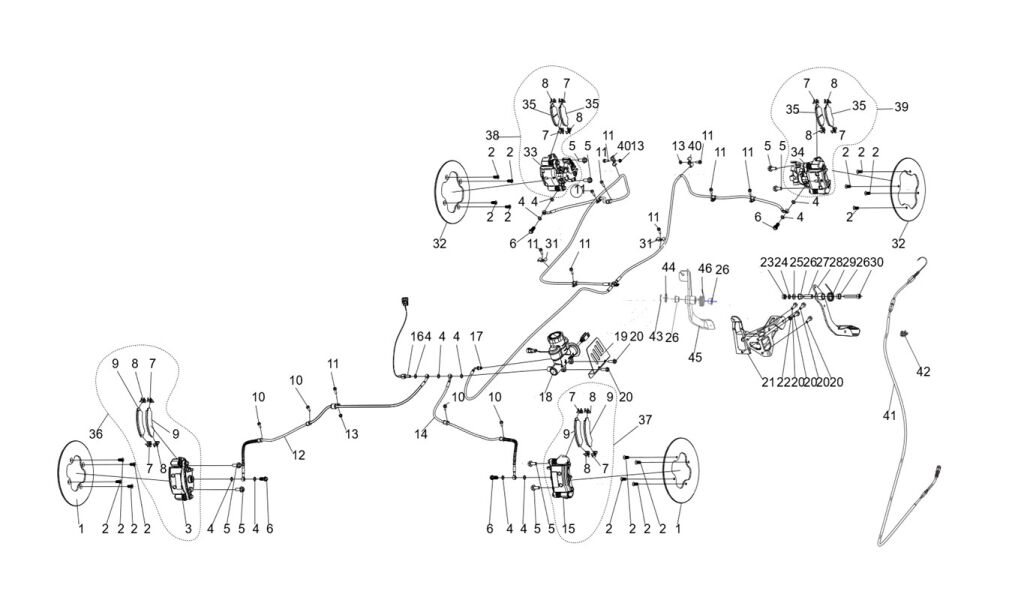

BRAKE SYSTEM.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_224_UT6
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
46 U06-F100300-000-00 RETURN SPRING  1 € 2,18 € 3
ON REQUEST

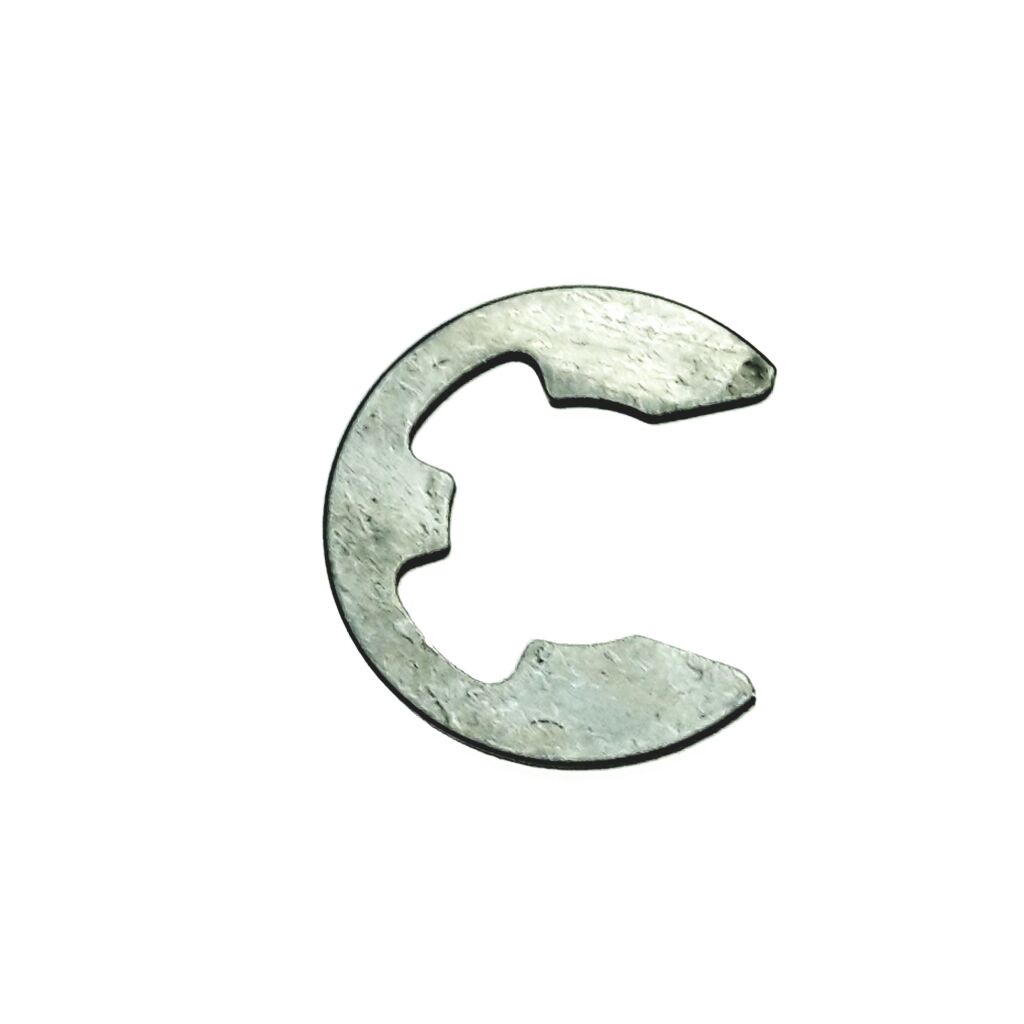

43 OPEN RETAINER RING 12 (Item nr. 43) GB0000896005 OPEN RETAINER RING 12  1 € 2,48 € 3
IN STOCK
42 WIRE CLIP (Item nr. 42) T05000001003 WIRE CLIP  1 € 2,18 € 3
IN STOCK
39 RR BRAKE ASSY (Item nr. 39) U05E11400001 RR BRAKE ASSY  1 € 146,28 € 177
IN STOCK
38 RL BRAKE ASSY (Item nr. 38) U05E11300001 RL BRAKE ASSY  1 € 146,28 € 177
IN STOCK
37 FRONT LEFT BRAKE ASSEMBLY (Item nr. 37) U01E11100001 FRONT LEFT BRAKE ASSEMBLY  1 € 113,14 € 137
IN STOCK
36 FR BRAKE ASSY (Item nr. 36) U01E11200001 FR BRAKE ASSY  1 € 108,43 € 131
IN STOCK
35 REAR BRAKE PAD ASSY (Item nr. 35) S05E15C20001 REAR BRAKE PAD ASSY  4 € 36,61 € 44
IN STOCK
31 S01E10200001 DOUBLE WIRE CLAMP A  2 € 2,48 € 3
ON REQUEST
30 SCREW M10×1.25×65 (Item nr. 30) GBT000701008 SCREW M10×1.25×65  1 € 2,18 € 3
IN STOCK
44 A- WASHER 14 (Item nr. 44) GBT000971007 A- WASHER 14  1 € 2,48 € 3
IN STOCK
1 U06-E100010-000-00 FRONT BRAKE DISC  2 € 18,37 € 22
ON REQUEST
12 U06-E117000-000-00 FRONT RIGHT BARKE PIPE  1 € 38,03 € 46
ON REQUEST
45 U06-F100100-DB0-00 ACCELERATOR PEDAL  1 € 15,32 € 19
ON REQUEST
41 U06-F100200-000-00 THROTTLE CABLE  1 € 7,08 € 9
ON REQUEST
40 U06-E100001-000-00 DOUBLE WIRE CLAMP A  2 € 2,18 € 3
ON REQUEST
34 U05E11410001 U05 RR BRAKE CALIPER BODY ASSY  1 € 122,45 € 148
ON REQUEST
33 U05E11310001 U05 RL BRAKE CALIPER BODY ASSY  1 € 122,45 € 148
ON REQUEST
32 U06-E100020-000-00 REAR BRAKE DISC  2 € 16,33 € 20
ON REQUEST
21 U06-E120300-DB0-00 BRAKE PADEL SEAT  1 € 28,60 € 35
ON REQUEST
17 U06-E118000-000-00 REAR BRAKE PIPE  1 € 114,46 € 138
ON REQUEST
14 U06-E116000-000-00 FRONT LEFT BRAKE PIPE  1 € 27,77 € 34
ON REQUEST
29 U01_brake pedal spring 65Mn (Item nr. 29) U01E12003001 U01_brake pedal spring 65Mn  1 € 2,18 € 3
IN STOCK
28 U03-E120100-DB0-00 Brake pedal(Black)  1 € 18,43 € 22
ON REQUEST
11 Bolt M6×16 (Item nr. 11) GBT005789007 Bolt M6×16  13 € 2,18 € 3
IN STOCK
10 Bolt M6×12 (Item nr. 10) GBT005789006 Bolt M6×12  4 € 2,18 € 3
IN STOCK
9 R/B S03E15A20002, FRONT BRAKE PAD (Item nr. 9) S03E15A20001 R/B S03E15A20002, FRONT BRAKE PAD  4 € 49,01 € 59
ON REQUEST
8 BRAKE PAD CLIP (Item nr. 8) S05E15C50001 BRAKE PAD CLIP  8 € 4,38 € 5
ON REQUEST
7 BRAKE PAD CLIP A (Item nr. 7) S05E15C60001 BRAKE PAD CLIP A  8 € 4,38 € 5
ON REQUEST
6 BOLT INNER OIL (Item nr. 6) A03E11011001 BOLT INNER OIL  4 € 4,01 € 5
IN STOCK
5 Hexagon flange bolt M10×1.25×25 (Item nr. 5) GBT005789026 Hexagon flange bolt M10×1.25×25  8 € 2,48 € 3
IN STOCK
4 GASKET (Item nr. 4) A03E11012001 GASKET  11 € 2,18 € 3
IN STOCK

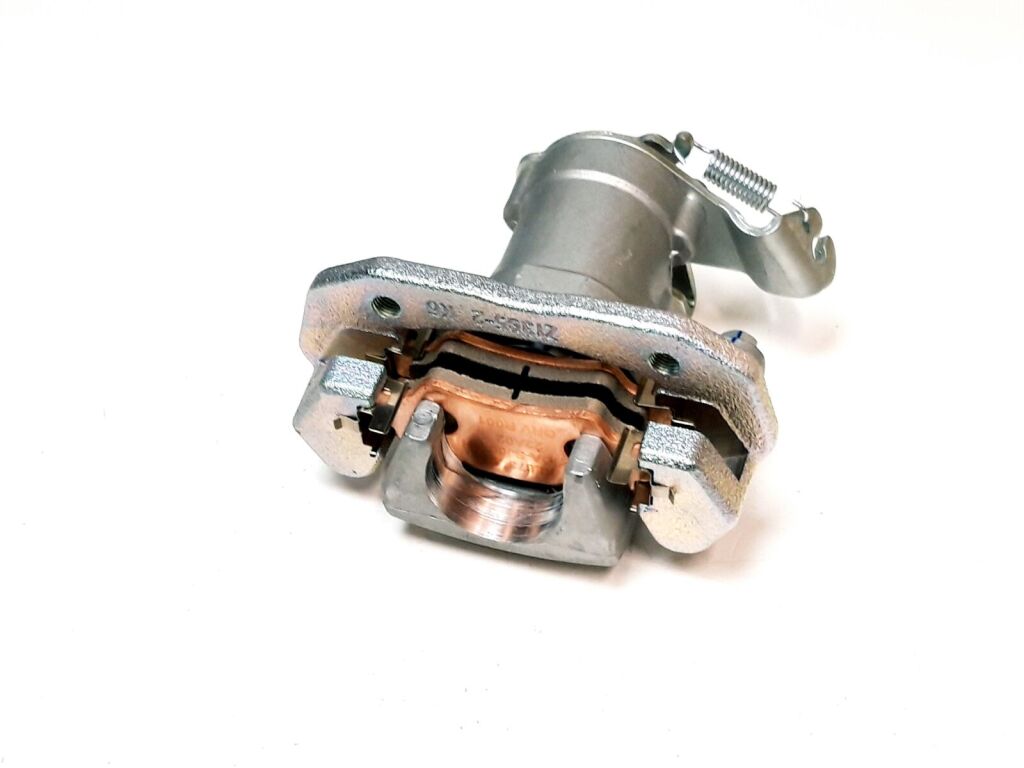

3 FR CALIPER BRAKE (Item nr. 3) A03E11210001 FR CALIPER BRAKE  1 € 136,86 € 166
IN STOCK
13 NUT M6 (Item nr. 13) GBT061771002 NUT M6  3 € 2,18 € 3
IN STOCK

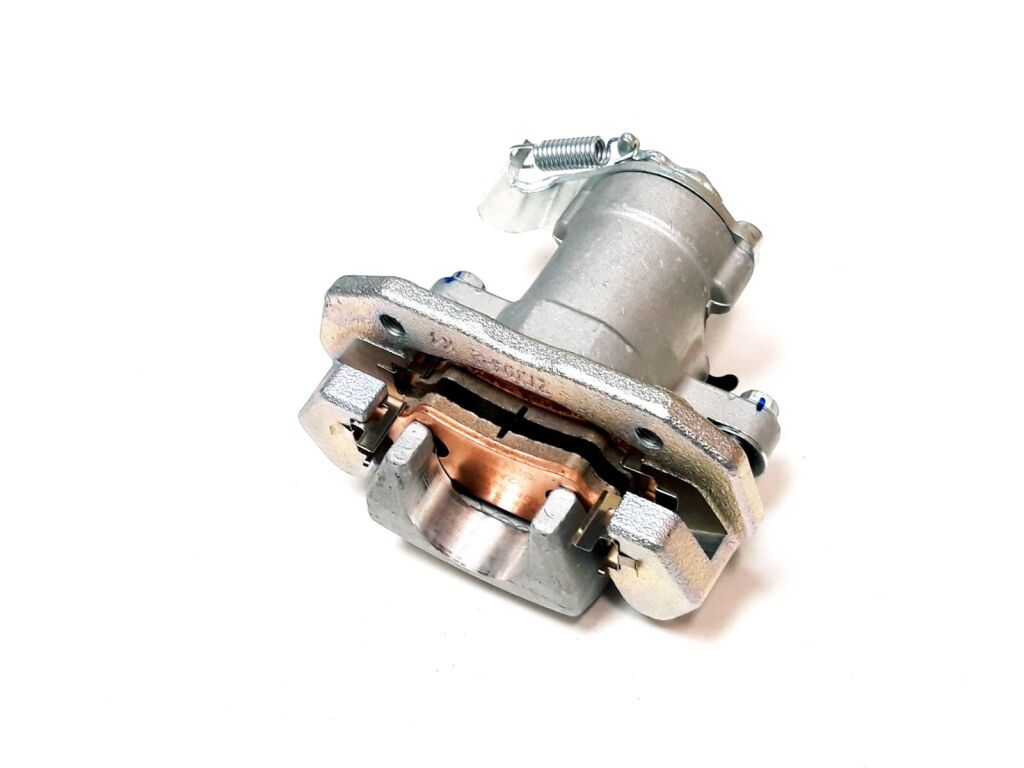

15 FL CALIPER BRAKE (Item nr. 15) A03E11110001 FL CALIPER BRAKE  1 € 136,86 € 166
IN STOCK

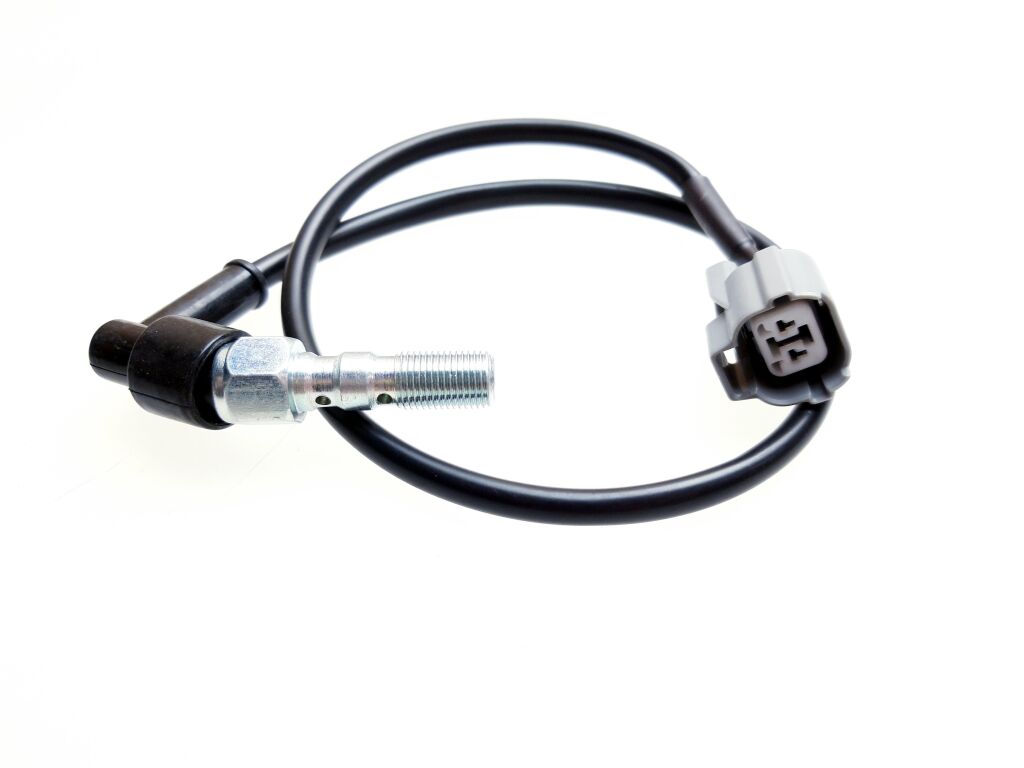

16 HYDRAULIC INDUCTION SWITCH (Item nr. 16) A03E11005001 HYDRAULIC INDUCTION SWITCH  1 € 39,75 € 48
IN STOCK
27 U01_lining sleeve (Item nr. 27) U01E12004001 U01_lining sleeve  1 € 2,18 € 3
IN STOCK
26 Nylon bushing (Item nr. 26) A03E12201001 Nylon bushing  4 € 2,18 € 3
IN STOCK
25 WASHER 10 (Item nr. 25) GBT000971005 WASHER 10  1 € 2,18 € 3
IN STOCK
24 SPRING WASHER 10 (Item nr. 24) GB0000093005 SPRING WASHER 10  1 € 2,18 € 3
IN STOCK
23 NUT M10×1.25 (Item nr. 23) GBT006170001 NUT M10×1.25  1 € 2,48 € 3
IN STOCK
22 GBT006170004 TYPE 1 HEXAGON NUT M8  1 € 2,48 € 3
ON REQUEST
20 Hexagon flange bolt M8×25 (Item nr. 20) GBT005789016 Hexagon flange bolt M8×25  6 € 2,18 € 3
IN STOCK
19 U01_MAIN BRAKE PUMP GUARD BOARD (Item nr. 19) U01C00003002 U01_MAIN BRAKE PUMP GUARD BOARD  1 € 15,79 € 19
IN STOCK
18 U03-E115000-000-00 Foot brake main pump assy  1 € 97,44 € 118
ON REQUEST
2 SCREW M8×20 (Item nr. 2) BG026731-08020-ZA1 SCREW M8×20  16 € 1,74 € 2
IN STOCK
Product Code SEGWAY_2_224_UT6
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT6
