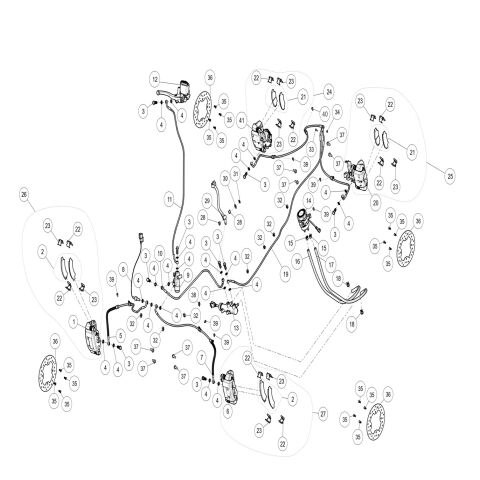

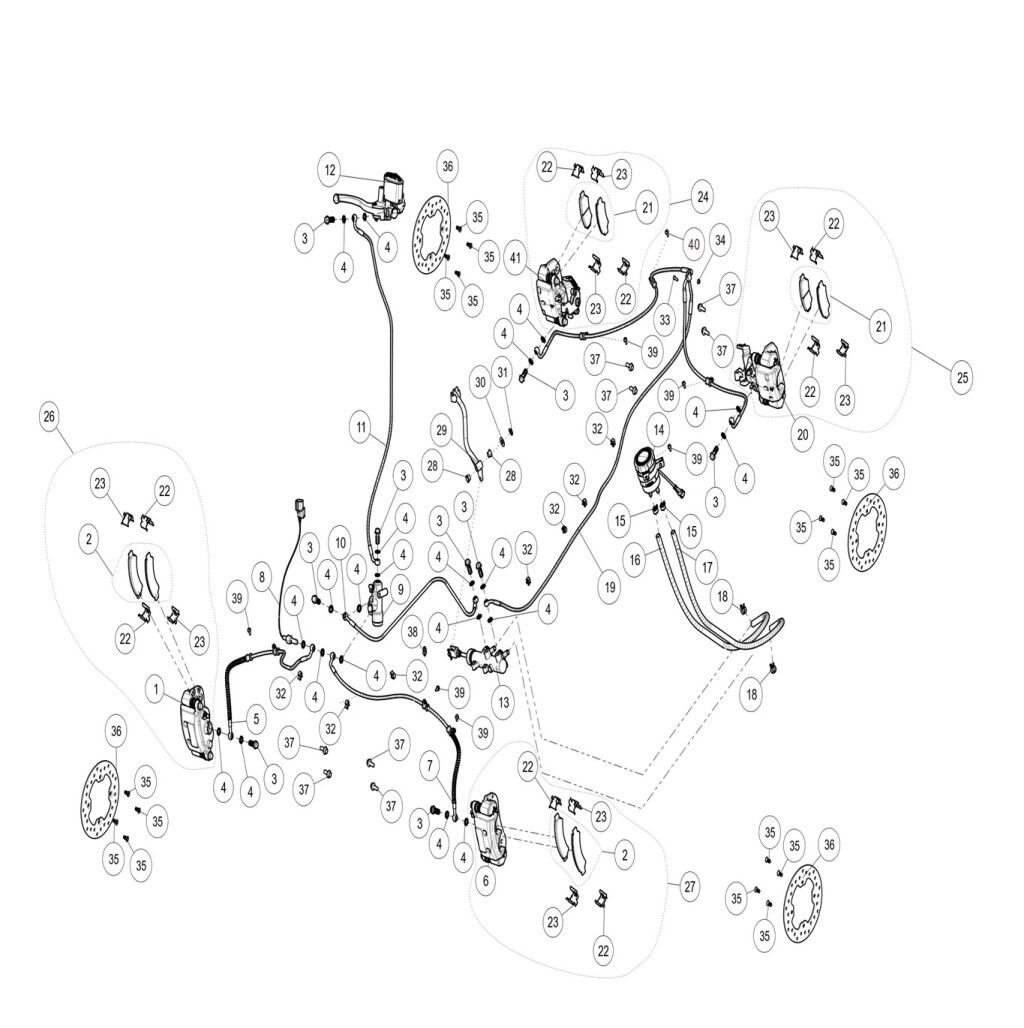

BRAKE SYSTEM,NARROW VERSION.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_247_AT10_A3
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
41 RL CALIPER BRAKE (Item nr. 41) A03E11310001 RL CALIPER BRAKE  1 € 203,55 € 246
ON REQUEST
30 A- WASHER 14 (Item nr. 30) GBT000971007 A- WASHER 14  1 € 2,48 € 3
IN STOCK
29 WELD BRAKE PEDAL (Item nr. 29) A12-E121100-DB0-00 WELD BRAKE PEDAL  1 € 10,41 € 13
IN STOCK
28 Nylon bushing (Item nr. 28) A03E12201001 Nylon bushing  2 € 2,18 € 3
IN STOCK
27 FL BRAKE ASSY (Item nr. 27) A03E11100001 FL BRAKE ASSY  1 € 145,70 € 176
ON THE WAY
26 FR BRAKE ASSY (Item nr. 26) A03E11200001 FR BRAKE ASSY  1 € 145,70 € 176
IN STOCK
25 RR BRAKE ASSY (Item nr. 25) A03E11400001 RR BRAKE ASSY  1 € 166,61 € 202
ON REQUEST
24 RL BRAKE ASSY (Item nr. 24) A03E11300001 RL BRAKE ASSY  1 € 166,61 € 202
ON REQUEST
23 BRAKE PAD CLIP (Item nr. 23) S05E15C50001 BRAKE PAD CLIP  8 € 4,38 € 5
ON THE WAY
31 OPEN RETAINER RING 12 (Item nr. 31) GB0000896005 OPEN RETAINER RING 12  1 € 2,48 € 3
IN STOCK
32 WIRE CLIP (Item nr. 32) T05000001003 WIRE CLIP  10 € 2,18 € 3
IN STOCK
40 Bolt M6×16 (Item nr. 40) GBT005789007 Bolt M6×16  1 € 2,18 € 3
IN STOCK
39 Bolt M6×12 (Item nr. 39) GBT005789006 Bolt M6×12  6 € 2,18 € 3
IN STOCK
38 CLIP,ROUND 200 (Item nr. 38) T05000001004 CLIP,ROUND 200  2 € 2,18 € 3
IN STOCK
37 Hexagon flange bolt M10×1.25×25 (Item nr. 37) GBT005789026 Hexagon flange bolt M10×1.25×25  8 € 2,48 € 3
IN STOCK
36 FRONT BRAKE DISC (Item nr. 36) A12-E101000-000-00 FRONT BRAKE DISC  4 € 18,60 € 22
ON THE WAY
35 SCREW M8×20 (Item nr. 35) BG026731-08020-ZA1 SCREW M8×20  16 € 1,74 € 2
IN STOCK
34 NUT M6 (Item nr. 34) GBT061771002 NUT M6  4 € 2,18 € 3
IN STOCK
33 SCREW M6×16 (Item nr. 33) GBT000701010 SCREW M6×16  1 € 2,18 € 3
IN STOCK
22 BRAKE PAD CLIP A (Item nr. 22) S05E15C60001 BRAKE PAD CLIP A  8 € 4,38 € 5
ON THE WAY
21 REAR BRAKE PAD (Item nr. 21) A03E11320001 REAR BRAKE PAD  4 € 33,02 € 40
IN STOCK
20 RR CALIPER BRAKE (Item nr. 20) A03E11410001 RR CALIPER BRAKE  1 € 203,55 € 246
IN STOCK
9 HYDRAULIC DISTRIBUTION VALVE (Item nr. 9) A03E11600001 HYDRAULIC DISTRIBUTION VALVE  1 € 61,07 € 74
IN STOCK
8 BRAKE SWITCH (Item nr. 8) S10-E110050-000-00 BRAKE SWITCH  1 € 10,17 € 12
IN STOCK
7 A12-E110100-000-00 FL BRAKE OIL PIPE  1
ON REQUEST
6 FL CALIPER BRAKE (Item nr. 6) A03E11110001 FL CALIPER BRAKE  1 € 136,86 € 166
ON REQUEST
5 A12-E110200-000-00 FR BRAKE OIL PIPE  1
ON REQUEST
4 GASKET (Item nr. 4) A03E11012001 GASKET  21 € 2,18 € 3
IN STOCK
3 BOLT INNER OIL (Item nr. 3) A03E11011001 BOLT INNER OIL  9 € 4,01 € 5
IN STOCK
2 FRONT BRAKE PAD (Item nr. 2) A03E11120001 FRONT BRAKE PAD  4 € 33,02 € 40
IN STOCK
10 A12-E110400-000-00 FRONT BRAKE OIL TUBE  1
ON REQUEST
11 A12-E110500-000-00 HANDBRAKE OIL TUBE  1
ON REQUEST
19 A12-E110300-000-00 REAR BRAKE OIL TUBE  1
ON REQUEST
18 FOOT BRAKE MAIN PUMP TUBE CLIP (Item nr. 18) A03E11804001 FOOT BRAKE MAIN PUMP TUBE CLIP  2 € 2,48 € 3
IN STOCK
17 A12-E118020-000-00 OIL CUP PIPE B  1
ON REQUEST
16 A12-E118010-000-00 OIL CUP PIPE A  1
ON REQUEST
15 CLAMP,OIL CUP PIPE (Item nr. 15) A03E11803001 CLAMP,OIL CUP PIPE  2 € 2,48 € 3
IN STOCK
14 BRAKE OIL CUP (Item nr. 14) A03E11800002 BRAKE OIL CUP  1 € 33,80 € 41
IN STOCK
13 FOOT BRAKE MAIN PUMP (Item nr. 13) A03E11500001 FOOT BRAKE MAIN PUMP  1 € 147,44 € 178
IN STOCK
12 HANDBRAKE PUMP (Item nr. 12) A03-E117000-000-00 HANDBRAKE PUMP  1 € 28,93 € 35
ON THE WAY
1 FR CALIPER BRAKE (Item nr. 1) A03E11210001 FR CALIPER BRAKE  1 € 136,86 € 166
ON THE WAY
Product Code SEGWAY_2_247_AT10_A3
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT10
Select MODEL: AT10L
