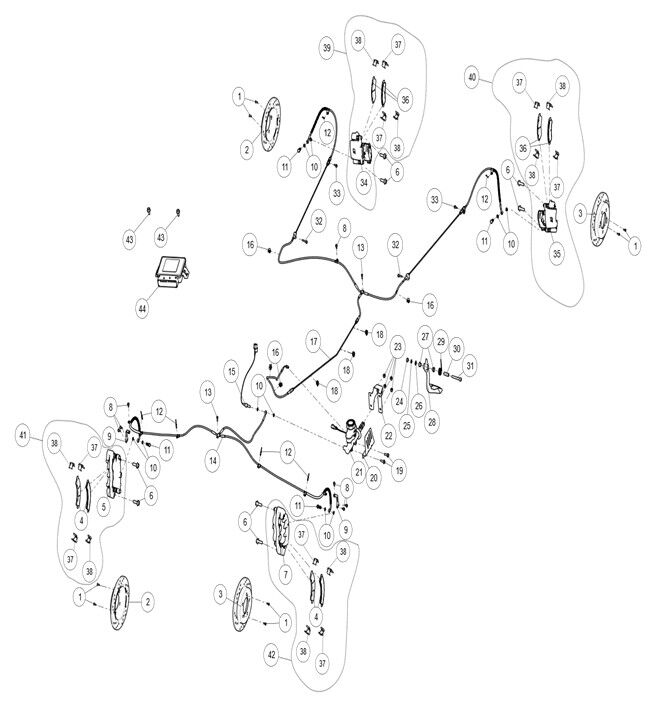

BRAKE SYSTEM EU.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_232_SX20T
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
45 S10-M512000-000-00 EPB SWITCH  1 € 17,79 € 22
ON REQUEST

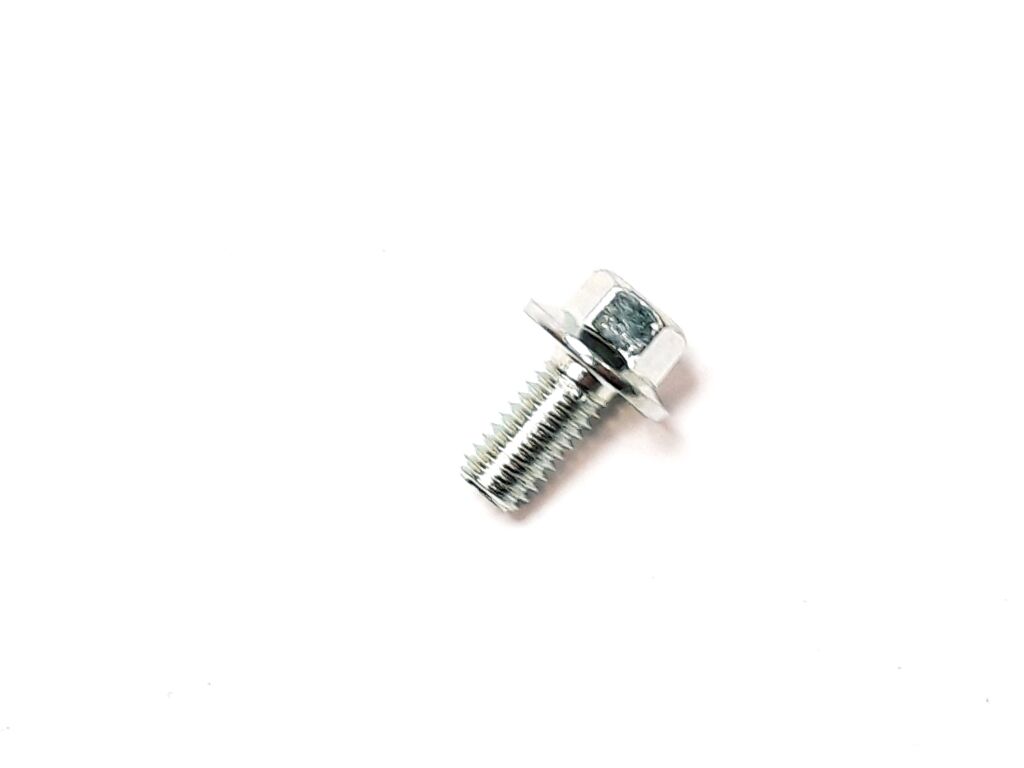

33 Bolt M6×16 (Item nr. 33) GBT005789007 Bolt M6×16  2 € 2,18 € 3
IN STOCK

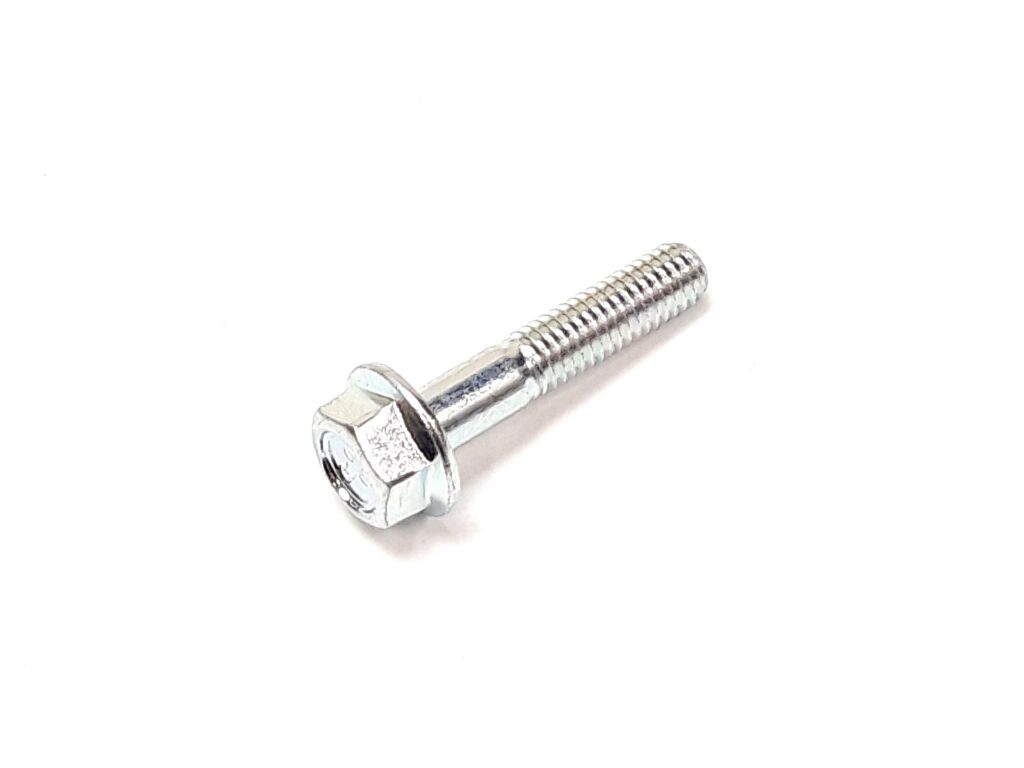

32 HEXAGON FLANGE BOLT M6×30 (Item nr. 32) GBT005789065 HEXAGON FLANGE BOLT M6×30  2 € 8,02 € 10
IN STOCK

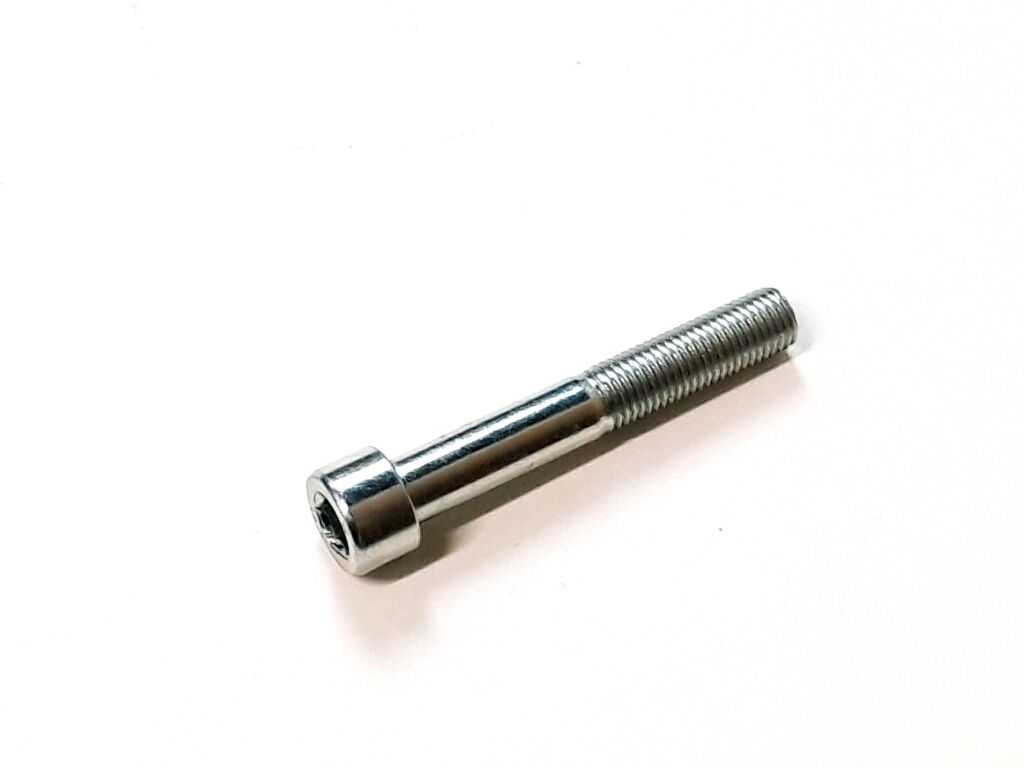

31 SCREW M10×1.25×65 (Item nr. 31) GBT000701008 SCREW M10×1.25×65  1 € 2,18 € 3
IN STOCK

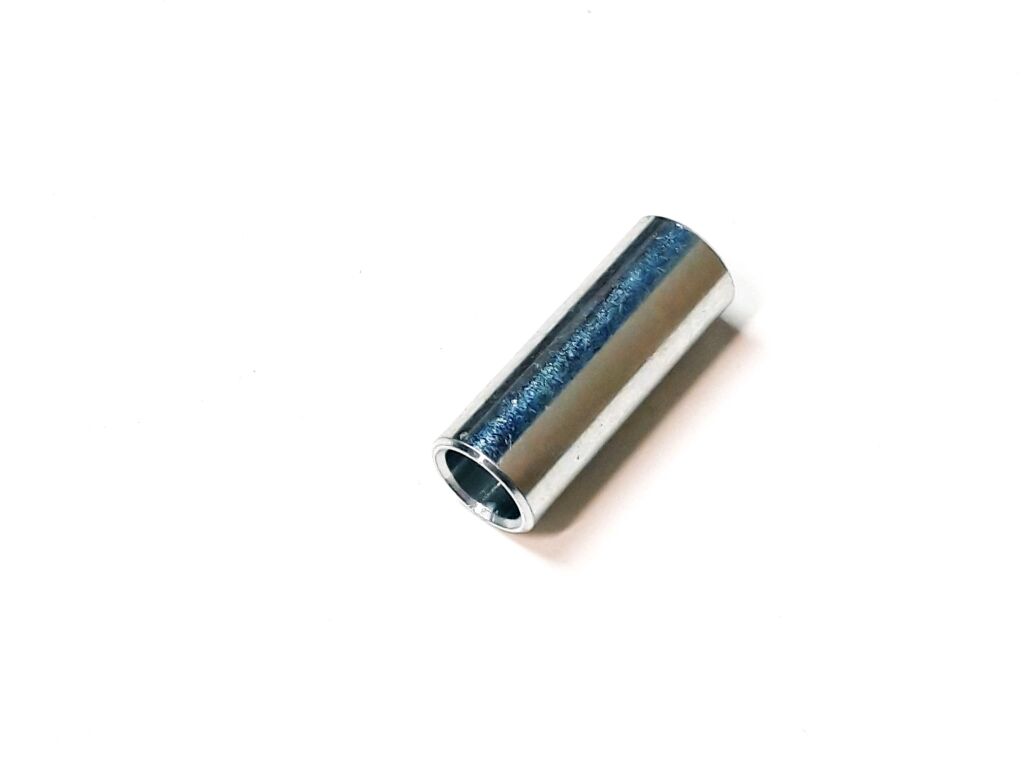

30 U01_lining sleeve (Item nr. 30) U01E12004001 U01_lining sleeve  1 € 2,18 € 3
IN STOCK

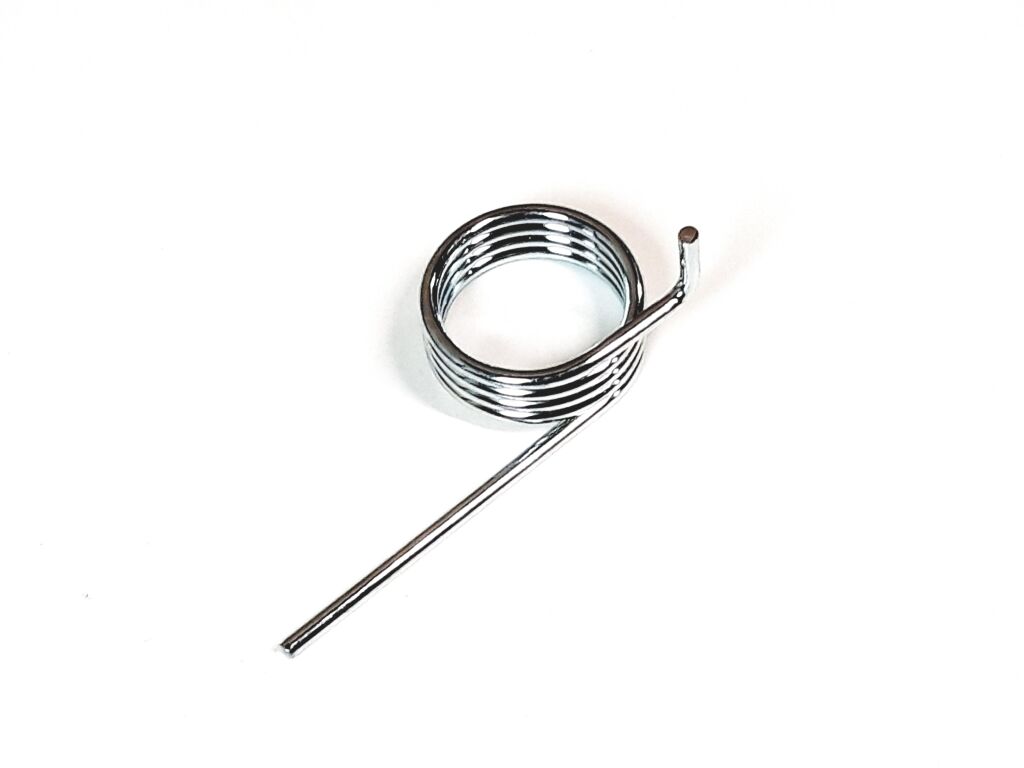

29 U01_brake pedal spring 65Mn (Item nr. 29) U01E12003001 U01_brake pedal spring 65Mn  1 € 2,18 € 3
IN STOCK
28 S10-E121000-000-00 BRAKE PEDAL  1
ON REQUEST
Detail
27 Nylon bushing (Item nr. 27) A03E12201001 Nylon bushing  2 € 2,18 € 3
IN STOCK
26 WASHER 10 (Item nr. 26) GBT000971005 WASHER 10  1 € 2,18 € 3
IN STOCK

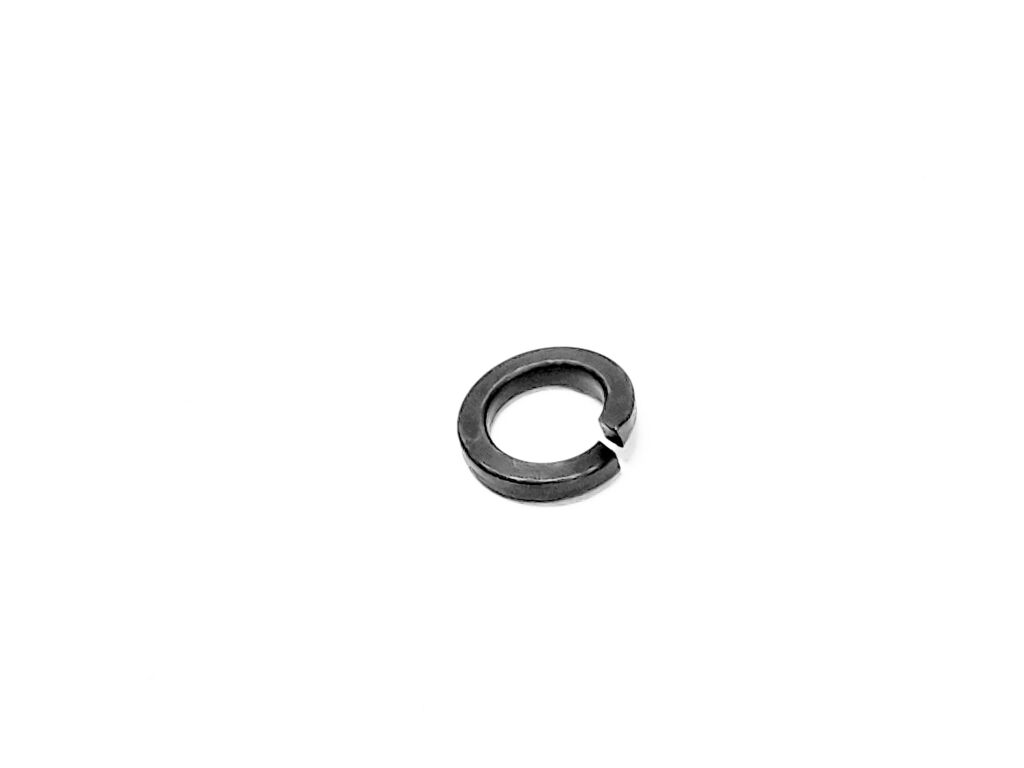

25 SPRING WASHER 10 (Item nr. 25) GB0000093005 SPRING WASHER 10  1 € 2,18 € 3
IN STOCK
34 S10-E114100-000-00 RR BRAKE CALIPER BODY ASSY  1
ON REQUEST
Detail
35 S10-E113100-000-00 RL BRAKE CALIPER BODY ASSY  1
ON REQUEST
Detail

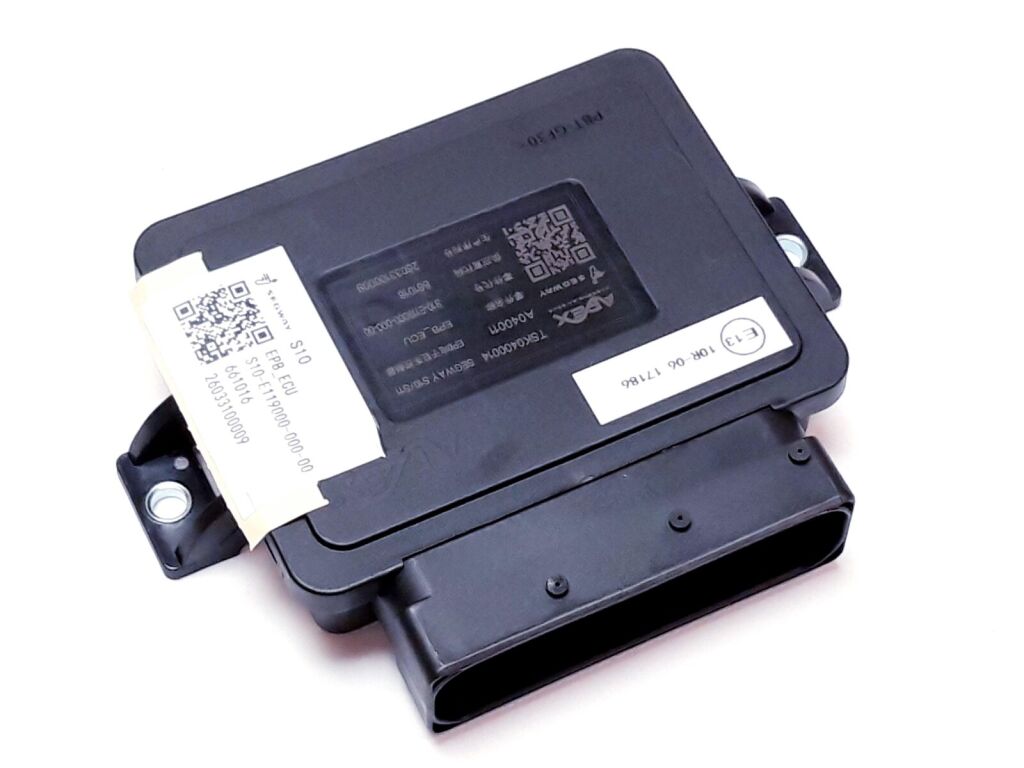

44 S10-E119000-000-00 EPB CONTROLLER  1 € 226,66 € 274
ON REQUEST
43 Bolt M6×12 (Item nr. 43) GBT005789006 Bolt M6×12  2 € 2,18 € 3
IN STOCK
42 S10-E111000-000-00 FL BRAKE ASSY  1 € 286,04 € 346
ON REQUEST
41 S10-E112000-000-00 FR BRAKE CALIPER ASSY  1 € 286,04 € 346
ON REQUEST
40 S10-E113000-000-01 RL BRAKE ASSY  1 € 270 € 327
ON REQUEST
39 S10-E114000-000-01 RR BRAKE CALIPER ASSY  1 € 270 € 327
ON REQUEST

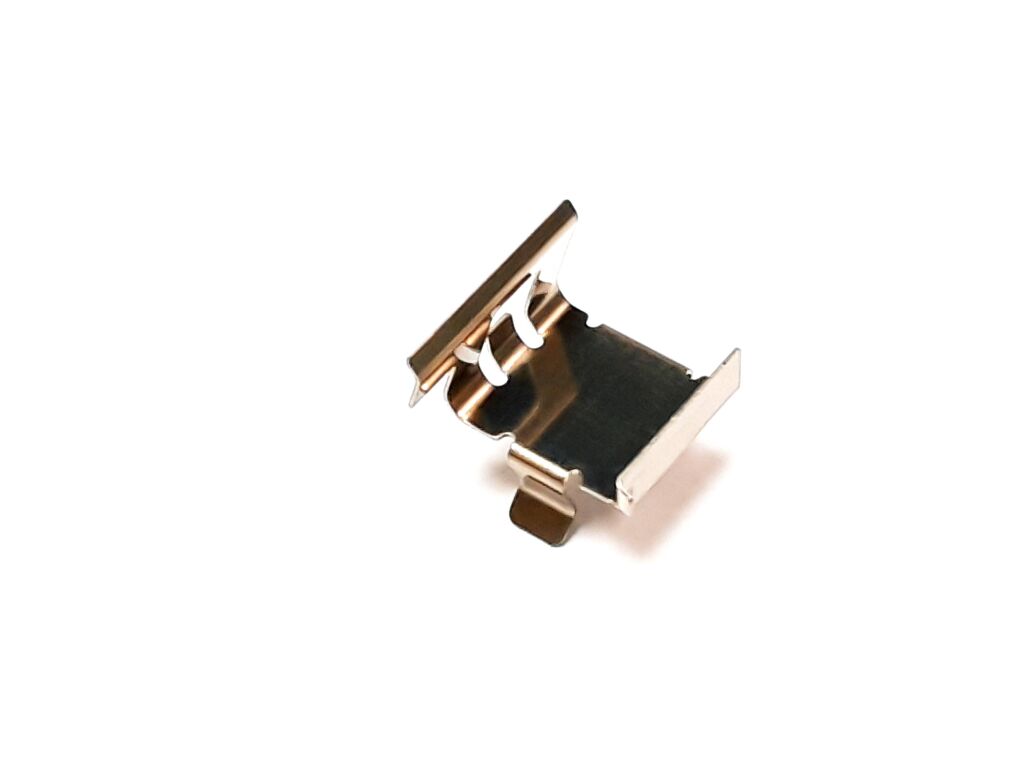

38 BRAKE PAD CLIP A (Item nr. 38) S05E15C60001 BRAKE PAD CLIP A  8 € 4,38 € 5
ON REQUEST

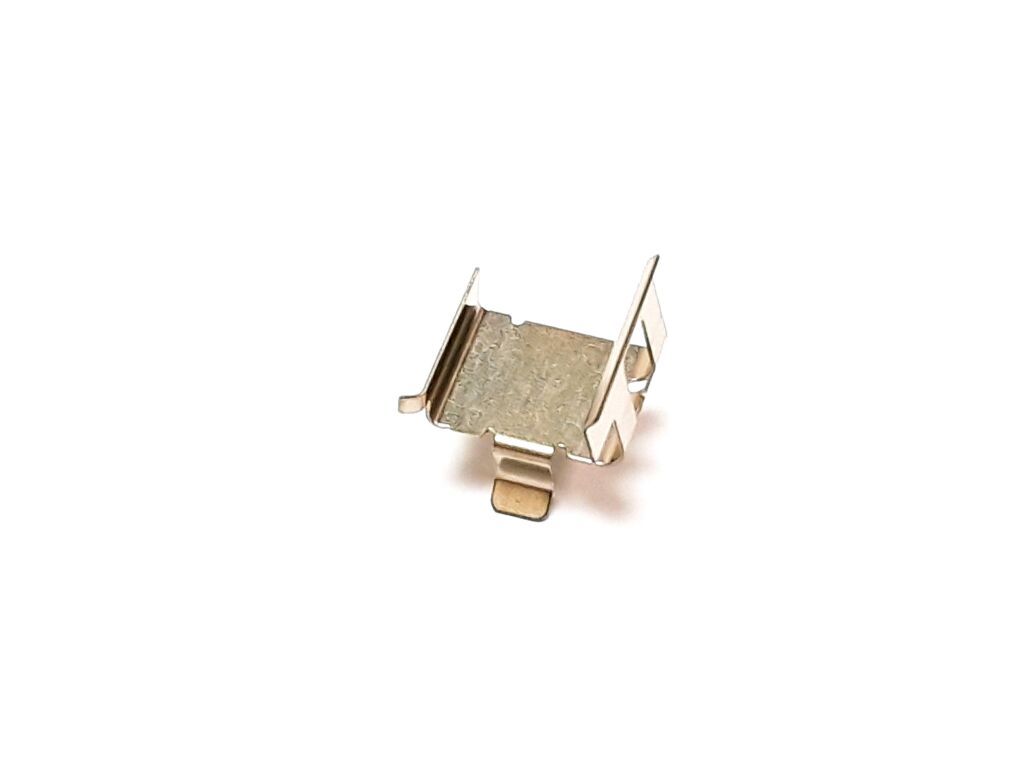

37 BRAKE PAD CLIP (Item nr. 37) S05E15C50001 BRAKE PAD CLIP  8 € 4,38 € 5
ON REQUEST
36 S10-E113200-000-00 REAR BRAKE PAD ASSY  4 € 85,48 € 103
ON REQUEST
24 NUT M10×1.25 (Item nr. 24) GBT061852001 NUT M10×1.25  1 € 2,18 € 3
IN STOCK
23 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 23) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  4 € 2,18 € 3
IN STOCK
22 S10-E122000-000-00 BRAKE PEDAL MOUNTING BRACKET  1 € 4,60 € 6
ON REQUEST

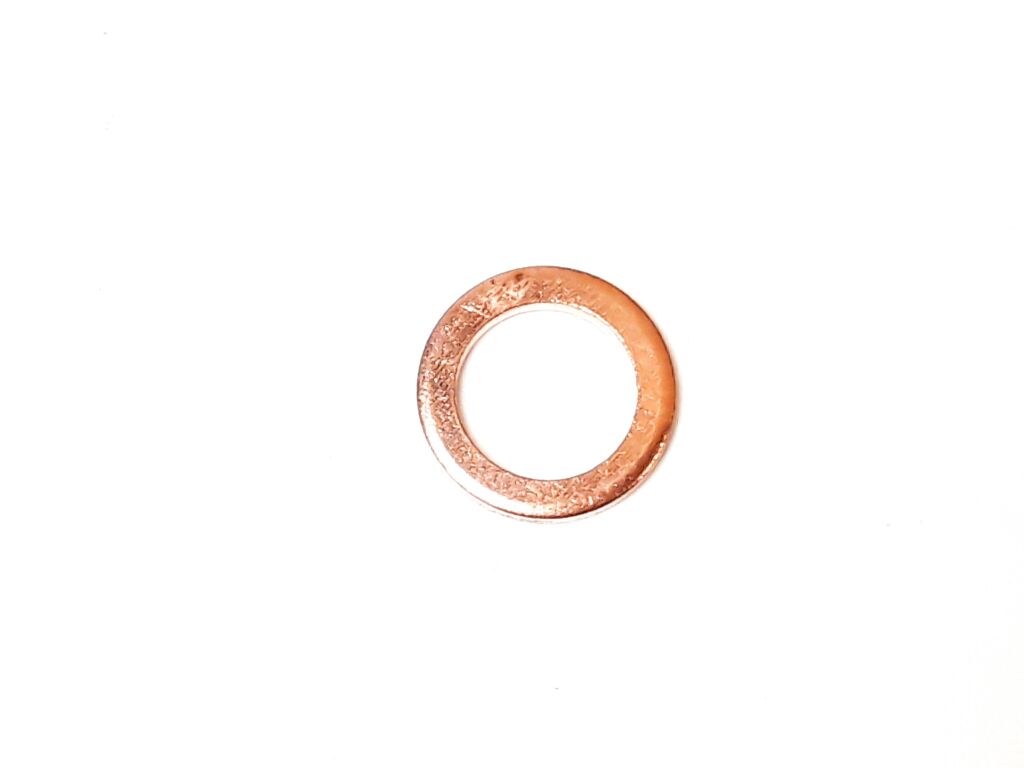

10 GASKET (Item nr. 10) A03E11012001 GASKET  10 € 2,18 € 3
IN STOCK
9 S10-E100002-0MP-00 FRONT BRAKE PIPE BRACKET  2
ON REQUEST
Detail
7 S10-E111100-000-00 FL CALIPER BRAKE  1 € 193,24 € 234
ON REQUEST
6 BG057890-12035-C80 Hexagonal flange bolt M12 × 1.25 × 35  8 € 2,18 € 3
ON REQUEST
5 S10-E112100-000-00 FR CALIPER BRAKE  1 € 193,24 € 234
ON REQUEST
4 S10-E111200-000-00 FRONT BRAKE PAD ASSY  4 € 119,61 € 145
ON REQUEST
3 S10-E100001-000-01 LEFT BRAKE DISC  2 € 34 € 41
ON REQUEST
2 S10-E100001-000-00 FRONT BRAKE ROTOR  2 € 34 € 41
ON REQUEST

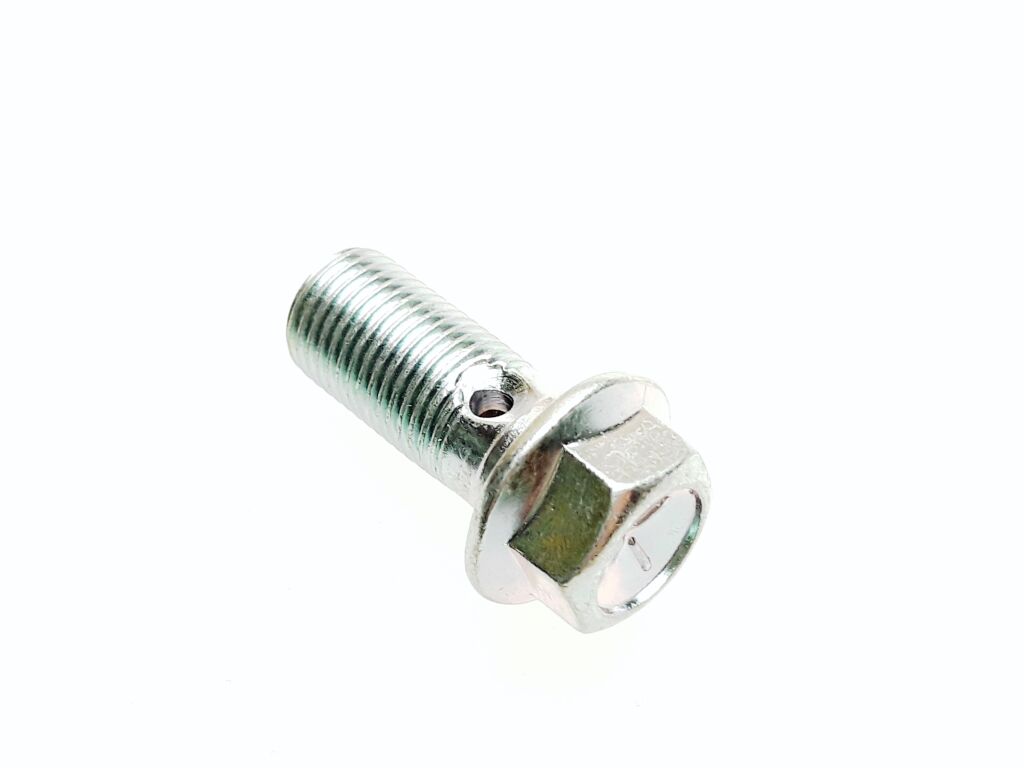

11 BOLT INNER OIL (Item nr. 11) A03E11011001 BOLT INNER OIL  4 € 4,01 € 5
IN STOCK
12 BG03098K48160001 BLIND RIVET 4×16  6
ON REQUEST
Detail
21 S10-E115000-000-00 FOOT BRAKE MAIN PUMP  1 € 51,22 € 62
ON REQUEST
20 U01C00003001 BRAKE MAIN PUMP COVER  1 € 3,73 € 5
ON REQUEST
19 Hexagon flange bolt M8×25 (Item nr. 19) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
IN STOCK
18 T05000001002 BONDI PIPELINE CLAMP  3 € 2,18 € 3
ON REQUEST
17 S10-E118000-000-01 REAR BRAKE PIPE  1 € 92,96 € 112
ON REQUEST
16 WIRE CLIP (Item nr. 16) T05000001003 WIRE CLIP  4 € 2,18 € 3
IN STOCK
15 A12-E110050-000-00 BRAKE SWITCH  1 € 19,69 € 24
ON REQUEST
14 S10-E116000-000-01 FRONT BRAKE PIPE  1 € 144,43 € 175
ON REQUEST

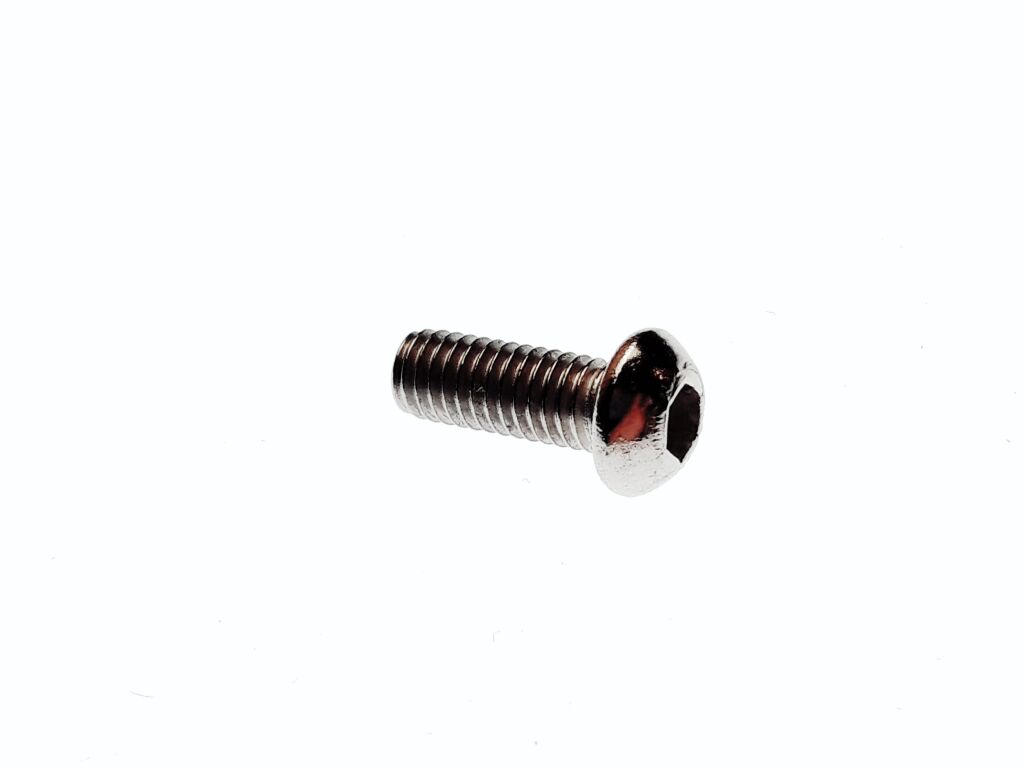

13 SCREW M6×16 (Item nr. 13) GBT000701010 SCREW M6×16  2 € 2,18 € 3
IN STOCK
1 GBT008191003 Countersunk screw M6 × 16  8 € 2,18 € 3
ON REQUEST
Product Code SEGWAY_2_232_SX20T
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX20T
